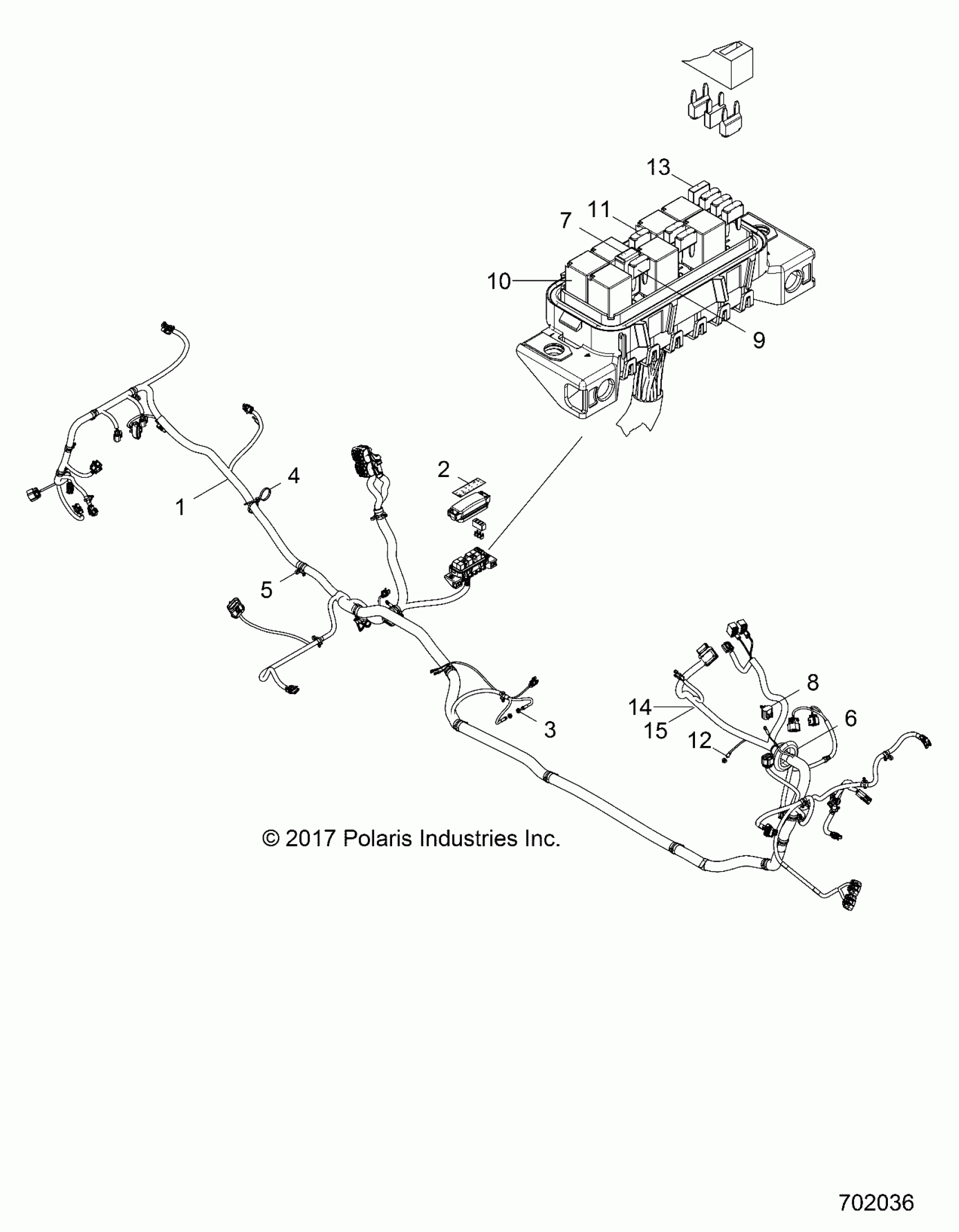

Polaris RZR XP 4 1000 (R09) - Z18VFE99AK/AJ/AW/BK/BJ/BW/LW/K99AK/BK/M99AL ELECTRICAL, WIRE HARNESS - Z18VFK99AK/BK (702036) Diagram

#

Description

Price

1

HARNESS-CHASSIS,RZR,64,CR,MP [INCL. ALL]

2413988

$1,187.99

2

LABEL-FUSE BOX,RZN

7184780

Unavailable

3

CLIP-ROUTING,DIN BOX

7082020

$5.59

4

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

GROMMET-65MM,BLK

5813954

$7.19

7

BREAKER-CIRCUIT,25 AMP

4015771

$63.99

8

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

9

FUSE-25A,MINI BLADE

4011653

$7.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

FUSE-IGNITION,10 AMP

2434016

$4.79

12

LED-PANEL MNT,12V,BLUE

2413217

$51.99

13

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

14

RESISTOR, 5K OHM

2413793

$19.99

15

RESISTOR, 7K OHM

2413792

$19.99
