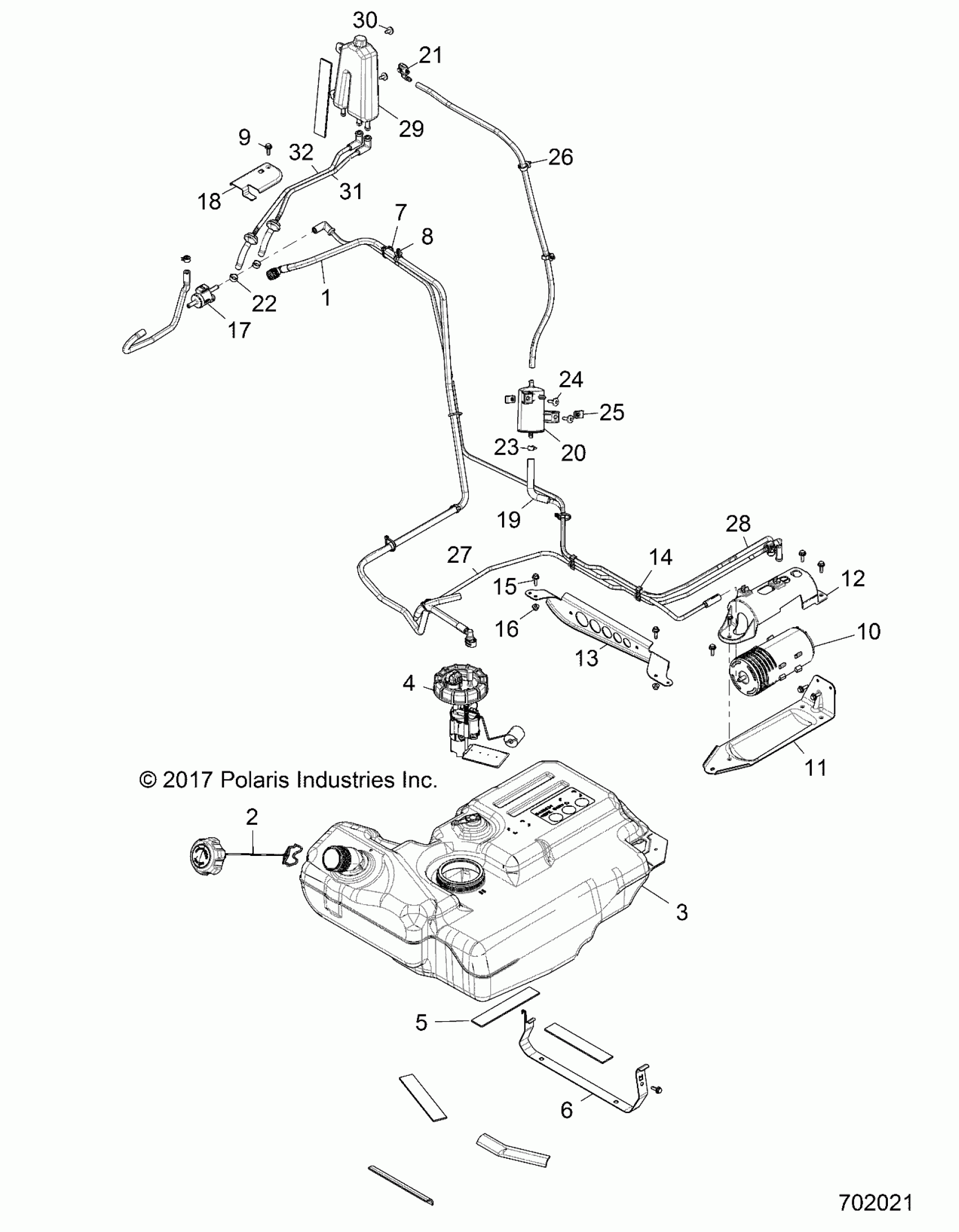

Polaris RZR XP 4 1000 (R09) - Z18VFE99AK/AJ/AW/BK/BJ/BW/LW/K99AK/BK/M99AL BODY, FUEL TANK - Z18VFE99BK/BJ/BW/K99BK (702021) Diagram

#

Description
Price

1

ASM-FUEL LINE

2521837

$109.27

2

CAP-GAS TANK,TETHER

2521910

Unavailable

3

ASM-FUEL TANK [INCL 4]

2521436

$1,149.99

4

KIT, FUEL PUMP

2205502

$469.99

5

PAD-BATTERY

5810290

$7.27

6

STRAP, FUEL TANK, BLK

5259555-329

$24.27

7

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

8

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

9

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

10

CANISTER-ACTIVATED CARBON,BFL

2521893

$114.99

11

BRKT-MNT CANISTER,E-COAT

5263210-329

$36.41

12

BRKT-MNT CANISTER,BLK

5453458-070

$14.56

13

BRKT-MOUNT RACK,ECOAT

5263305-329

$40.46

14

CLIP-TRIPLE

7082246

$6.35

15

SCR-HXFL-M6X1.0X20 8.8 ZPB

7520122

$4.76

16

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

17

VALVE-PURGE

2521758

$69.99

18

BRKT-MNT PURGE VALVE,ECOAT

5264552-329

$24.99

19

ASM-LINE,VENT TO CANISTER

2521716

$99.99

20

FILTER-CANISTER VENT

2521750

$61.10

21

FITTING-VENT LINE,90

5453464

$5.56

22

HOSE CLAMP, RED

7080003

$1.19

23

CLAMP-HOSE, 17/32, GREEN

7081432

$3.97

24

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

25

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.19

26

CLIP-ROUTING,.472 B.D.,HINGED

7670116

$5.56

27

ASM-LINE,TANK TO CANISTER

2521715

$119.99

28

ASM-LINE,CANISTER TO PURGE

2521851

$94.99

29

TANK-EXPANSION

5454286

$84.99

30

SCR-M6X1X16 TR/TX-M

7518936

$3.97

31

ASM-HOSE,CHAMBER TO TB,PTO

2521848

$60.70

32

ASM-HOSE,CHAMBER TO TB,MAG

2521849

$60.70
