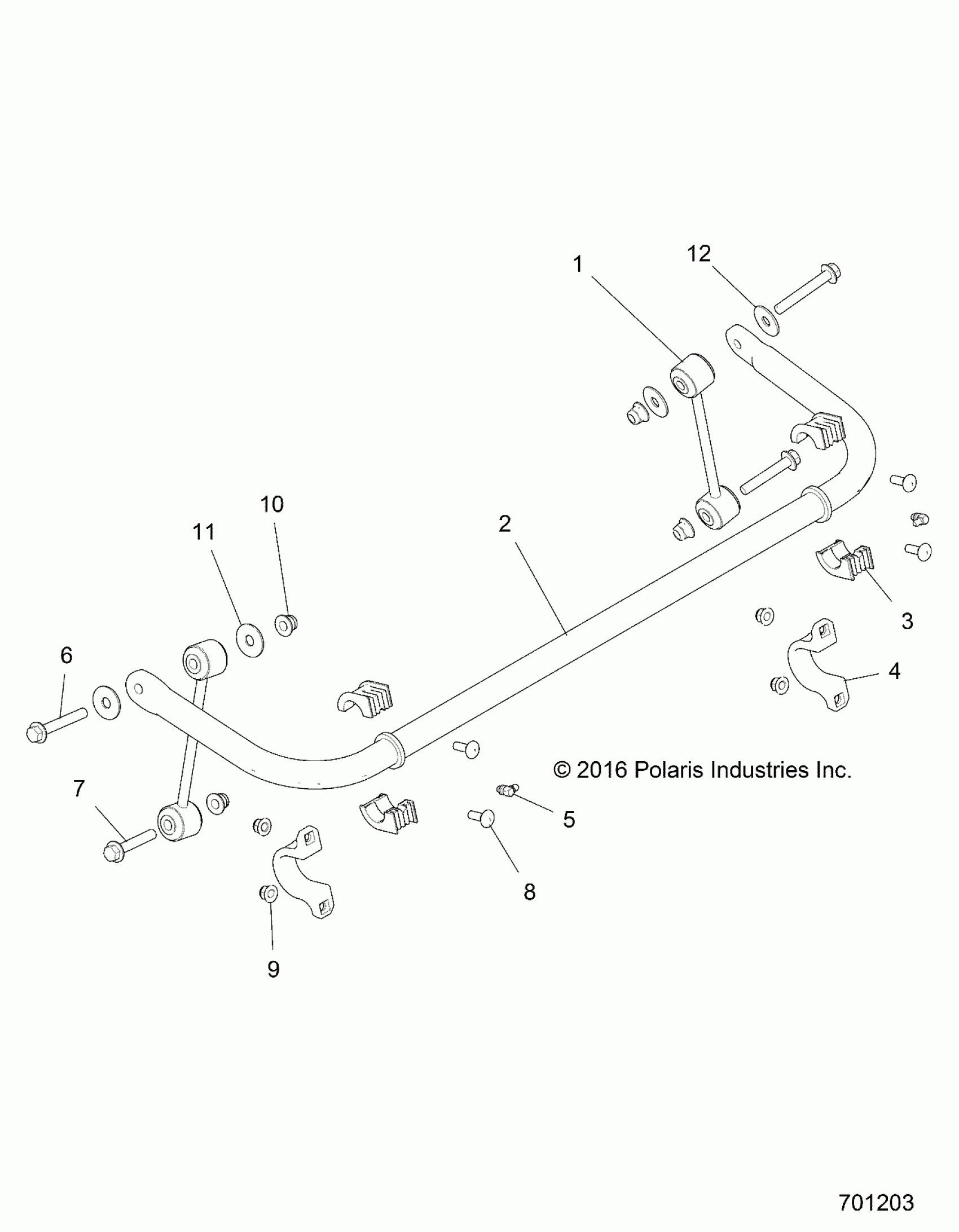

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK SUSPENSION, STABILIZER BAR, REAR - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK (701203) Diagram

#

Description
Price

1

ASM-LINKAGE,STABILIZER BAR,TR

1544194

$80.74

2

BAR-STABILIZER

5337570

$182.13

3

BUSHING-REAR BAR,28.5MM

5450606

$3.97

4

BRACKET, CAP, SWAY BAR

5632497

$40.46

5

FITTING, ZERK

7080510

$5.56

6

BOLT

7518561

$7.14

7

BOLT

7518563

$3.17

8

SCREW, CARRIAGE

7520298

$7.59

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

WASHER, FLAT

7555852

$2.38

12

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98
