SUSPENSION, REAR SHOCK INTERNALS - Z20N4E99AC/AL/AN/BC/BL/BN/K99AF/AK/BF/BK (701950)

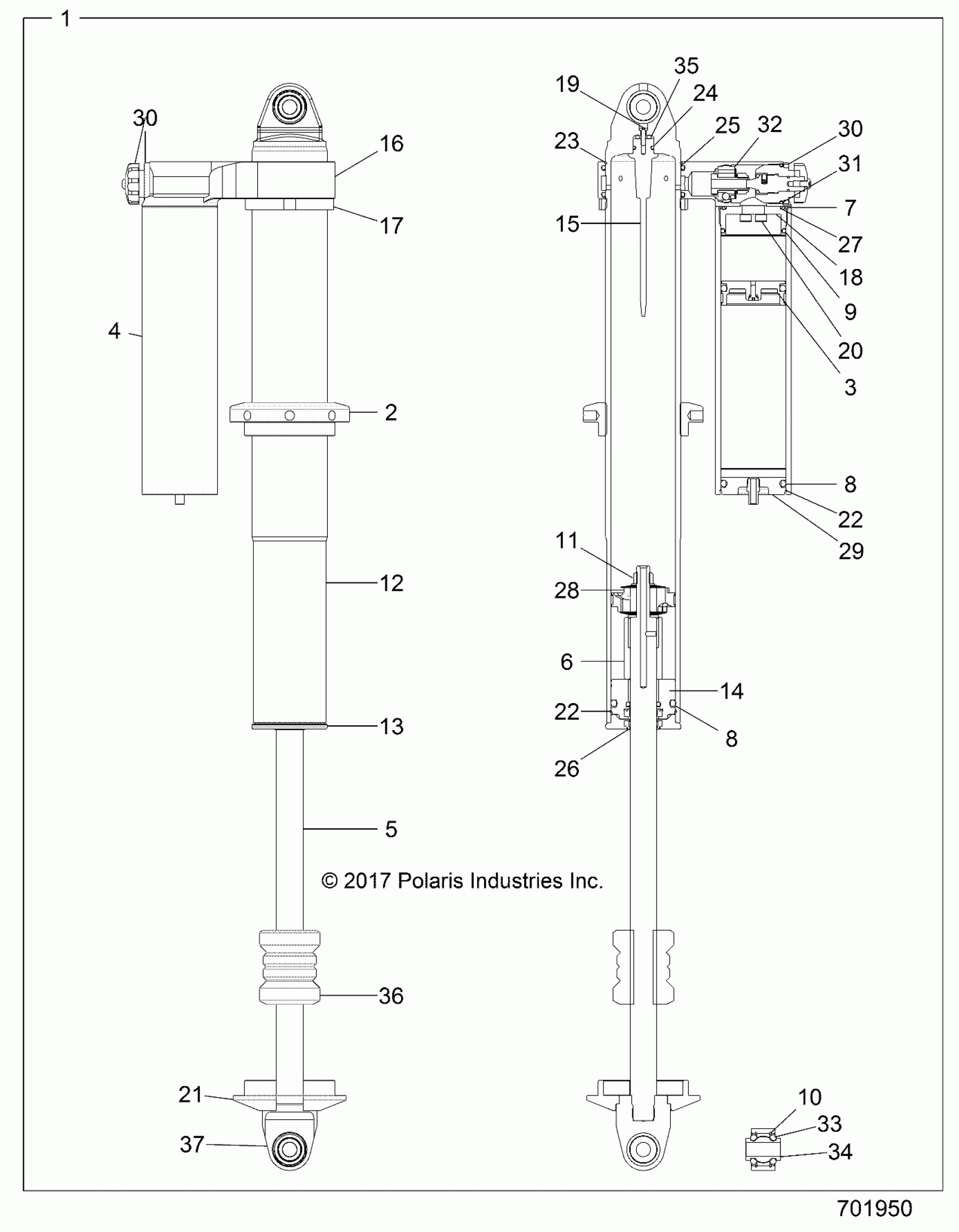

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK SUSPENSION, REAR SHOCK INTERNALS - Z20N4E99AC/AL/AN/BC/BL/BN/K99AF/AK/BF/BK (701950) Diagram
#
Description
Price
1
SHOCK-REAR,MP
7044854
$794.19
2
2.5IN SPRING NUT (CLEAR)
1800836
$96.79
3
RES, PISTON 2.5IN ASM
1800752
$164.59
4
2.5in 9.5L PB RES CAN WR (ANODIZE HARD CLEAR)
1800854
$283.99
5
7/8in CHROME NEEDLE SHAFT 18.295L
1800632
$387.19
6
SPACER, 2.037L
1800657
$27.99
7
O-RING 2-033
1800613
$10.39
8
O-RING 2-327
1800508
$5.59
8
O-RING 2-327
1800508
$5.59
9
O-RING 2-225
1800500
$1.99
10
RING- RETAIN (SNAP)
1800482
$10.39
11
7/16 Ny Lock nut
1800638
$4.79
12
BODY, MONOTUBE 2.5 REAR W NEEDLE HARD CLEAR 21.070L
1800838
$288.41
13
CAP, WIPER,2.5 PRESS FIT 7/8 (CLEAR)
1800855
$47.99
14
ASM. SEAL HEAD 2.5 X .875 PI
1800856
$107.99
15
NEEDLE, 1 PC PRESS IN
1800840
$51.99
16
BRIDGE, 2.5 WER ADJUSTER (CLEAR)
1800841
$268.39
17
2.5IN CROSSOVER RING/ JAM NUT
1800842
$39.59
18
2.5 RES MOUNT
1800488
$83.99
19
#8-32 X .500 LOW HEAD SCREW
1800843
$4.79
20
SCREW, SHCS 1/4-20 X .5"
1800754
$3.19
21
SPRING CLIP
1501007
$79.99
22
Retaining Ring 2.5
1800847
$23.99
22
Retaining Ring 2.5
1800847
$23.99
23
2.48 X .0625 WIRE RING
1800846
$7.19
24
O-RING 2-112
1800095
$1.49
25
O-RING 2-230
1800497
$5.59
26
WIPER 2.5 SH .875 SHAFT
1800641
$31.99
27
O-RING, 2-134
1800502
$1.99
28
Piston Asssembly W/OUT VALVING
1800659
$111.99
29
ASM. END CAP, 2.5 SCHRAEDER
1800844
$119.99
30
ASM. SS RETENTION NUT (GOLD)
1800857
$111.99
31
O-RING 2-122
1800503
$1.59
32
VALVE, CHECK ASM
1800848
$61.59
33
O-RING 2-312
1800810
$3.63
34
BEARING HCOM9T-12MM
1800880
$47.99
35
O-RING -202
1800887
$1.59
36
BUMP STOP, 3.125L
1800889
$47.99
37
9/16 HEIM SHAFTLOOP (Clear)
1800555
$223.99
