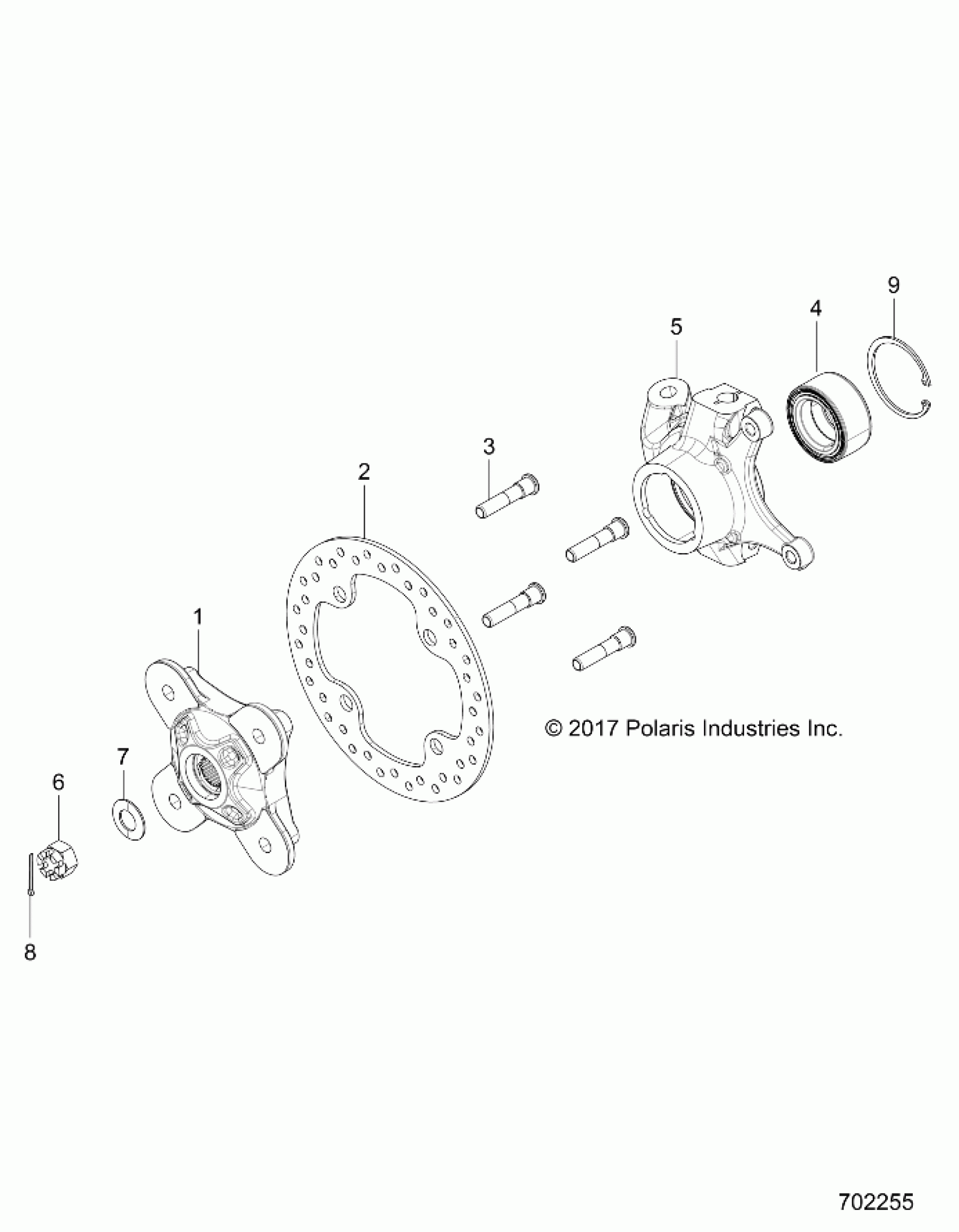

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK SUSPENSION, FRONT CARRIER- Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK (702255) Diagram

#

Description
Price

1

HUB-WHEEL(MACH),BLK

5141353-067

$105.22

2

DISC-BRAKE

5257196

$64.75

3

STUD-WHEEL,M12-1.5

7519792

$5.56

4

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.68

4

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.49

5

KNUCKLE-FRONT,LH(MACH)

5142214

$204.24

5

KNUCKLE-FRONT,RH(MACH)

5142215

$204.24

6

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.98

7

WSHR-AXLE,M18,42X4.5

7557134

$7.94

8

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.76

9

RING-RETAINING,2.835,INTERNAL

7710780

$9.52
