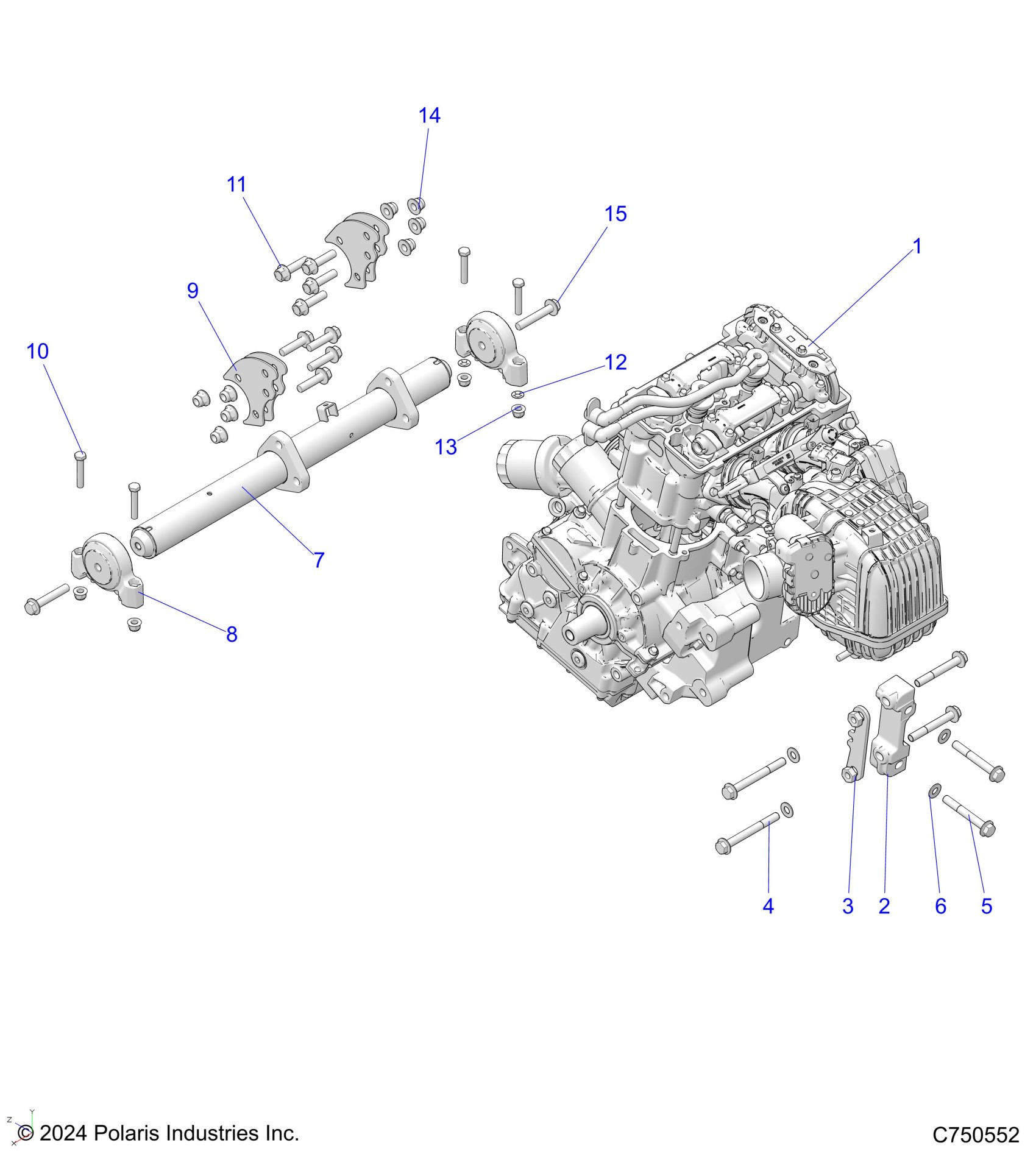

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK ENGINE, MOUNTING & LONG BLOCK- Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK /BF/BK (49RGRENGINEMTG14RZR1000) Diagram

#

Description
Price

1

K-LONG BLOCK 999

2209242

$7,399.99

2

BRKT-TRANSJOINT,MACH

5139904

$52.24

3

NUT, PLATE

5259964

$26.17

4

SCREW

7519043

$9.52

5

SCREW

7519286

$7.14

6

WASHER

7556153

$1.98

7

WELD-MOUNT,ENGINE,E.COAT

1024525-329

$179.11

8

MOUNT-ISOLATOR,DRIVELINE

1332955

$72.84

9

BRACKET, MOUNT, ENGINE

5257952

$32.37

10

SCREW

7519097

$1.59

11

SCREW

7519332

$5.56

12

Nut, Pal

7547030

$4.76

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

BOLT

7518826

$4.76
