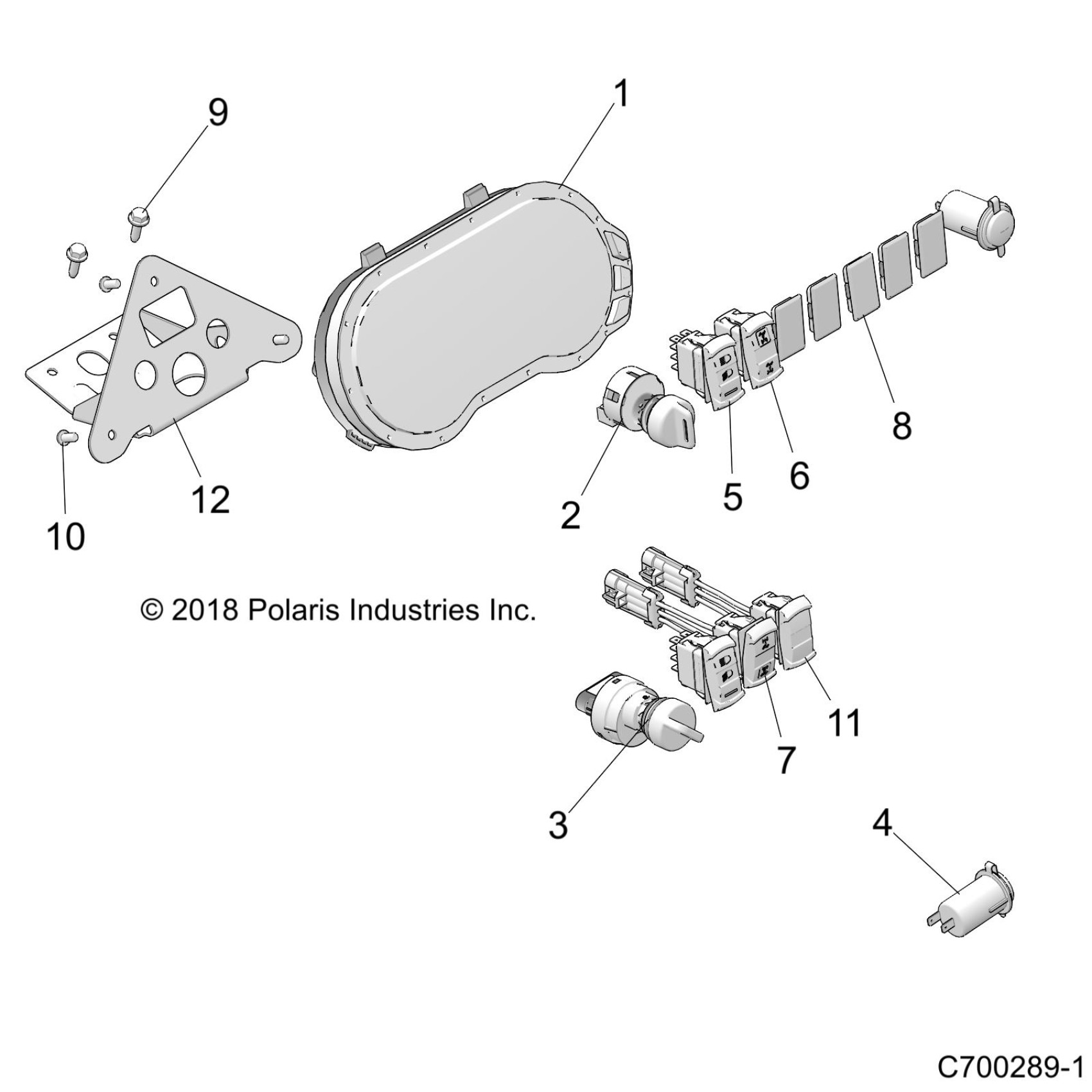

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL (C700289-1) Diagram

#

Description

Price

1

ASM-C4,RZR,RGR,GNRL,256K

3280863

Unavailable

2

SWITCH-KEY,4 POSITION,MT SLV [E99AC][E99AN][E99BC][E99BN][E99AL][E99BL]

4016058

Unavailable

3

SWITCH-KEY,4 POSITION,SEALED [M99AL]

4016135

$47.99

4

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

5

SWITCH, HEADLIGHT

4014069

$87.99

6

SWITCH-AWD [USED ON K99AF,K99BF,K99AK,K99BK]

-------

Unavailable

7

SWITCH, AWD, SEALED

4015034

$87.99

8

COVER-SWITCH,RZT

5453402

Unavailable

9

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

10

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

11

SWITCH-WINCH,SEALED [M99AL]

4015043

$87.99

12

BRKT-C4 GAUGE MOUNT,ECOAT

5264913-329

$61.59
