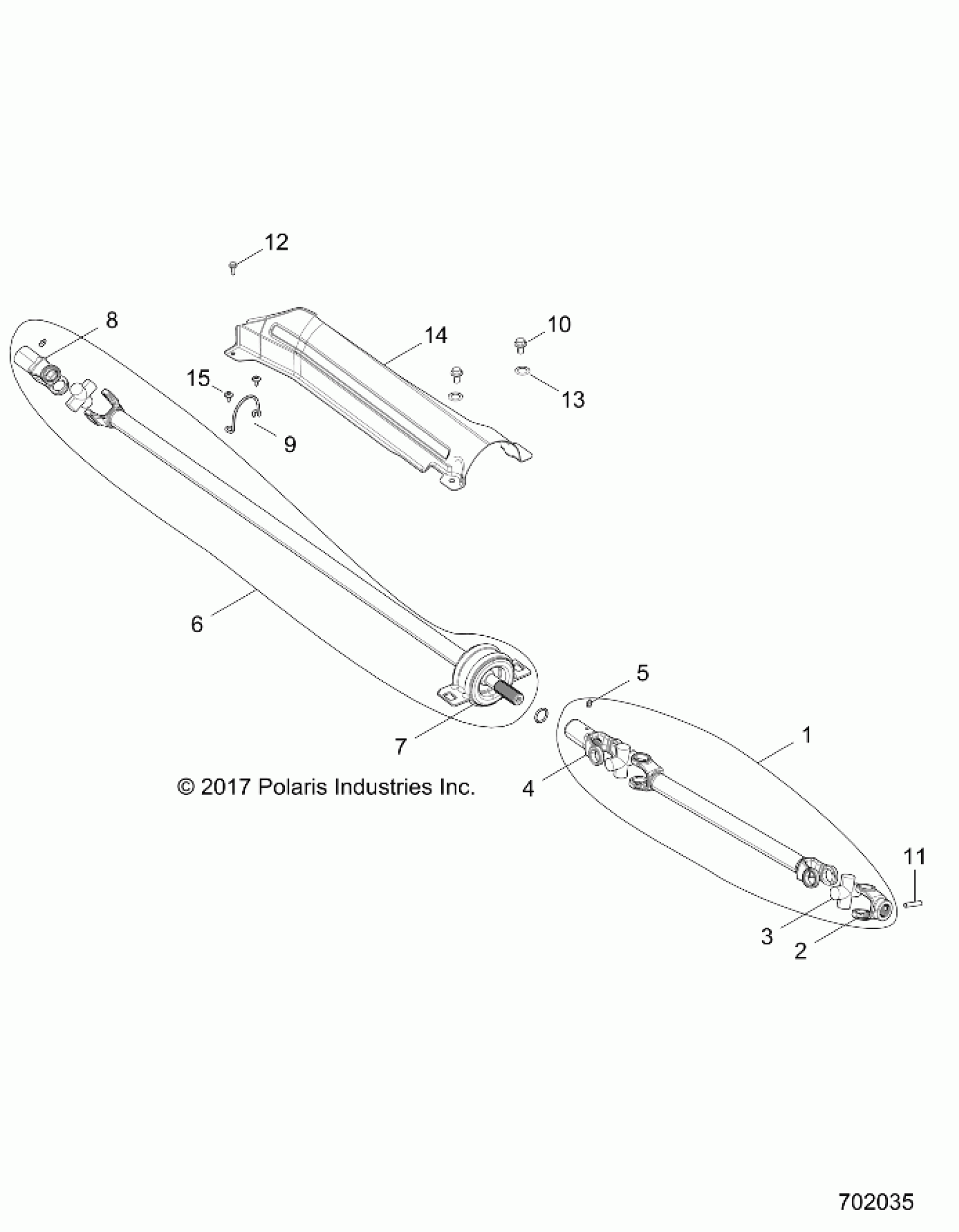

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK DRIVE TRAIN, PROP SHAFT - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK (702035) Diagram

#

Description

Price

1

ASM., PROPSHAFT, FRONT [INCL. 2-5]

1333194

$259.99

2

YOKE-PIN

3235502

$136.39

3

U-JOINT-1000 SERIES

3235500

$67.99

4

YOKE-SLIP,INDEXED

3235503

$131.99

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

ASM., PROPSHAFT, REAR [INCL. 7, 1 QTY OF 3, 1 QTY OF 5,8]

1333424

$304.99

7

ASM-BEARING,FLEX

3515075

$75.99

8

YOKE-SLIP

3235501

$131.99

9

HOOP-PROPSHAFT [M99AL]

5340149

$14.39

10

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

11

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

12

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

13

WASHER, FLAT

7555852

$2.39

14

BRKT-TANK SUPPORT,INNER,ECOAT

5267531-329

$187.99

15

SCR-M6X1X16 TR/TX-M [M99AL]

7518936

$3.99
