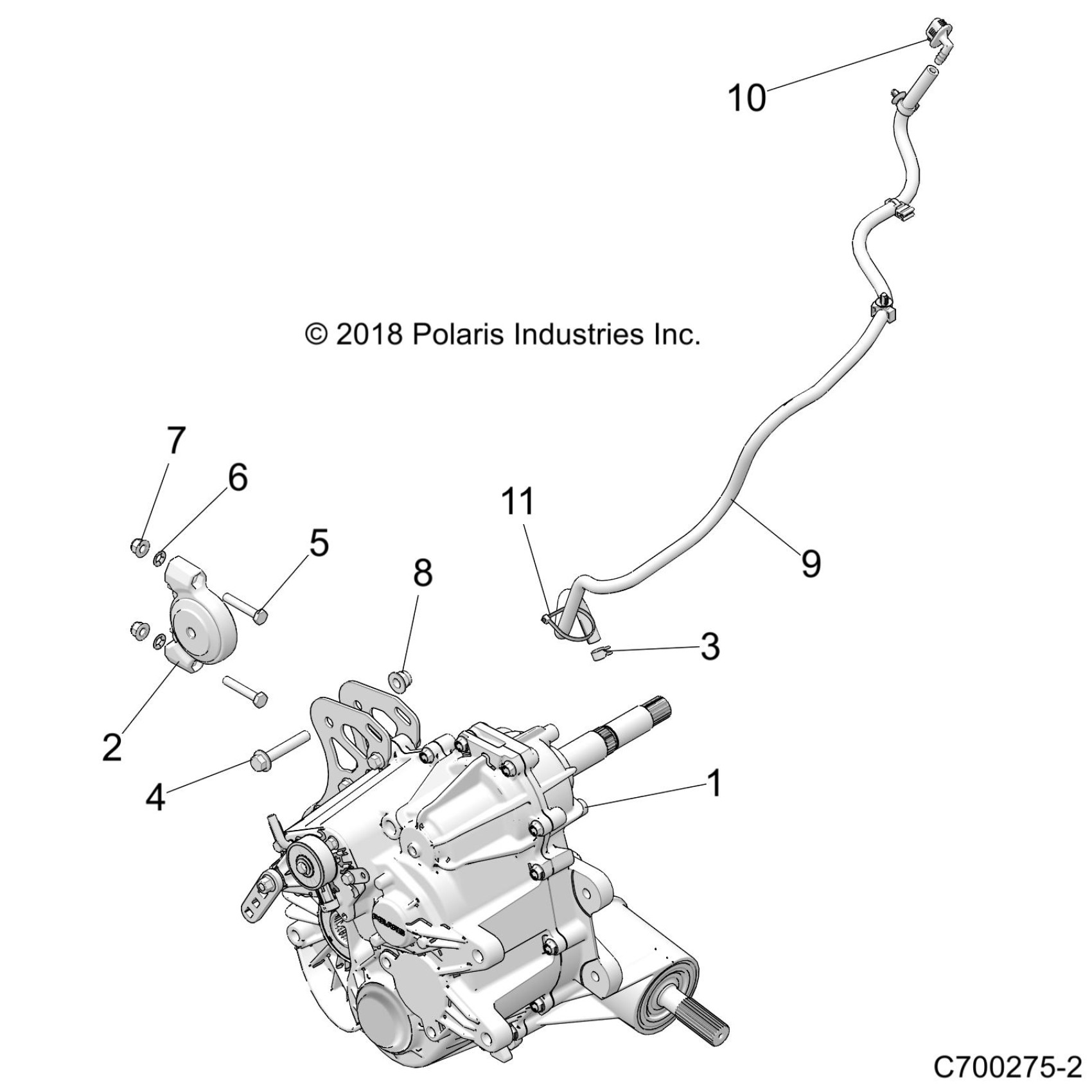

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK DRIVE TRAIN, MAIN GEARCASE MOUNTING - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK (C700275-2) Diagram

CLIP-ROUTING,.472 B.D.,HINGED [NOT ILLUSTRATED]

7670116

$5.59

ASM-GEARCASE,COMPLETE

-------

Unavailable

MOUNT-ISOLATOR,70 DURO

1333242

$83.99

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

BOLT

7518563

$3.19

SCREW

7519097

$1.59

NUT

7547030

$4.79

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

VENT-TRANS,FORMED

2521771

$59.99

FUEL LINE 1/4"SAE #30R7,133CM [M99AL]

8450040-133

$55.99

FITTING-VENT LINE,90 [EXCLUDING M99AL]

5453464

$5.59

FITTING-VENT LINE,90

5454069

$8.79

CABLE-TIE,10-102MM,WEATH.-RES. [QTY 2 M99AL]

7080761

$2.39
