Description

Price

1

ASM-GEARCASE,COMPLETE [INCL ALL]

1334348

$4,078.79

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

5

SCREW, HEX FLANGE M8 X 50

3235207

$10.39

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.19

7

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.99

7

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.99

8

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.99

9

WASHER-CUP

3234091

$9.59

9

WASHER-CUP

3234091

$9.59

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.39

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.39

10

WASHER, 32.3 X 42 X 1.5

3235211

$10.39

11

WASHER, 35.6 X 50 X 1.5

3235212

$13.59

12

WASHER, 22.5 X 30 X 1.5

3236410

$8.79

13

PIN, DOWEL 6 X 20

3234330

$7.19

14

PIN, SPRING, SLOTTED 6X12

7043746

$7.19

15

RING, RETAINING

7710434

$3.99

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

18

RING, SNAP

3233834

$10.39

19

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.39

20

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

22

RING, RETAINING

3234205

$11.19

22

RING, RETAINING

3234205

$11.19

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

24

RING, RETAINING VSH-237

3235216

$10.39

25

SHAFT, INPUT, 45T/20T/25T

3235953

$179.99

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

27

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

28

SHIM, 1.180 OD X .995 ID

3234272

$31.99

29

SHIM, 2.040 OD X 1.63 ID

3234273

$12.79

30

SPACER, 19.4 X 34.0 X 2.0

3235883

$23.99

31

BEARING, NEEDLE

3233014

$43.99

31

BEARING, NEEDLE

3233014

$43.99

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING, NEEDLE, CAGE ASSY

3233384

$31.99

37

BEARING, BALL 6012 C3 60X95X18

3235218

$59.99

38

BEARING, BALL 6303 17X47X14

3234652

$15.99

38

BEARING, BALL 6303 17X47X14

3234652

$15.99

39

BEARING, BALL 6206RSH2 STD 30X62X16

3235496

$31.99

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

41

SPRING, COMPRESSION, .46 I.D. X .73

3234089

$23.99

41

SPRING, COMPRESSION, .46 I.D. X .73

3234089

$23.99

42

SPRING, COMPRESSION, DETENT

3234578

$12.79

43

SPRING, TORSION

3235885

$19.99

44

SPRING, WASHER

3235327

$9.59

45

TUBE, SNORKEL MACH

3234278

$95.99

46

COVER, SECTOR GEARS MACH

3235954

$147.99

47

GEAR, SECTOR 16T

3233839

$31.99

48

GEAR-SECTOR,31T

3233832

$31.99

49

PLATE, PARK 12-FACE

3235456

$35.99

50

STAR, DETENT

3235982

$31.99

51

SHAFT, IDLER 29T

3235223

$107.99

52

SHAFT, REVERSE 29T

3235224

$143.99

53

SHAFT, FRONT OUTPUT

3236439

$131.99

54

BELLCRANK, 92 DEGREE

3235227

$23.99

55

COLLAR-SHIFT

3234073

$31.99

56

TUBE, VENT, 90 -1/4" HOSE

3234230

$9.59

57

GEAR-44T,STAGE2

3235229

$87.99

58

GEAR, LOW 67T

3235232

$115.99

59

ENGAGEMENT DOG, 6-FACE

3235233

$119.99

60

GEAR, 46T STAGE 3

3235236

$103.99

61

SHAFT-SHIFT(352973)

3235238

$37.61

62

GEAR, 49T

3235396

$123.99

63

SHIFT DOG, PARK

3235457

$135.99

64

RAIL, SHIFT SHAFT

3235542

$27.99

65

SPROCKET 48T, 6-FACE

3235762

$107.99

66

CAM, PARK

3235983

$151.99

67

DRUM, SHIFT MACH

3235984

$263.99

68

GEAR, 13T SNORKEL

3236412

$135.99

69

WELDMENT, REAR MOUNT BRACKET

3235558

$53.24

70

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$31.99

71

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

71

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

72

SUBASSEMBLY, OUTPUT

3235955

$330.21

73

SUBASSEMBLY, PINION

3235956

$319.99

74

SUBASSEMBLY, RH COVER

3235957

$480.30

75

SUBASSEMBLY, LH CASE

3236544

$523.59

76

COVER-BEARING,CNTR DR.

3235241

$43.99

77

BRACKET, REAR MOUNT

3235559

$39.99

78

CHAIN SILENT, TYPE 103, .25P X .48W X 58L

3235633

$251.99

79

SENSOR-SPEED,TRANS

4013908

Unavailable

80

SWITCH, ROTARY, 2 PIN RESISTIVE

7662299

$111.99

81

PLUG, M18 X 1.5

3234755

$27.99

82

SEAL, TRIPLE LIP, VITON HELIX 30X47

3235495

$39.99

83

SEAL, TRIPLE LIP, VITON 25X80X10

3235658

$55.99

84

O-RING

3234302

$7.19

85

O-RING, -012 VITON

3233836

$6.87

86

O-RING, -014 VITON

3233828

$6.79

87

SEAL, TRIPLE LIP, VITON 40X70X7

3235052

$31.99

87

SEAL, TRIPLE LIP, VITON 40X70X7

3235052

$31.99

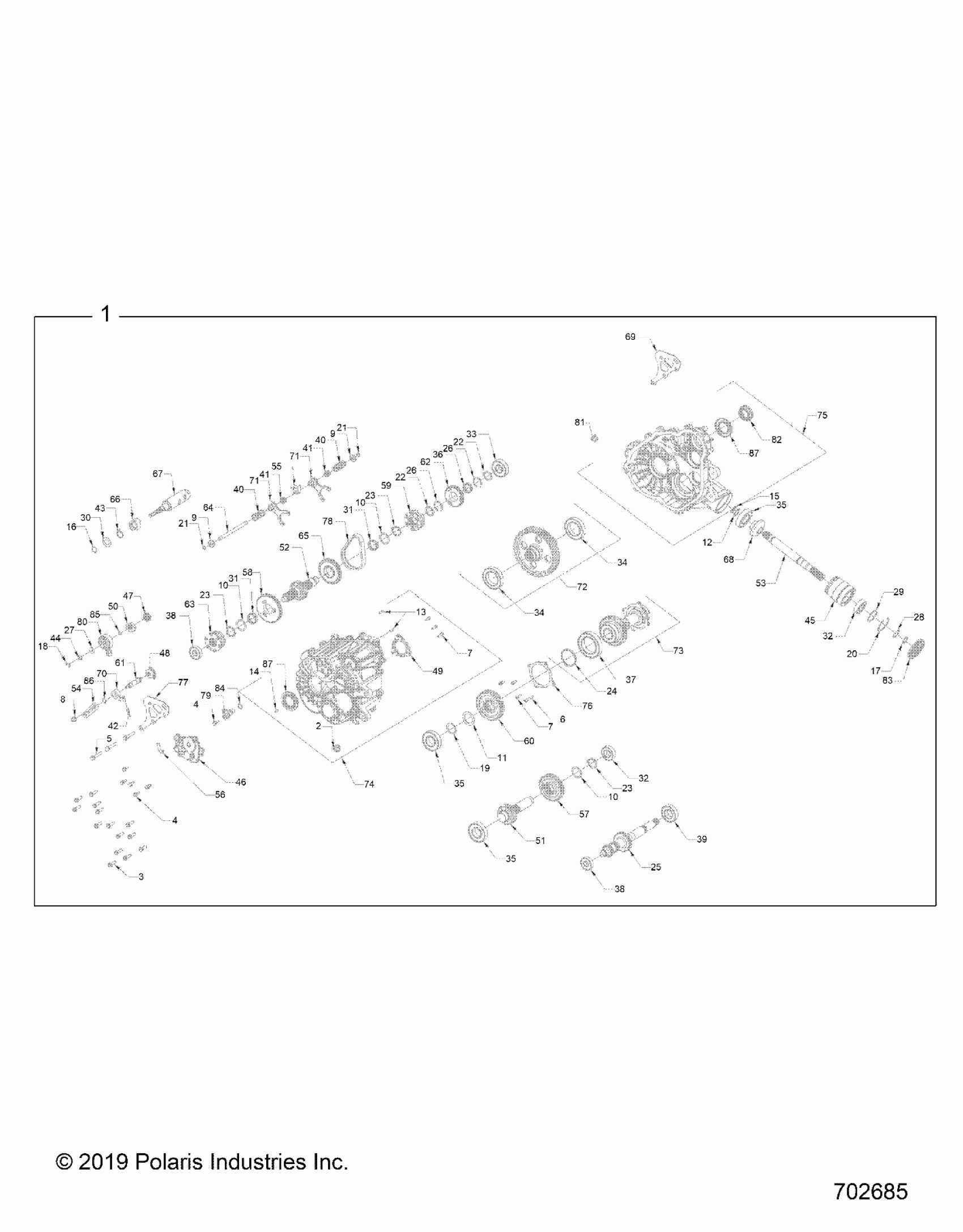

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z20N4M99AL (702685) Diagram

ASM-GEARCASE,COMPLETE [INCL ALL]

PLUG, M18 X 1.5 MAGNETIC

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

SCREW, HEX FLANGE M8 X 50

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

WASHER-CUP

WASHER-CUP

WASHER, 32.3 X 42 X 1.5

WASHER, 32.3 X 42 X 1.5

WASHER, 32.3 X 42 X 1.5

WASHER, 35.6 X 50 X 1.5

WASHER, 22.5 X 30 X 1.5

PIN, DOWEL 6 X 20

PIN, SPRING, SLOTTED 6X12

RING, RETAINING

RING,RETAINING BASIC,EXTERNAL 0.75

RING,RETAINING BASIC,EXTERNAL 0.984

RING, SNAP

RING, RETAINING SHAFT, DIA. 1.375

RING,RETAINING BASIC,INTERNAL 2.047

RING,RETAINING BASIC,EXTERNAL 0.428

RING,RETAINING BASIC,EXTERNAL 0.428

RING, RETAINING

RING, RETAINING

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING, RETAINING VSH-237

SHAFT, INPUT, 45T/20T/25T

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,0.446 X 0.88 X 0.025

SHIM, 1.180 OD X .995 ID

SHIM, 2.040 OD X 1.63 ID

SPACER, 19.4 X 34.0 X 2.0

BEARING, NEEDLE

BEARING, NEEDLE

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING, NEEDLE, CAGE ASSY

BEARING, BALL 6012 C3 60X95X18

BEARING, BALL 6303 17X47X14

BEARING, BALL 6303 17X47X14

BEARING, BALL 6206RSH2 STD 30X62X16

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING, COMPRESSION, .46 I.D. X .73

SPRING, COMPRESSION, .46 I.D. X .73

SPRING, COMPRESSION, DETENT

SPRING, TORSION

SPRING, WASHER

TUBE, SNORKEL MACH

COVER, SECTOR GEARS MACH

GEAR, SECTOR 16T

GEAR-SECTOR,31T

PLATE, PARK 12-FACE

STAR, DETENT

SHAFT, IDLER 29T

SHAFT, REVERSE 29T

SHAFT, FRONT OUTPUT

BELLCRANK, 92 DEGREE

COLLAR-SHIFT

TUBE, VENT, 90 -1/4" HOSE

GEAR-44T,STAGE2

GEAR, LOW 67T

ENGAGEMENT DOG, 6-FACE

GEAR, 46T STAGE 3

SHAFT-SHIFT(352973)
