BRAKES, BRAKE LINES AND MASTER CYLINDER - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK (702022)

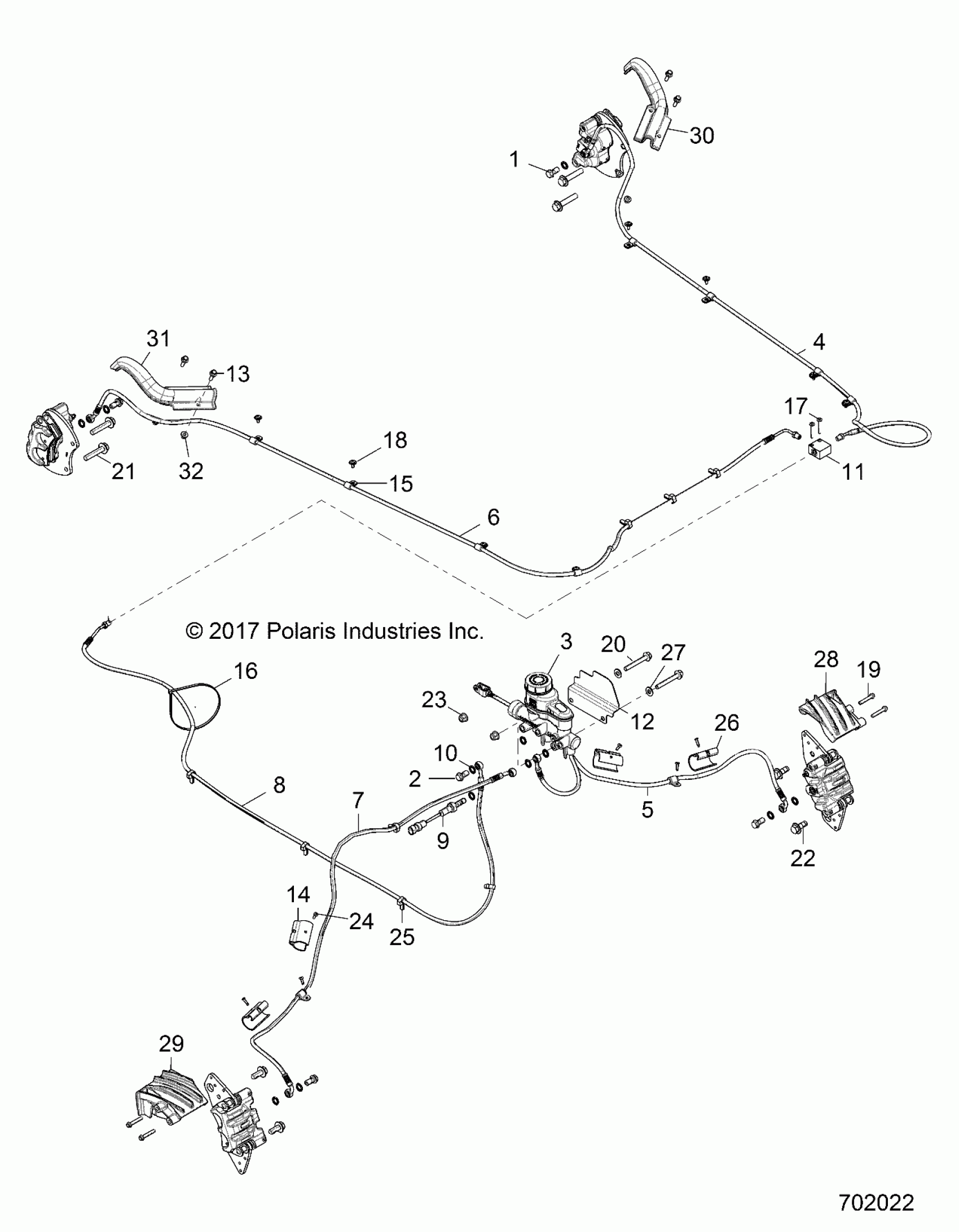

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK BRAKES, BRAKE LINES AND MASTER CYLINDER - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK (702022) Diagram
#
Description
Price
1
BOLT, BANJO
1910499
$5.59
2
BOLT-BANJO, 10MM X 1.25-6G
1910958
$7.99
3
ASM., TANDEM MASTER CYLINDER
1911982
$131.99
4
LINE, BRAKE, RL
1912000
$99.99
5
LINE-BRK,FL,31.9,20B,90SB,180�
1912880
$63.99
6
LINE, BRAKE, REAR
1912061
$99.99
7
LINE-BRK,FR,44.4,70B,90SB,180�
1912881
$87.99
8
LINE, BRAKE, MC/T
1912165
$95.99
9
SWITCH, BRAKE, DOUBLE, SEALED
4014225
$87.99
10
SEAL, STAT
5413212
$4.79
11
FITTING-TEE,BRAKE
7052293
$59.99
12
SHIELD, MASTER CYLINDER
5259049
$43.99
13
SCR-HXFL-M6X1.0X20 8.8 RIE
7519121
$3.99
14
CLIP, BRAKE LINE
5451487
$3.19
15
CLAMP-WIRE/TUBE .25 DIA
7081246
$1.49
16
CLIP-NYLON,C,FIR-TREE
7662310
$4.79
17
SCREW
7512025
$4.79
18
SCREW
7518176
$4.79
19
SCR-HXFL,M6X1.0X35,W/PATCHLOK
7519280
$4.79
20
SCREW
7519298
$3.99
21
BOLT, HEX FLANGE
7518559
$5.59
22
BOLT, HEX FLANGE W/PATCH
7518760
$9.59
23
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
24
Rivet
7621323
$1.49
25
Clip
7670102
$2.39
26
CLIP, BRAKE LINE, INNER
5451488
$5.59
27
WASHER
7555954
$4.79
28
SCRAPER,RZR,1K,FRONT,LH
5633827
$35.99
29
SCRAPER,RZR,1K,FRONT,RH
5633828
$35.99
30
GUIDE,RZR,XP,REAR,LH
5454095
$31.99
31
GUIDE,RZR,XP,REAR,RH
5454096
$31.99
32
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
