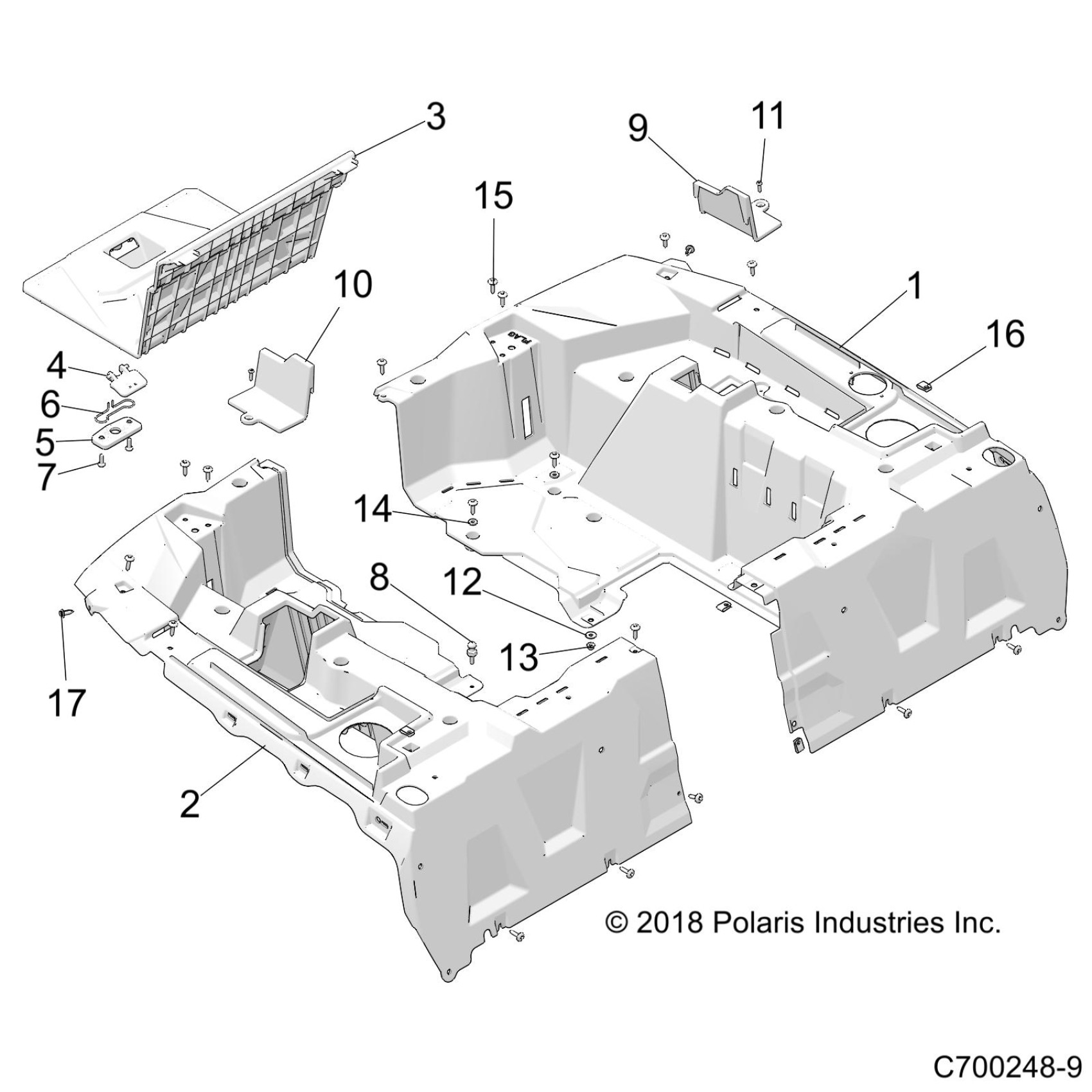

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK BODY, REAR RACK - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK (C700248-9) Diagram

BOX-REAR,LH [E99AC][E99AN][E99BC][E99BN][E99AL][E99BL][K99AF][K99AK][K99BF][K99BK]

5454272

$247.99

BOX-REAR,LH [M99AL]

5454271

$239.99

BOX-REAR,RH

5454270

$239.99

ASM-PANEL-BOX,ACCESS [INCL. 4-7, DECAL]

2637425

Unavailable

HANDLE-SEAT BASE LATCH

5437121

$4.84

LATCH-COVER PLATE,BLK

5450510-070

$4.79

SPRING-LATCH,SEAT

7081466

$39.99

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.99

PLUNGER, BOX LATCH

5139009

$13.59

COVER, PLASTIC, REAR ROP, LH, BLACK [M99AL]

5451622-070

$11.19

COVER PLASTIC,REAR ROP,LH,BLK [E99AC][E99AN][E99BC][E99BN][E99AL][E99BL][K99AF][K99AK][K99BF][K99BK]

5453087-070

$5.59

COVER, PLASTIC, REAR ROP, LH, BLACK [M99AL]

5451622-070

$11.19

COVER PLASTIC,REAR ROP,LH,BLK [E99AC][E99AN][E99BC][E99BN][E99AL][E99BL][K99AF][K99AK][K99BF][K99BK]

5453087-070

$5.59

COVER, PLASTIC, REAR ROP, RH, BLACK

5451623-070

$11.19

SCREW

7512026

$1.49

Washer, Flat

7555859

$1.49

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

WASHER, NYLON

7555916

$1.59

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

NUT, U-TYPE

7547674

Unavailable

Rivet

7661855

Unavailable
