- RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK
BODY, DOORS, REAR - Z20N4E99AL/BL/M99AL (C700285-2)

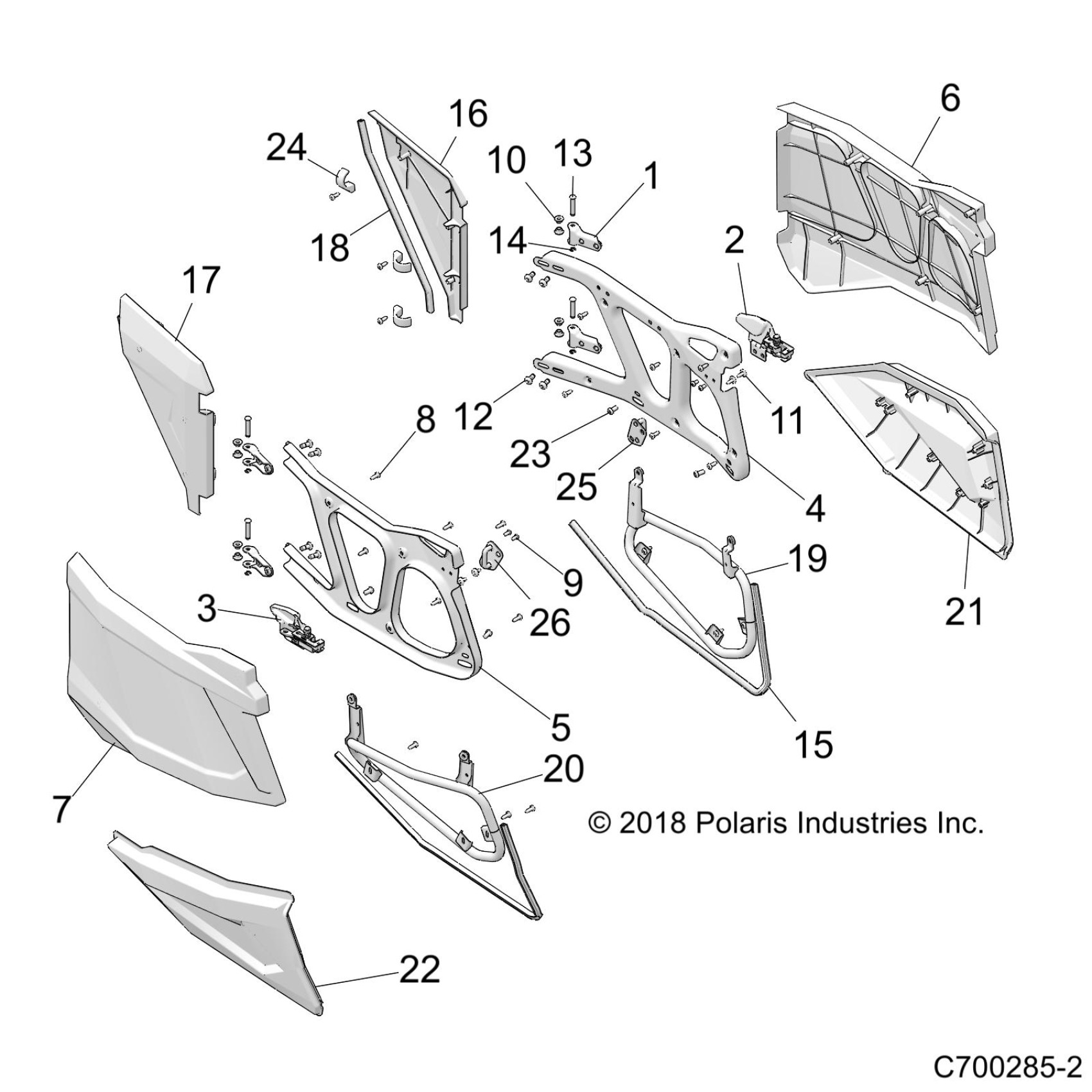

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK BODY, DOORS, REAR - Z20N4E99AL/BL/M99AL (C700285-2) Diagram
#
Description
Price
1
DOOR, HINGE
5258008
Unavailable
2
ASM-LATCH,DOOR,LH [TO 7/15/19]
2637180
Unavailable
2
ASM-LATCH,DOOR,LH [FROM 7/15/19]
2637286
$71.99
3
ASM-LATCH,DOOR,RH [TO 7/15/19]
2637181
Unavailable
3
ASM-LATCH,DOOR,RH [FROM 7/15/19]
2637287
$71.99
4
FRAME, DOOR, REAR, LH, MATTE BLACK
5260413-458
$147.99
5
FRAME, DOOR, REAR, RH, MATTE BLACK
5260414-458
$159.99
6
SKIN, DOOR, REAR ,LH, MP
5450892
$63.99
7
SKIN, DOOR, REAR ,RH, MP
5450893
$63.99
8
SCREW
7519045
Unavailable
9
SCREW
7519063
$3.99
10
BUSHING, DOOR PIVOT
5450592
$2.39
11
SCREW
7518936
$3.99
12
SCREW
7519997
$3.99
13
PIN, DOOR HINGE
7662138
$4.79
14
E-CLIP,M6, DIN 6799
7710466
$3.19
15
SEAL-WTHRSTRP,RR,LWR,DR,RZN
5522024-828
$51.99
16
ASM-BOLSTER,LH [INCL 18]
2635693
$79.99
17
ASM-BOLSTER,RH [INCL 18]
2635694
$79.99
18
SEAL-WTHRSTRP,BOLSTER,RZN
5522024-450
$43.99
19
WELD-MNT,LWR DR INJ,LH RR,RZN4
1020186
$147.99
20
WELD-MNT,LWR DR INJ,RH RR,RZN4
1020187
$147.99
21
PNL-LWR DR INJ,LH RR,RZN4
5450973
$63.99
22
PNL-LWR DR INJ,RH RR,RZN4
5450974
$63.99
23
SCR-HXBH-M8X1.25X16 10.9 ZPB
7517484
$4.79
24
BRKT-J MOUNT,INJ,RZN
5451472
$15.99
25
STRIKER, LH
1021237
$39.99
26
STRIKER, RH
1021238
$39.99
