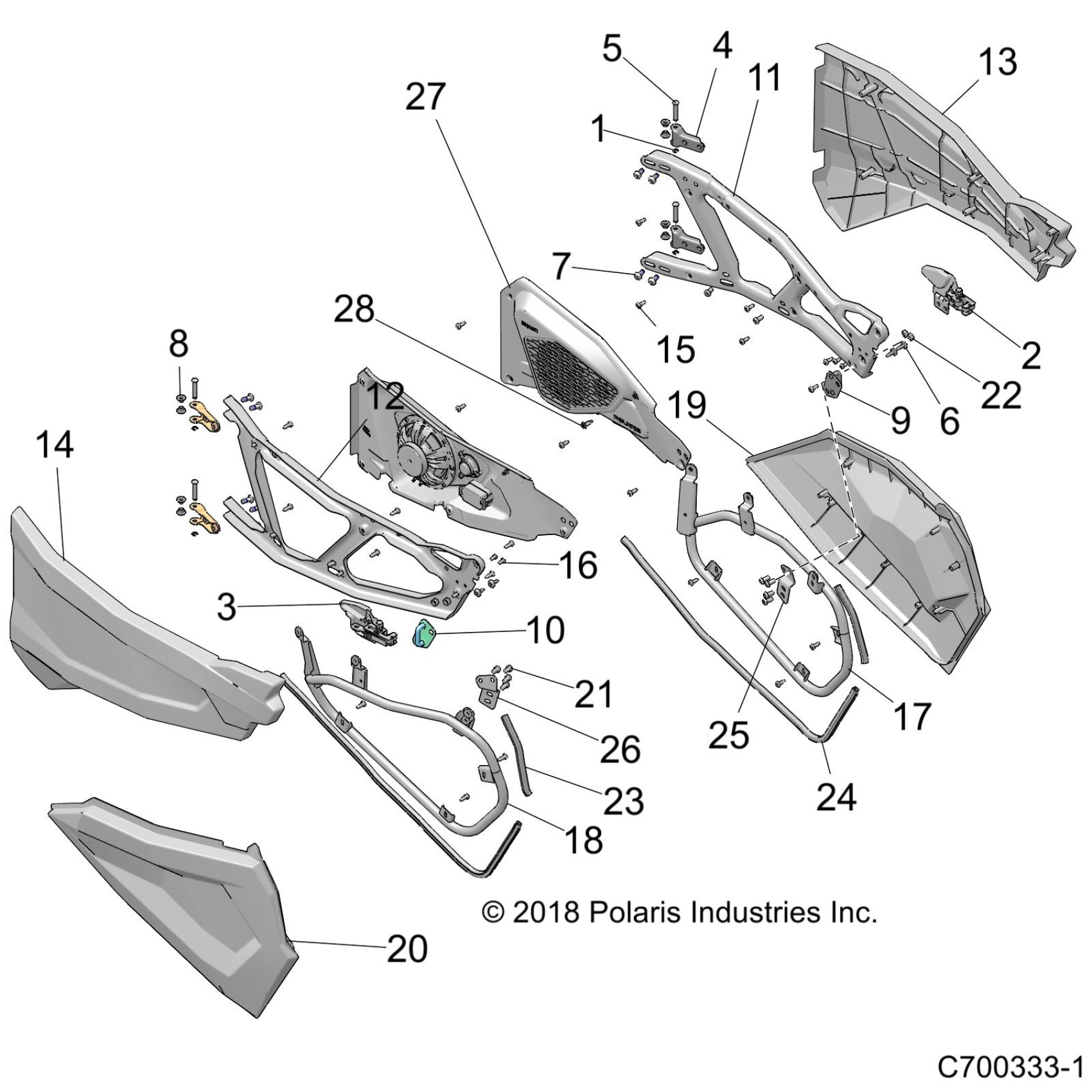

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK BODY, DOORS, FRONT - Z20N4K99AF/AK/BF/BK (C700333-1) Diagram

#

Description
Price

1

E-CLIP,M6, DIN 6799

7710466

$3.17

2

ASM-LATCH,DOOR,LH [TO 7/15/19]

2637180

$90.24

2

ASM-LATCH,DOOR,LH [FROM 7/15/19]

2637286

$90.24

3

ASM-LATCH,DOOR,RH [TO 7/15/19]

2637181

$90.24

3

ASM-LATCH,DOOR,RH [FROM 7/15/19]

2637287

$90.24

4

BRACKET, DOOR HINGE

5258008

$28.32

5

PIN, DOOR HINGE

7662138

$4.76

6

SCREW

7519112

$3.17

7

SCREW

7519997

$3.97

8

BUSHING, DOOR PIVOT

5450592

$2.38

9

STRIKER, LH

1021237

$39.68

10

STRIKER, RH

1021238

$39.68

11

FRAME, DOOR, LH, BLACK

5257929-458

$157.84

12

FRAME, DOOR, RH, BLACK

5257930-458

$157.84

13

DOOR SKIN, LH

5450636

$151.99

14

DOOR SKIN, RH

5450638

$151.99

15

SCREW

7519045

Unavailable

16

SCREW

7519063

$3.99

17

WELD-MOUNT,DOOR,LOWER,LH,RZN

1019994

$135.54

18

WELD-MOUNT,DOOR,LOWER,RH,RZN

1019999

$132.99

19

PANEL-DOOR,PLASTIC,LWR,LH,RZN

5450616

$139.99

20

PANEL-DOOR,PLASTIC,LWR,RH,RZN

5450617

$139.99

21

SCR-HXBH-M8X1.25X16 10.9 ZPB

7517484

Unavailable

22

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

23

SEAL-WTHRSTRP,LWR,DR,RZN

5522024-180

$24.27

24

SEAL-WTHRSTRP,LWR,DR,RZN

5522024-837

$44.51

25

MOUNT-LWR DOOR,LH,RZN

5258254

$39.99

26

MOUNT-LWR DOOR,RH,RZN

5258255

$39.99

27

ASM-SPEAKER,DOOR,PANEL,LH,RZT

2636268

$309.99

27

ASM-SPEAKER,DOOR,PANEL,RH,RZT

2636269

$309.99

28

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19
