Partiron

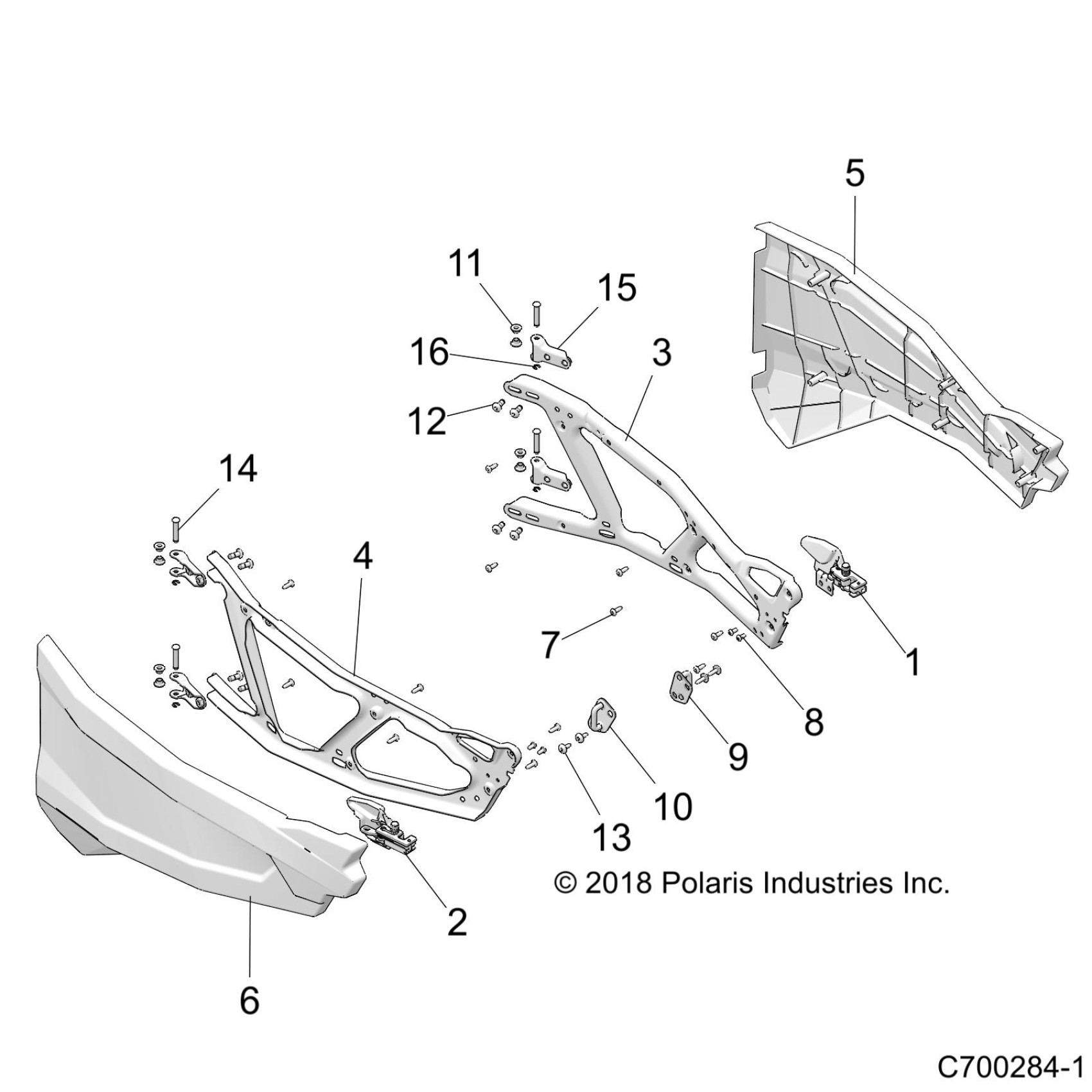

Polaris RZR XP 4 1000 (R03) - Z20N4E99AC/AL/AN/BC/BL/BN/M99AL/K99AF/AK/BF/BK BODY, DOORS, FRONT - Z20N4E99AC/AN/BC/BN (C700284-1) Diagram

#

Description
Price

1

ASM-LATCH,DOOR,LH [TO 7/15/19]

2637180

$90.24

1

ASM-LATCH,DOOR,LH [FROM 7/15/19]

2637286

$90.24

2

ASM-LATCH,DOOR,RH [TO 7/15/19]

2637181

$90.24

2

ASM-LATCH,DOOR,RH [FROM 7/15/19]

2637287

$90.24

3

FRAME, DOOR, LH, BLACK

5257929-458

$157.84

4

FRAME, DOOR, RH, BLACK

5257930-458

$157.84

5

DOOR SKIN, LH

5450636

$151.99

6

DOOR SKIN, RH

5450638

$151.99

7

SCREW

7519045

$3.17

8

SCREW

7519063

$3.99

9

STRIKER, LH

1021237

$39.68

10

STRIKER, RH

1021238

$39.68

11

BUSHING, DOOR PIVOT

5450592

$2.38

12

SCREW

7519997

$3.97

13

SCREW

7519112

$3.17

14

PIN, DOOR HINGE

7662138

$4.76

15

BRACKET, DOOR HINGE

5258008

$28.32

16

E-CLIP,M6, DIN 6799

7710466

$3.17
