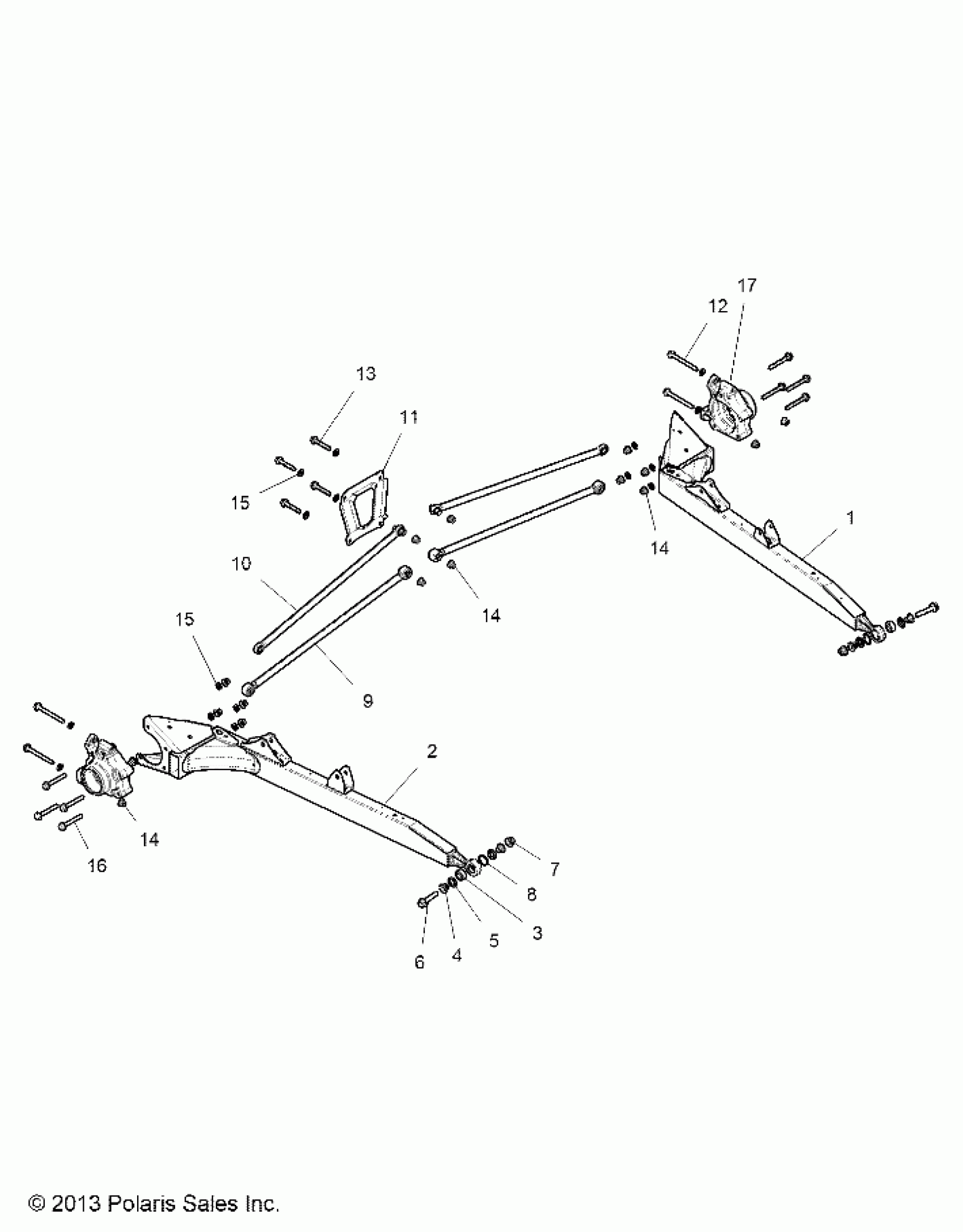

Polaris RZR XP 4 1000/PS - Z146T1EAM/EAW SUSPENSION, REAR CONTROL ARMS - Z146T1EAM/EAW (49RGRSUSPRR14RZR1000) Diagram

ARM, TRAILING, LH, INDY RED [AW]

1019356-293

$493.79

ARM, TRAILING, LH, ORANGE MADNESS [AM]

1019356-589

$493.79

ARM, TRAILING, RH, INDY RED [AW]

1019357-293

$493.79

ARM, TRAILING, RH, ORANGE MADNESS [AM]

1019357-589

Unavailable

BEARING, SPHERICAL

3514689

$39.68

BUSHING, REDUCER

5336751

$6.35

O-RING

5414198

$1.21

SCREW

7519138

$9.52

NUT, FLANGE, NYLOK

7547334

$4.76

RING, RETAINER

7710437

$3.17

ASM., RADIUS ROD, BOTTOM, ORANGE MADNESS [AM]

1543204-589

$182.13

ASM., RADIUS ROD, BOTTOM, INDY RED [AW]

1543204-293

Unavailable

ASM., RADIUS ROD, INDY RED [AW]

1543377-293

Unavailable

ASM., RADIUS ROD, ORANGE MADNESS [AM]

1543377-589

$133.56

PLATE, REAR, BOLT BRACE, ORANGE MADNESS [AM]

5257198-589

$94.99

PLATE, REAR, BOLT BRACE, INDY RED [AW]

5257198-293

$109.99

SCREW

7519284

$3.97

SCREW

7519306

$5.56

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER

7556153

$1.98

WASHER

7556153

$1.98

SCREW

7519286

$7.14

CARRIER, BEARING, WHEEL, LH

5138415

$218.56

CARRIER, BEARING, WHEEL, RH

5138416

$218.56
