Partiron

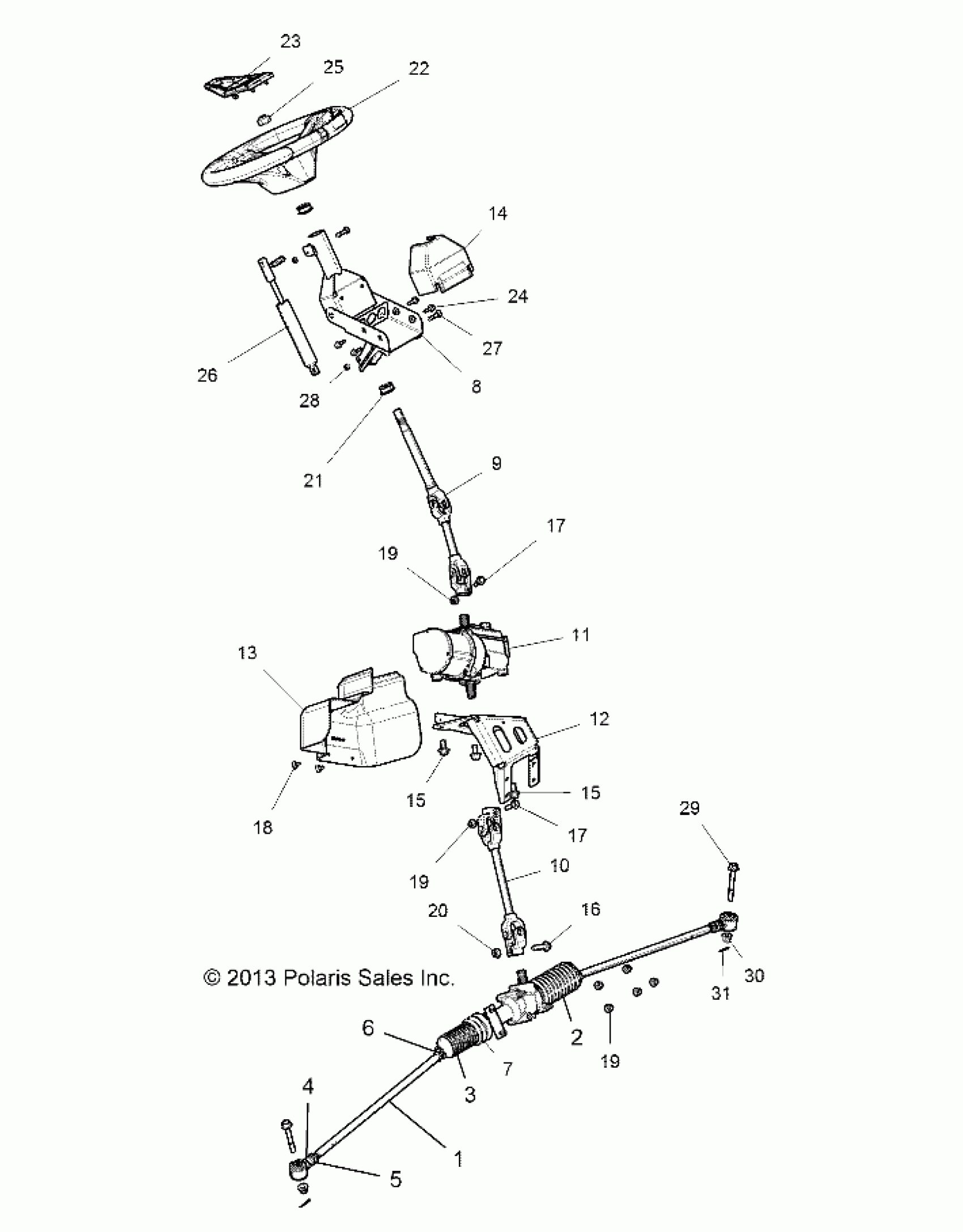

Polaris RZR XP 4 1000/PS - Z146T1EAM/EAW STEERING, STEERING ASM. - Z146T1EAM/EAW (49RGRSTEERING14RZR1000) Diagram

#

Description
Price

1

ASM., GEAR BOX, STEERING [INCL. 2-7]

1823984

$761.19

2

D.S. BELLOWS

5412012

$59.99

3

P.S. BELLOWS

5412013

$55.99

4

TIE ROD, OUTER

7061189

$67.99

5

NUT, JAM

2205058

$23.99

6

CLAMP, SMALL

7080978

$2.39

7

CLAMP, LARGE

7080979

$5.59

8

ASM., TILT, STEERING, RIVETED, BLACK

1019185-458

$139.99

9

SHAFT, STEERING, UPPER

1823891

$143.99

10

SHAFT, STEERING LOWER, EPS

1824012

$127.99

11

ASM., POWER STEERING

2411826

Unavailable

12

MOUNT, EPS, BLACK

5257531-329

$119.99

13

COVER, EPS

5438626

$31.99

14

PANEL, COVER, STEERING

5450771

Unavailable

15

BOLT

7518558

$3.99

15

BOLT

7518558

$3.99

16

SCREW

7518644

$4.79

17

SCREW

7519052

$1.59

17

SCREW

7519052

$1.59

18

SCREW

7519092

$1.49

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

20

NUT

7547385

$1.49

21

BUSHING-STEERING

7556675

$14.95

22

WHEEL, STEERING

1824014

Unavailable

23

CAP, STEERING WHEEL, GRAY

5450255-656

$31.99

24

BOLT

7518613

$3.99

25

NUT

7547506

$4.39

26

ASM-SHOCK,OIL LOCKING,MACH

7044098

$95.99

27

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.19

28

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

29

SCREW

7519854

$15.99

30

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

31

Pin, Cotter

7661203

$1.49
