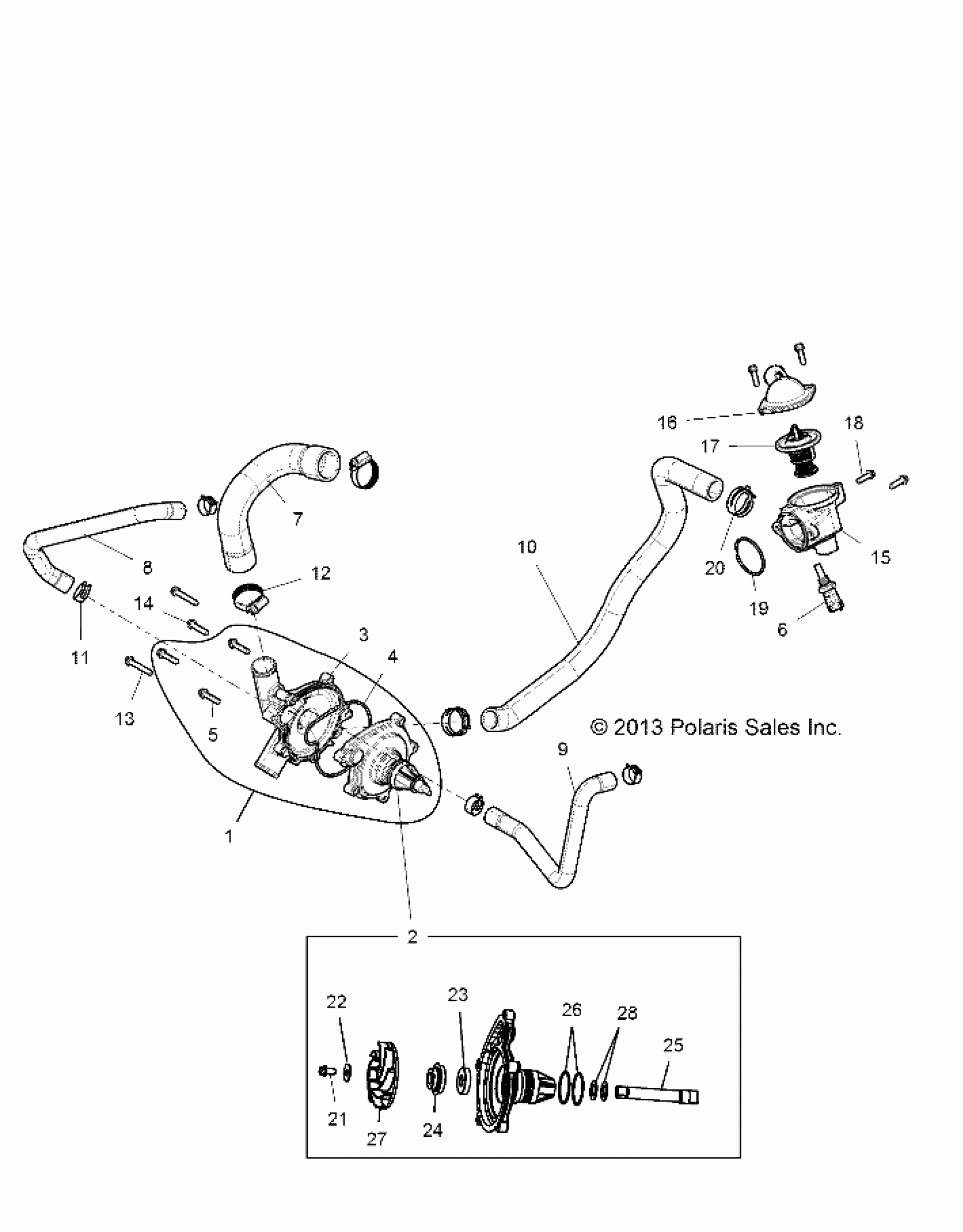

Polaris RZR XP 4 1000/PS - Z146T1EAM/EAW ENGINE, WATERPUMP AND BYPASS - Z146T1EAM/EAW (49RGRWATERPUMP14RZR1000) Diagram

#

Description
Price

1

ASM, WATERPUMP

1204735

Unavailable

2

ASM, WATER PUMP HOUSING

1204349

$99.99

3

ASM, WATERPUMP COVER

1204732

Unavailable

4

GASKET, WATERPUMP COVER

5413811

$23.99

5

SCREW

7519178

$35.99

6

SENSOR-THERMISTER

4010644

$87.13

7

HOSE, WATER PUMP OUT, FORMED

5414208

$63.99

8

HOSE, OIL COOLER OUTLET

5414282

$27.99

9

HOSE, OIL COOLER IN

5414475

$27.99

10

HOSE, BYPASS

5414735

Unavailable

11

CLAMP, HOSE, SPRING

7081026

$7.99

12

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

13

SCREW

7519280

$4.79

14

SCREW

7519297

$3.99

15

HOUSING, THERMOSTAT

5138282

$27.99

16

COVER, THERMOSTAT, CAST

5632421

$35.99

17

THERMOSTAT

7052526

$75.99

18

SCREW

7518576

$3.19

19

O-RING

5414591

$3.22

20

CLAMP, SPRINGBAND

7080842

$7.19

21

SCREW

7519177

$5.27

22

WASHER, IMPELLER

7556532

$5.27

23

SEAL, WATERPUMP SHAFT, OIL

3610163

$23.99

24

SEAL, WATERPUMP SHAFT, WATER

3610164

$63.99

25

SHAFT, WATERPUMP

5137069

$27.99

26

O-RING

5413863

$7.99

27

IMPELLER, WATERPUMP

5438796

$23.99

28

WASHER, WATERPUMP, RETAINER

7556521

Unavailable
