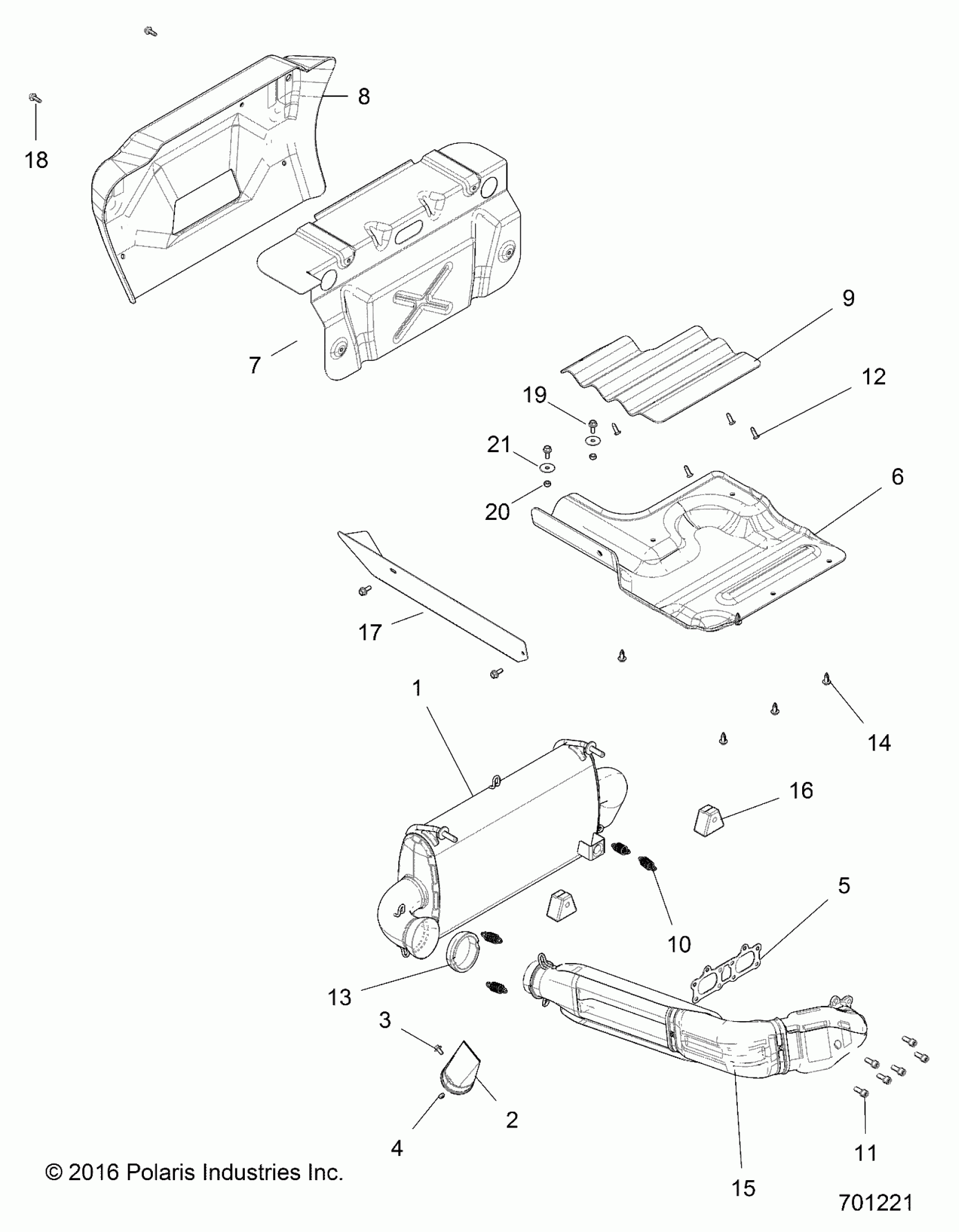

Polaris RZR XP 4 1000/PS - Z146T1EAM/EAW ENGINE, EXHAUST SYSTEM - Z146T1EAM/EAW (701221) Diagram

#

Description
Price

1

ASM., SILENCER [INCL. 2-4]

1262395

Unavailable

2

ARRESTOR, SPARK

1262390

$47.99

3

SCREW

7517257

$9.59

4

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

5

GASKET-EXHAUST SEAL

3610184

$48.56

6

SHIELD-BOX,FRONT

5814245

$43.99

7

SHIELD-REAR,AL

5260102

$44.51

8

SHIELD-REAR BUMPER

5814362

$55.99

9

SHIELD, FOIL, ACCESS PANEL

5814000

Unavailable

10

SPRING-EXHAUST

7041789

$7.99

11

SCREW

7518984

$7.99

12

SCREW

7519045

$3.19

13

SEAL, EXHAUST, SOCKET

3610211

$19.99

14

Rivet

7661855

$1.49

15

ASM., HEADPIPE

1262392

$581.01

16

MOUNT, ISOLATOR

5450115

$14.39

17

K-SHIELD,SIDE BOX

2206583

Unavailable

18

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

19

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

20

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

21

WASHER-.281X1.00X.051

7556329

$1.49
