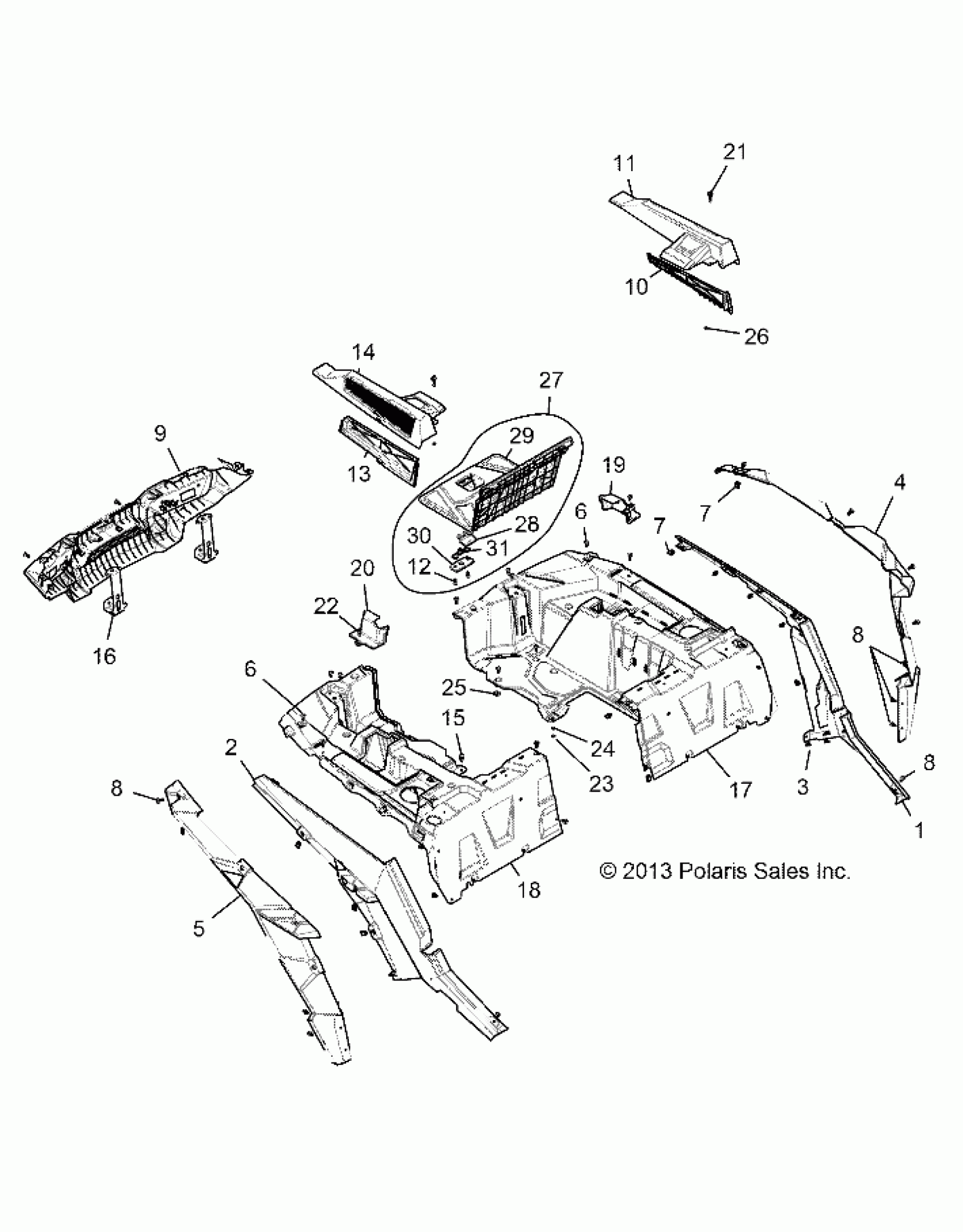

Polaris RZR XP 4 1000/PS - Z146T1EAM/EAW BODY, REAR RACK AND FENDERS - Z146T1EAM/EAW (49RGRRACKMTG1410004) Diagram

#

Description
Price

1

ASM., FENDER, REAR, CLIP, LH, PAINTED, TITANIUM [INCL. QTY 6 OF 3][AM]

2635123-632

$360.79

1

ASM., FENDER, REAR, CLIP, LH, WHITE LIGHTNING [INCL. QTY 6 OF 3][AW]

2635123-599

$360.79

2

ASM., FENDER, REAR, CLIP, RH, TITANIUM [INCL. QTY 6 OF 3][AM]

2635126-632

$360.79

2

ASM., FENDER, REAR, CLIP, RH, WHITE LIGHTNING [INCL. QTY 6 OF 3][AW]

2635126-599

$360.79

3

CLIP-DASH,TRIM,METAL

7519806

$3.99

4

FENDER, REAR FLAIR, LH, BLACK

5439762-070

$103.99

5

FENDER, REAR FLAIR, RH, BLACK

5439763-070

$103.99

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

7

NUT, U-TYPE

7547674

$1.49

7

NUT, U-TYPE

7547674

$1.49

8

Rivet

7661855

$1.49

8

Rivet

7661855

$1.49

8

Rivet

7661855

$1.49

9

ASM., FASCIA, REAR, DECAL, BLACK [INCL. DECAL]

2635073-070

$203.99

10

FILTER, SCREEN, INTAKE, LH

5450566

$51.99

11

BEZEL, AIR INTAKE, LH, BLACK

5439799-070

Unavailable

12

SCREW

7519290

$3.99

13

FILTER, SCREEN, INTAKE, RH

5450567

$62.92

14

BEZEL, AIR INTAKE, RH, BLACK

5439800-070

Unavailable

15

PLUNGER, BOX LATCH

5139009

$13.59

16

BRACKET, REAR FASCIA, BLACK

5257790-329

Unavailable

17

BOX, REAR, LH, BLACK

5439784-070

Unavailable

18

BOX, REAR, RH, BLACK

5450238-070

Unavailable

19

PANEL, SHOCK, RESERVOIR, LH, BLACK

5450519-070

$31.99

20

PANEL, SHOCK, RESERVOIR, RH, BLACK

5450520-070

$31.99

21

KNOB

7081619

$14.39

22

SCREW

7519045

$3.19

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

Washer, Flat

7555859

$1.49

25

WASHER, NYLON

7555916

$1.59

26

RETAINER, BOLT

7670154

$1.49

27

ASM., PANEL, BOX, ACCESS [INCL. 12,28-31]

2635163

$103.99

28

HANDLE-SEAT BASE LATCH

5437121

$4.84

29

PANEL, BOX, ACCESS, BLACK

5450499-070

Unavailable

30

LATCH, COVER PLATE, BLACK

5450510-070

$4.79

31

SPRING, LATCH, SEAT

7081466

$39.99
