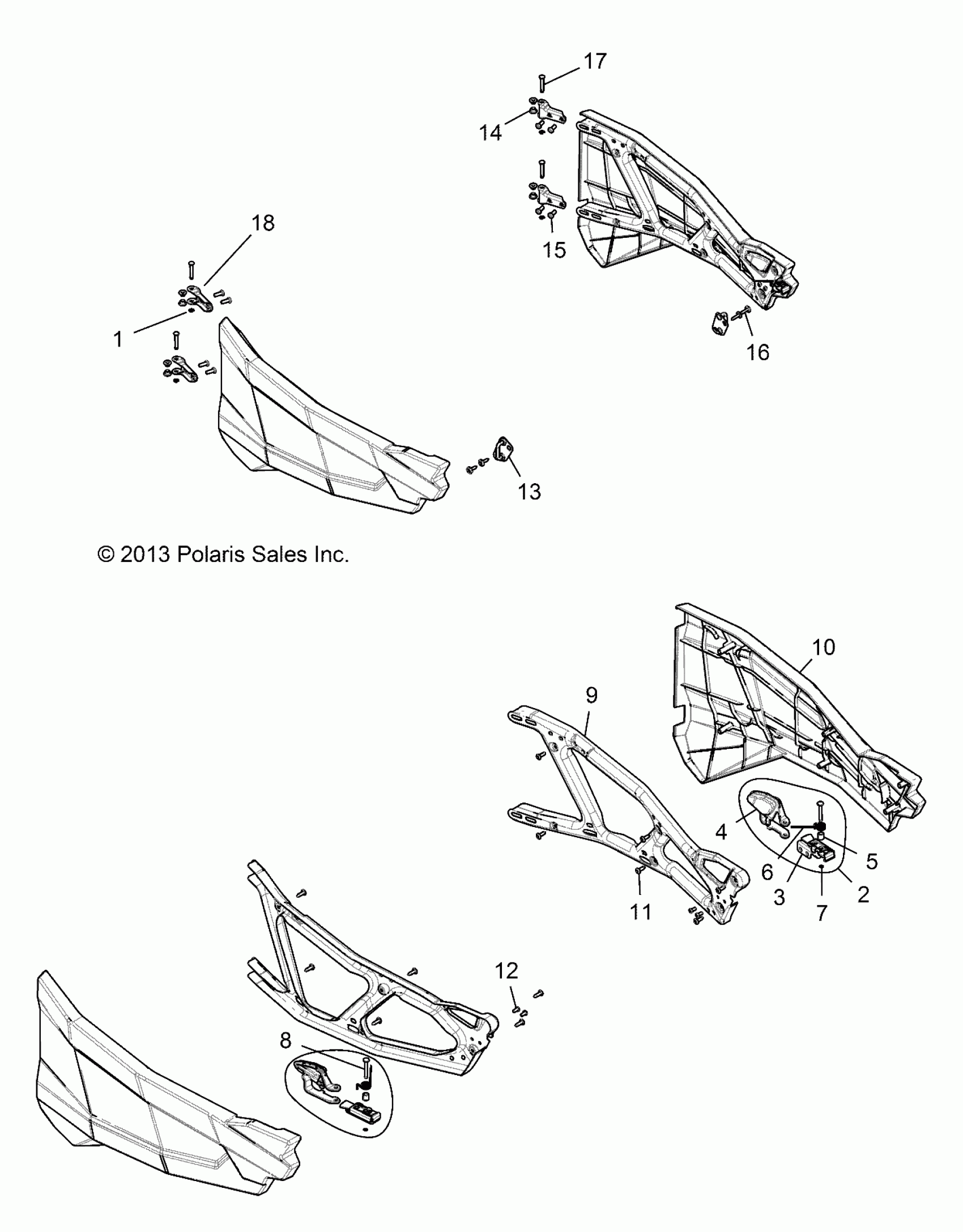

Polaris RZR XP 4 1000/PS - Z146T1EAM/EAW BODY, DOORS, FRONT - Z146T1EAM/EAW (49RGRDOOR14RZR1000) Diagram

#

Description
Price

1

E-CLIP,M6, DIN 6799

7710466

$3.19

2

ASM., LATCH, ACTUATOR, RH [INCL. 3-7]

2635155

$184.79

2

ASM., LATCH, ACTUATOR, LH [INCL. 3-7]

2635154

$209.30

3

ASM., LATCH DOOR, LH

2634929

$59.99

3

ASM., LATCH DOOR, RH

2634930

$59.99

4

LATCH, ACTUATOR, RH

5138957

$27.99

4

LATCH, ACTUATOR, LH

5138956

$27.99

5

SPACER, DOOR LATCH PIVOT

5139178

$12.99

6

SPRING, LATCH, RH

7044096

$7.19

6

SPRING, LATCH, LH

7044095

$7.19

7

RING, RETAINING

7556129

$3.99

8

PIN, LATCH

7662162

$7.99

9

FRAME, DOOR, LH, BLACK

5257929-458

$147.99

9

FRAME, DOOR, RH, BLACK

5257930-458

$147.99

10

DOOR SKIN, LH

5450636

$119.99

10

DOOR SKIN, RH

5450638

$119.99

11

SCREW

7519045

$3.19

12

SCREW

7519063

$3.99

13

ASM., STRIKER, RH

2634968

$19.99

13

ASM., STRIKER, LH

2634931

$19.99

14

BUSHING, DOOR PIVOT

5450592

$2.39

15

SCREW

7519997

$3.99

16

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

17

PIN, DOOR HINGE

7662138

$4.79

18

BRACKET, DOOR HINGE

5258008

Unavailable
