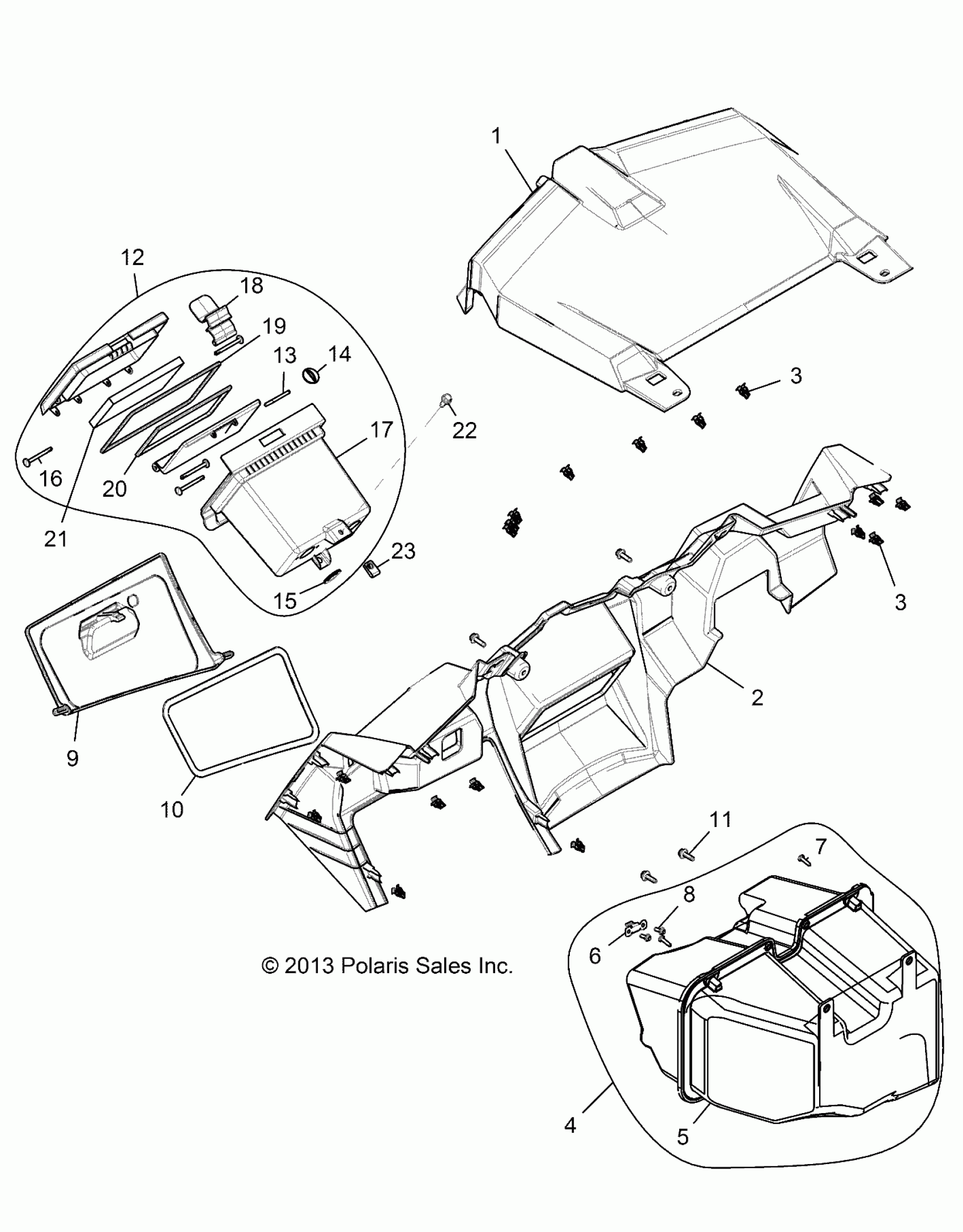

Polaris RZR XP 4 1000/PS - Z146T1EAM/EAW BODY, DASH AND GLOVEBOX - Z146T1EAM/EAW (49RGRDASH1410004) Diagram

ASM., UPPER IP, BLACK [INCL. QTY 7 OF REF. 3]

2634956-070

$137.60

ASM., LOWER IP, WARNING DECAL, PT, TITANI [AM][INCL. WARNING DECALS] [INCL. QTY 10 OF REF. 3]

2635359-632

Unavailable

ASM., LOWER IP, WARNING DECAL, PT, STEALTH BLACK [AW][INCL. WARNING DECALS] [INCL. QTY 10 OF REF. 3]

2635359-464

Unavailable

CLIP-DASH,TRIM,METAL

7519806

$3.97

CLIP-DASH,TRIM,METAL

7519806

$3.97

ASM., GLOVE BOX [INCL. 5-8]

2635162

$97.13

GLOVEBOX, BLACK

5439796-070

$106.49

LATCH, STORAGE COMPARTMENT

7081715

$27.78

SCREW

7512026

$1.19

SCREW

7518641

$3.17

DOOR, GLOVEBOX, PNT, TITANIUM [AM]

5450723-632

Unavailable

DOOR, GLOVEBOX, PNT, STEALTH BLACK [AW]

5450723-464

Unavailable

SEAL, GLOVEBOX

5522000

$24.27

SCREW

7519342

$1.99

ASM., DOUBLE DIN [INCL. 13-21]

2635161

$145.70

PIN, HINGE

5451236

$8.99

PLUG-COMPARTMENT

5412981

$3.79

GROMMET, ELEC, LED

5414942

$3.97

PIN-HINGE,GLOVEBOX

5439091

$3.97

PANEL, DOUBLE DIN, BLACK

5439789-070

$32.37

LATCH, LID, DIN

5450654

$8.89

SEAL, DIN, OUTER

5522021

$29.03

SEAL, DIN, INNER

5522022

$24.27

FOAM, DOUBLE DIN

5814055

$54.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

NUT, U-TYPE

7547674

$1.19
