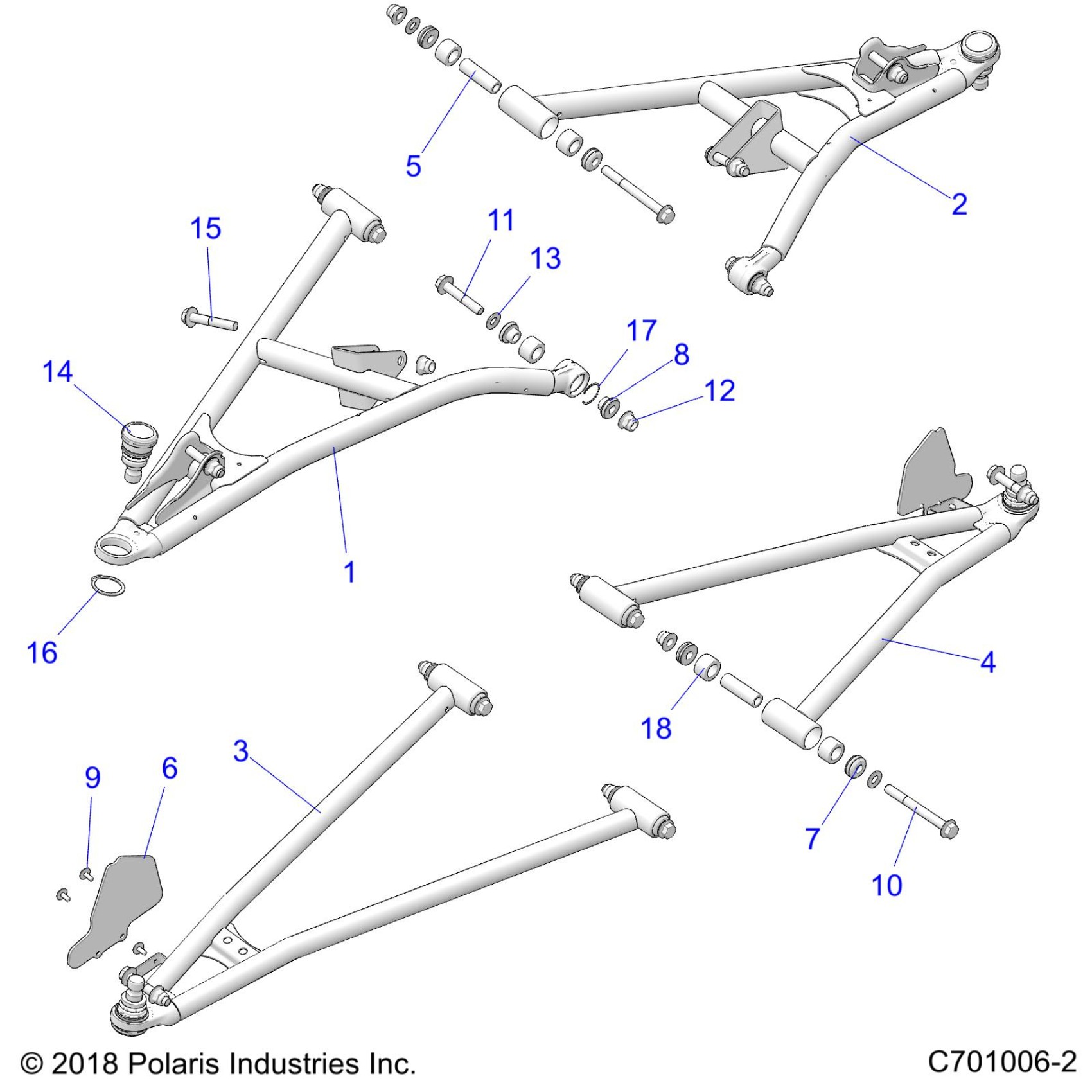

Polaris RZR XP 4 1000 PREMIUM RIDE COMMAND (R02) - Z23N4K99AR/99BR/AL/BR SUSPENSION, FRONT CONTROL ARMS - Z23N4K99A/99B (C701006-2) Diagram

WELD-CTRL ARM,UPR,FR,LH,64,BLK

1025143-458

$259.99

WELD-CTRL ARM,UPR,FR,RH,64,BLK

1025144-458

$259.99

WELD-CTRL ARM,LWR,FR,LH,64,BLK

1025139-458

$131.99

WELD-CTRL ARM,LWR,FR,RH,64,BLK

1025140-458

$131.99

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

SHIELD, CV, FRONT, BLACK

5438641-070

$3.19

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP,SEALED,SLIM,M10

1543735

$13.59

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

BALL-JOINT,HARDENED,HI-MISALGN [TO 7/3/2023]

7082422

Unavailable

BALL-JOINT,HARDENED,HI-MISALGN [FROM 7/3/2023]

7082892

$47.99

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

RING-RTG,DSH-33ST

7710716

$7.19

28MM SPIRAL RING,STEEL

7710845

$3.59

BUSHING-STANDARD, SUSP, M10

5452233

$2.39
