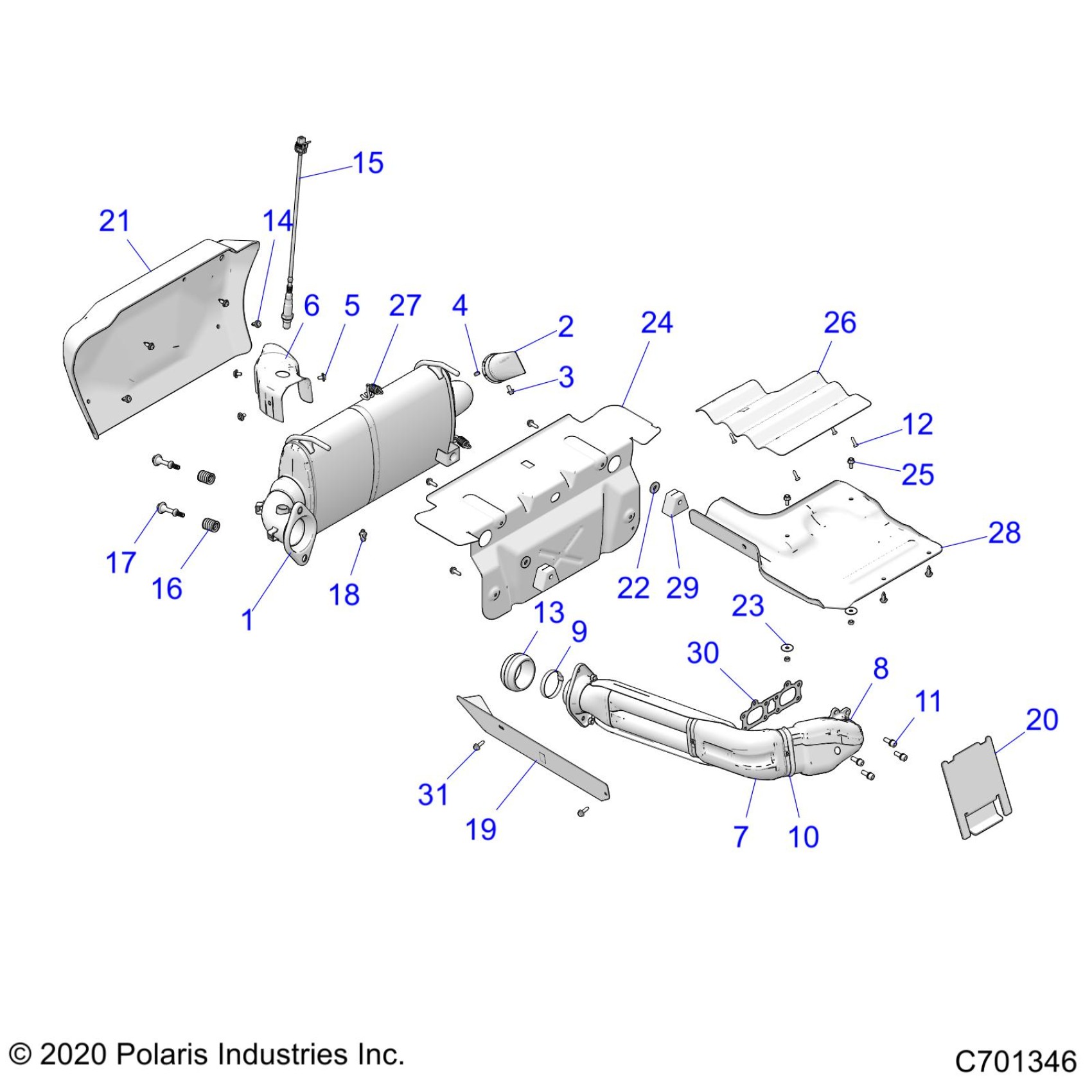

Polaris RZR XP 4 1000 PREMIUM RIDE COMMAND (R02) - Z23N4K99AR/99BR/AL/BR ENGINE, EXHAUST SYSTEM - Z23N4K99A/99B (C701346) Diagram

Description

Price

ASM-SILENCER [INCL. 2-6]

1263066

$769.99

WELD-SPARK ARRESTOR

1262390

$52.60

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.52

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.14

SHIELD-SILENCER INLET

5264296

$28.32

ASM., HEADPIPE [INCL. 8-10]

1262599

$588.99

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.14

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.14

CLAMP-HEAT SHIELD,EXHAUST

7081915

$7.14

SCR-HXFL-M5X0.8X12 4.8 ZPC NYL

7518984

$7.94

SCR-10X 5/8 TX PN PLST-243

7518577

$2.38

GASKET, DOUBLE, SPHERICAL

3610236

$48.56

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

SENSOR-LAMBDA,LSF 4.2

4011853

$140.38

SPRING, SPHERICAL, EXHAUST

7044274

$15.37

STUD-SPHERICAL,EXHAUST

7520079

$13.49

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

SHIELD-FOIL,SIDE BOX,0.05"AL

5263028

$28.32

SHIELD, ACCESS PANEL

5814648

$48.40

SHIELD-REAR BUMPER

5814362

$67.76

WASHER-.406X1.00X.125,FL

7555966

$2.62

WASHER-.281X1.00X.051

7556329

$1.49

SHIELD-REAR,STAINLESS

5268152

$44.51

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

SHIELD-FOIL,ACCESS PANEL

5262942

$36.41

SPRING-EXHAUST

7041789

$8.89

SHIELD-BOX,FRONT

5814245

$52.24

MOUNT, ISOLATOR

5450115

$14.56

GASKET-EXHAUST SEAL

3610184

$48.56

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19
