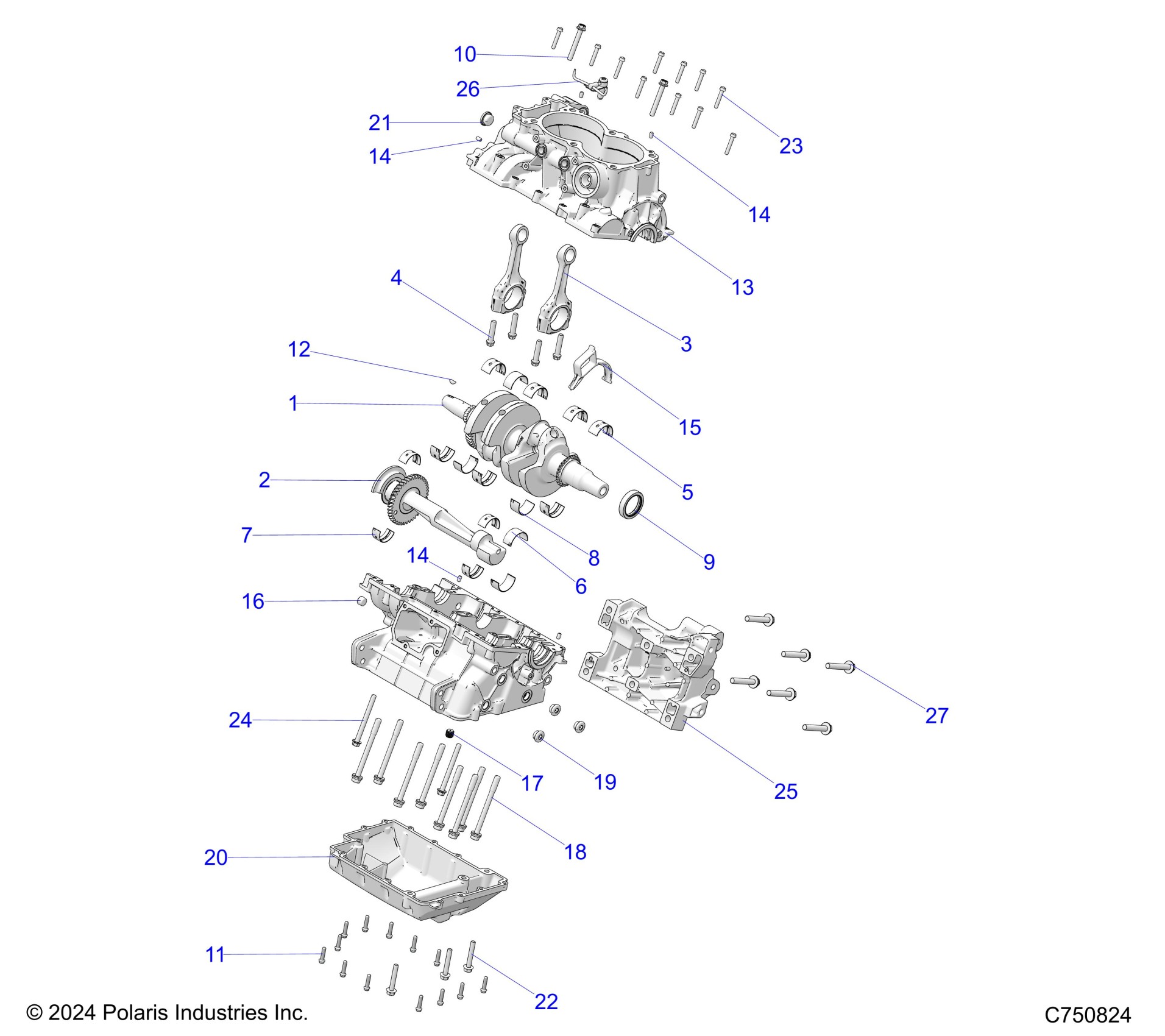

Polaris RZR XP 4 1000 PREMIUM RIDE COMMAND (R02) - Z23N4K99AR/99BR/AL/BR ENGINE, CRANKCASE AND CRANKSHAFT - Z23N4K99A/99B (C750824) Diagram

ASM-CRANKSHAFT

3023103

$1,060.39

ASM-BALANCE SHAFT

1204835

$343.99

ASM-CONNECTING ROD [INCLUDES 4]

3024355

$155.99

BOLT-CONROD MJ9X1.0X44

7520356

$23.99

BEARING-MAIN,G-90,41MM

3514662-001

$9.59

BEARING-MAIN,G-90,41MM,BLU

3514662-002

$9.59

BEARING-MAIN,G-90,41MM,GRN

3514662-003

$9.59

BEARING-MAIN,G-90,41MM,YLW

3514662-004

$9.59

BEARING-MAIN,G-90,41MM,RED

3514662-005

$9.59

BEARING, CONNECTING ROD, WHITE

3514663-001

$8.79

BEARING, CONNECTING ROD, BLUE

3514663-002

$8.79

BEARING, CONNECTING ROD, GREEN

3514663-003

$8.79

BEARING, CONNECTING ROD, YELLOW

3514663-004

$8.79

BEARING-BAL SHAFT,38X41X17.5

3514756

$9.59

BEARING-MAIN,CNTR,LWR BLU

3514803-002

$11.99

BEARING-MAIN,CNTR,LWR,GREEN

3514803-003

$11.99

BEARING-MAIN,CNTR,LWR,YELLOW

3514803-004

$11.99

SEAL-CRANKSHAFT

3610284

$32.37

SCR-HXFLG,M8X1.25X60

7519186

$6.53

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

KEY-WOODRUFF,4X5

7721122

$7.84

K-CRANKCASE 1205719 [INCLUDES 14-19]

2207373

$1,234.79

PIN-DOWEL,M6X10

5143560

$9.59

PIN-DOWEL,M6X10

5143560

$9.59

PIN-DOWEL,M6X10

5143560

$9.59

DIVERTER, OIL DRAIN

5455583

$12.79

PLUG-3/8 NPT,HX/SOC W/SEALANT

7052413

$3.99

PLUG-HEX SOCKET,1/4X18,SEALANT

7518835

$5.59

SCR-HXFL,M10X1.25X113MM 10.9

7527904

$23.99

PLUG-HEX SCKT,W/O-RING,M16X1.5

7052642

$7.91

COVER-SUMP,MACH

5143719

$105.22

PLUG-HEX SCKT,W/O-RING,M20X1.5

7052643

$7.99

SCR-M8X1.25X50 HX/FL-Y

7517793

$5.59

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

SCR-HXFLG,M8X1.25X90

7519154

$7.19

BRKT-TRANSJOINT,MACH

5143718

$174.27

JET, PISTON

3022856

$48.40

BOLT-M10X1.5X60MM8.8HEXDRILOCK

7520467

$4.79
