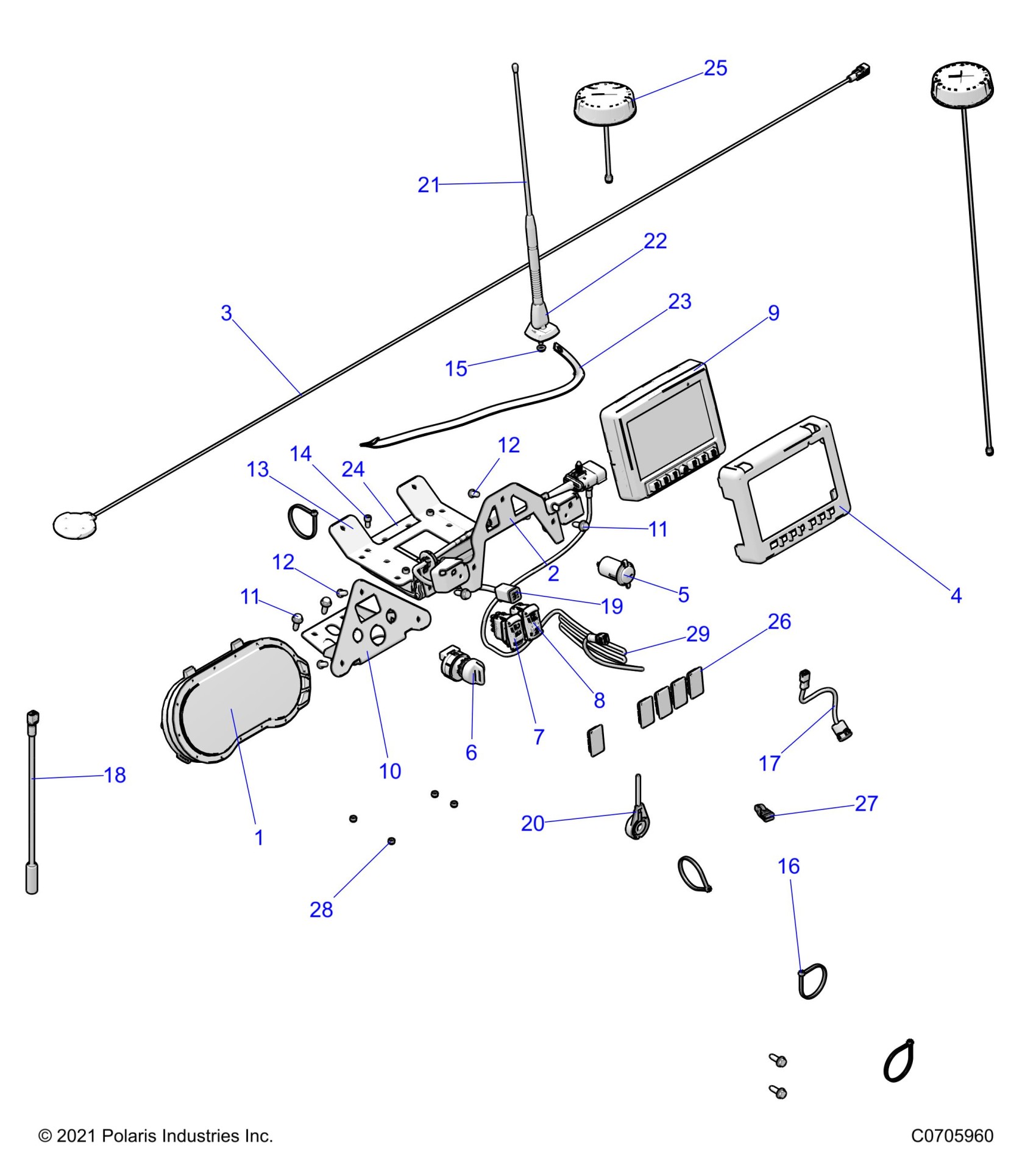

Polaris RZR XP 4 1000 PREMIUM RIDE COMMAND (R02) - Z23N4K99AR/99BR/AL/BR ELECTRICAL, DASH INSTRUMENTS AND CONTROLS, RIDE COMMAND - Z23N4K99A/99B (C700330-2) Diagram

ASM-C4,RZR

3286839

$529.99

BRKT-RZR 7" DISPLAY,BLK

5266577-329

$52.60

ANTENNA,GPS,EXT

4017533

$90.24

BEZEL-GAUGE,7",ORV,7 BTN,BLK

5455574-070

$15.37

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

SWITCH-KEY,4 POSITION,MT SLV

4016058

$56.99

SWITCH, HEADLIGHT

4014069

$89.03

SWITCH, AWD

4014673

$67.76

ASM-DISPLAY,DIG,P7,PRG,250K

3286917

$2,099.99

BRKT-C4 GAUGE MOUNT,ECOAT

5270643-329

$40.46

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

BRKT-SCM,AMP,BLK

5266963-458

$36.41

SCREW-SH-M5X0.8X12 10.9 ZPC D204

7517276

$7.14

NUT-HXFL-M5X0.8 A2SS

7547437

$3.17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CAM-MIRROR,CAMERA,APX [TO 08/7/2023]

4015873

$251.74

CAM-MIRROR,CAMERA,APX [FROM 08/7/2023]

4081066

$251.74

HARNESS-AM/FM ADAPTER

2414431

$94.99

HARNESS,USB,RC

2414710

$56.99

ASM-HARNESS,AM/FM ANTENNA,1050

2414727

$64.99

ANTENNA MAST, AM/FM, SHORT

4014849

$139.99

MOUNT-ANTENNA,90-DEG ADJ

4019254

$59.99

STRAP-GROUND,ANTENNA,BRAIDED

4016696

$32.37

AMP,AUDIO,DASH MOUNT,2 CH

4017614

$399.99

ANTENNA,V2V

4018713

$139.99

COVER-SWITCH,RZT

5453402

$6.46

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.56

NUT-M5X.8,HX NYL-Y

7546601

$1.19

HARNESS-V2V, ANTENNA-DISPLAY

2414726

$179.99
