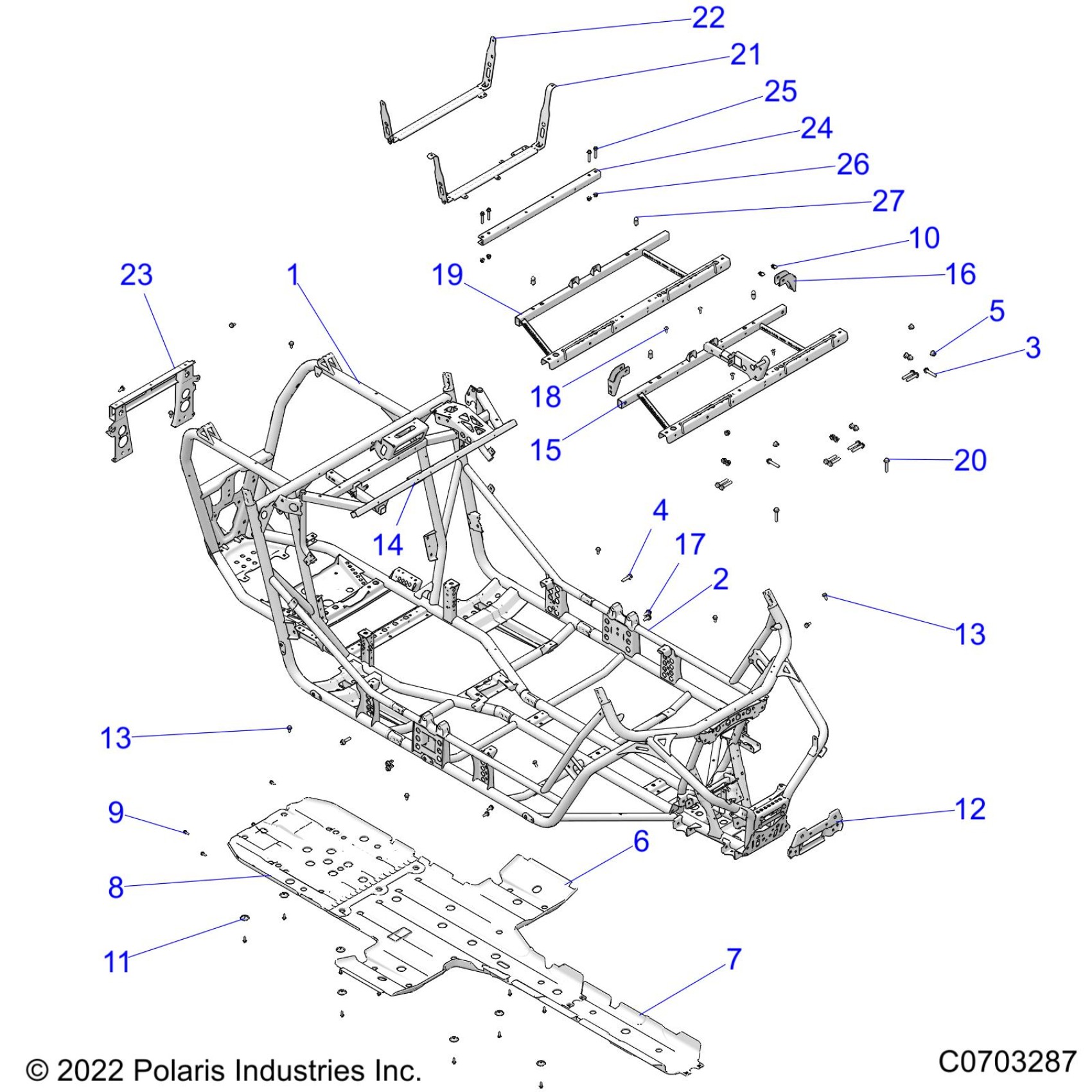

Polaris RZR XP 4 1000 PREMIUM RIDE COMMAND (R02) - Z23N4K99AR/99BR/AL/BR CHASSIS, MAIN FRAME AND SKID PLATES - Z23N4K99A/99B (C0703287) Diagram

WELD-MAIN FRAME,BLK

1024526-458

$2,406.79

WELD-MAINFRAME,FRT,MP,SWY,BLK

1024370-458

$2,415.59

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

PLATE-SKID,BLK

5456432-070

$239.99

PLATE, SKID, BLACK

5450556-070

$147.99

PLATE-SKID,REAR,BLK

5458186-070

$239.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

WASHER-SKID PLATE

7556065

$4.79

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

WELD-DASH,TURBO,S,ECOAT

1024577-329

$307.99

WELD-SEAT BASE,MP,BLK

1020572-329

$183.99

BRACKET, SEAT SUPPORT, FRONT, MP, BLACK

5258097-329

$51.99

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

BASE, SEAT, REAR, BLACK

1019777-329

$223.99

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

BRACKET, BOX STRAP, BLACK

5260947-329

$43.99

BRKT-BOX SUPPORT REAR,ECOAT

5264553-329

$39.99

SUPPORT, REAR, MATTE BLACK

1019529-458

$115.99

BRKT-CLOSE OFF SUPPORT,BLK

5260539-329

$35.99

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

LATCH, PLUNGER, SEAT

5632848

$13.59
