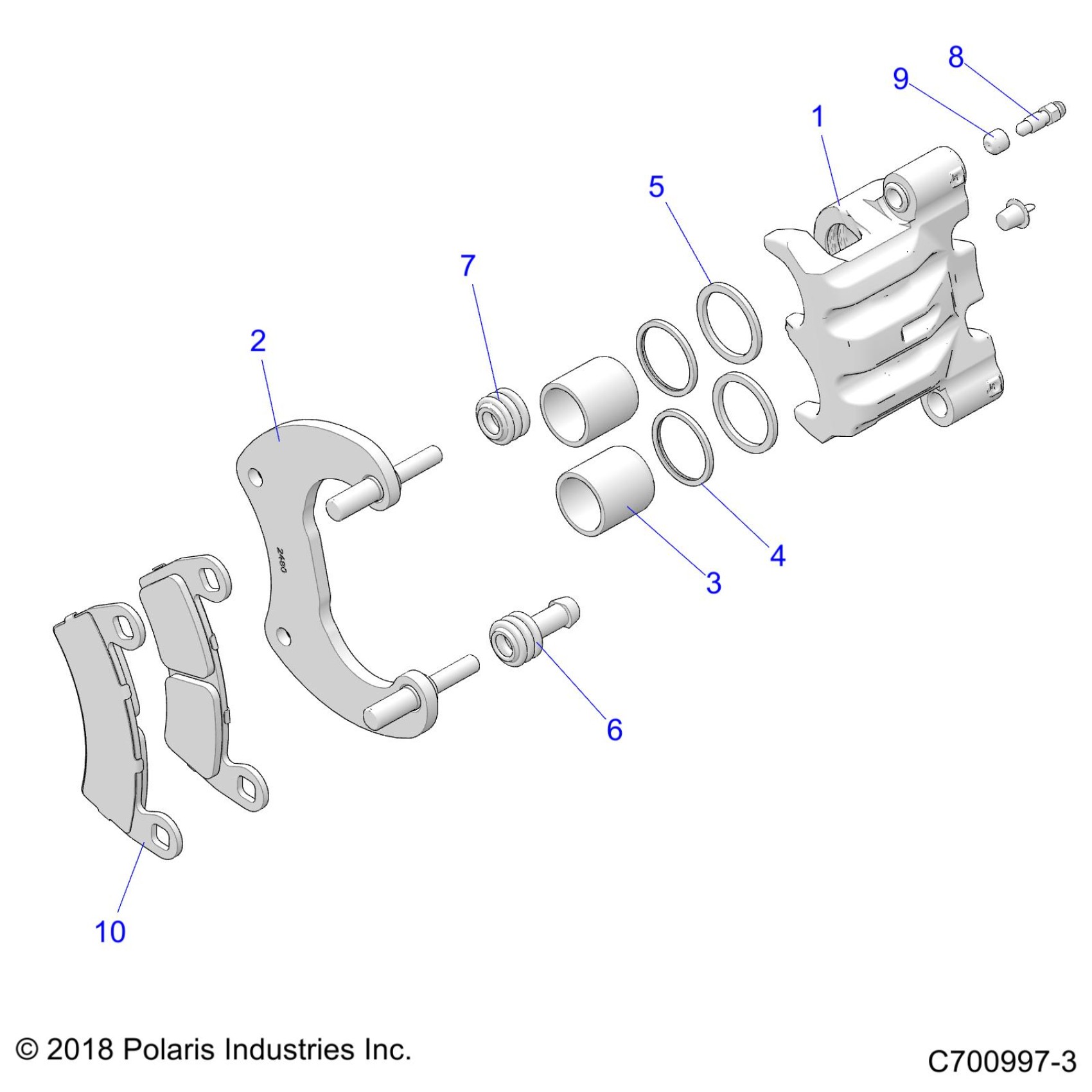

Polaris RZR XP 4 1000 PREMIUM RIDE COMMAND (R02) - Z23N4K99AR/99BR/AL/BR BRAKES, REAR CALIPER - Z23N4K99A/99B (C700997-3) Diagram

#

Description

Price

1

ASM., BRAKE CALIPER, LH, DOUBLE GROOVED [INCL. ALL]

1912141

$259.99

1

ASM., BRAKE CALIPER, RH, DOUBLE GROOVED [INCL. ALL]

1912142

$259.99

2

ASM., CALIPER, MOUNT, REAR, DOUBLE

1912035

$87.99

3

PISTON-BRAKE,1.188",AL,GROOVED

5138832

$27.99

4

SQUARE RING-MOLDED (.094)

5410779

$10.51

5

SQUARE RING, MOLDED (.103 X .134)

5410780

$10.51

6

BOOT-PIN BUSHING

5412505

$3.19

7

BOOT-PIN SEAL

5412506

$3.19

8

SCR-M7X1.0,BLEEDER,OLIVE D

7081343

$5.59

9

SCR-M10X1.0X8,SOC SET-OD

7518863

$9.59

10

KIT-ASM,PAD,BRAKE,DB,1.375 [INCL. 2 PADS]

2205949

$35.99

10

K-ASM,HD,PAD,BRK,DB,1.375 [OPTIONAL]

2208933

$47.99
