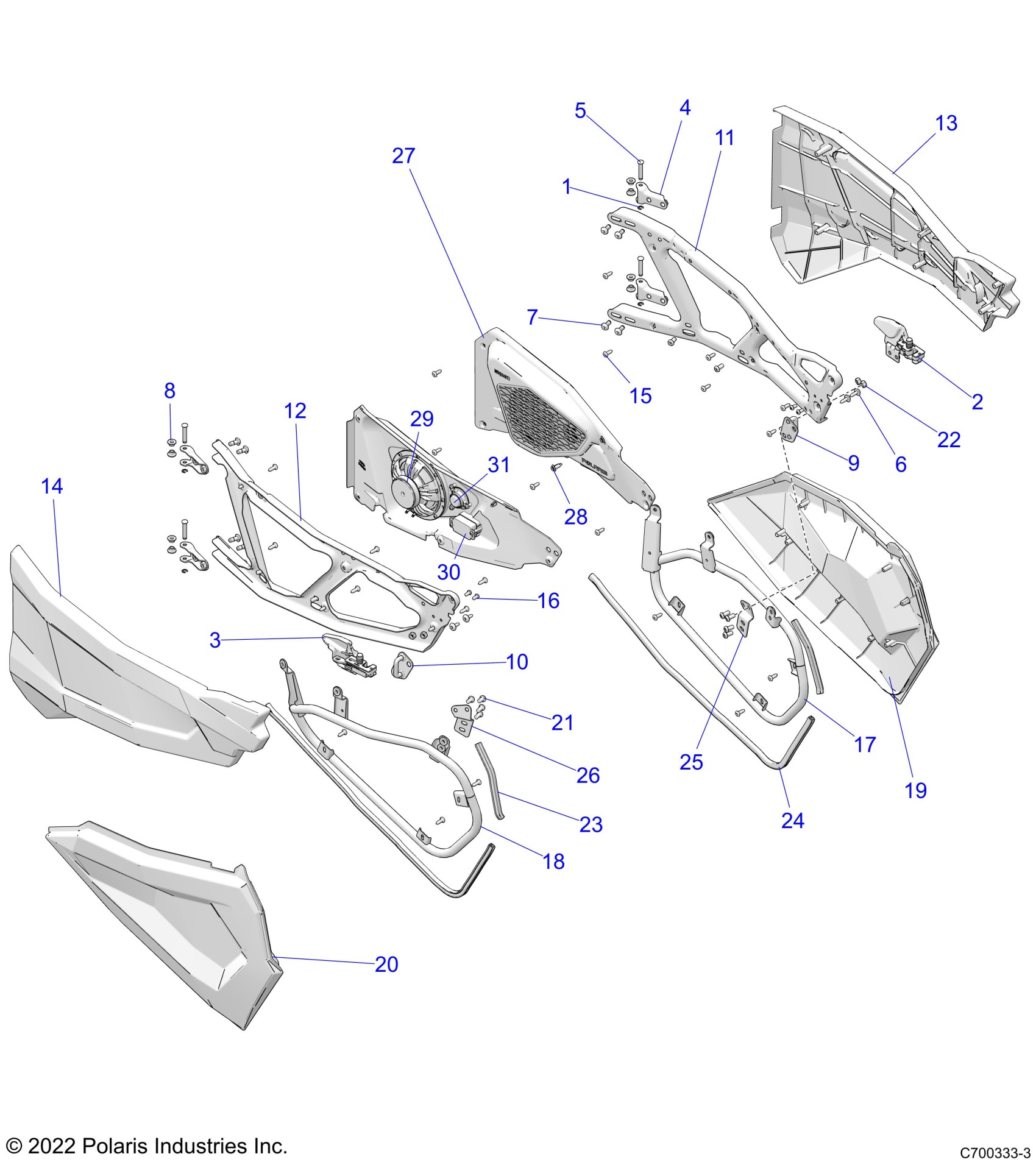

Polaris RZR XP 4 1000 PREMIUM RIDE COMMAND (R02) - Z23N4K99AR/99BR/AL/BR BODY, DOORS, FRONT - Z23N4K99A/99B (C700333-1) Diagram

#

Description
Price

1

SCREW-FLHD-M5X0.8X12 10.9 P&O

7517255

$7.19

2

ASM-LATCH,DOOR,LH

2637286

$71.99

3

ASM-LATCH,DOOR,RH

2637287

$71.99

4

BRACKET, DOOR, HINGE

5258008

Unavailable

5

SCR-TXWH-M5X0.8X40 10.9 ZTB SP

7527956

$4.79

6

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

7

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

8

BUSHING, DOOR, PIVOT

5450592

$2.39

9

ASM., STRIKER, LH

1021237

$39.99

10

ASM., STRIKER, RH

1021238

$39.99

11

STAMPING, DOOR FRAME, LH, MATTE BLACK

5257929-458

$147.99

12

STAMPING, DOOR FRAME, RH, MATTE BLACK

5257930-458

$147.99

13

DOOR, SKIN, LH

5450636

$119.99

14

DOOR, SKIN, RH

5450638

$119.99

15

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

Unavailable

16

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

17

WELD-MOUNT,DOOR,LOWER,LH,RZN

1019994

$107.99

18

WELD-MOUNT,DOOR,LOWER,RH,RZN

1019999

$107.99

19

ASM-DOOR,BOTTOM HALF,LH [INCL. QTY 3 OF 15, 17, 19, 23-24]

2635569

$383.99

19

PANEL, DOOR, PLASTIC, LOWER, LH

5450616

$107.99

20

ASM-DOOR,BOTTOM HALF,RH [INCL. QTY 3 OF 15, 18, 20, 23-24]

2635570

$383.99

20

PANEL, DOOR, PLASTIC, LOWER, RH

5450617

$107.99

21

SCREW-HXBH-M8X1.25X16 10.9 ZPB

7517484

Unavailable

22

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

23

SEAL, WEATHER STRIP, LOWER, DOOR

5522024-180

$23.99

24

SEAL, WEATHER STRIP, LOWER, DOOR

5522024-837

$43.99

25

MOUNT-LWR DOOR,LH,RZN,BLK

5271335-458

$35.19

26

MOUNT-LWR DOOR,RH,RZN,BLK

5271336-458

$35.19

27

ASM-SPEAKER,DOOR,PANEL,LH,RZT [INCLUDES 29-32]

2636268

$309.99

27

ASM-SPEAKER,DOOR,PANEL,RH,RZT [INCLUDES 29-32]

2636269

$309.99

28

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

29

SPKR-DOOR,PANEL,WOOFER,RZT

4016257

$100.31

30

CROSSOVER-DOOR,PANEL,RZT

4016382

$83.59

31

SPKR-DOOR,PANEL,TWTR,RZT

4016381

$79.41
