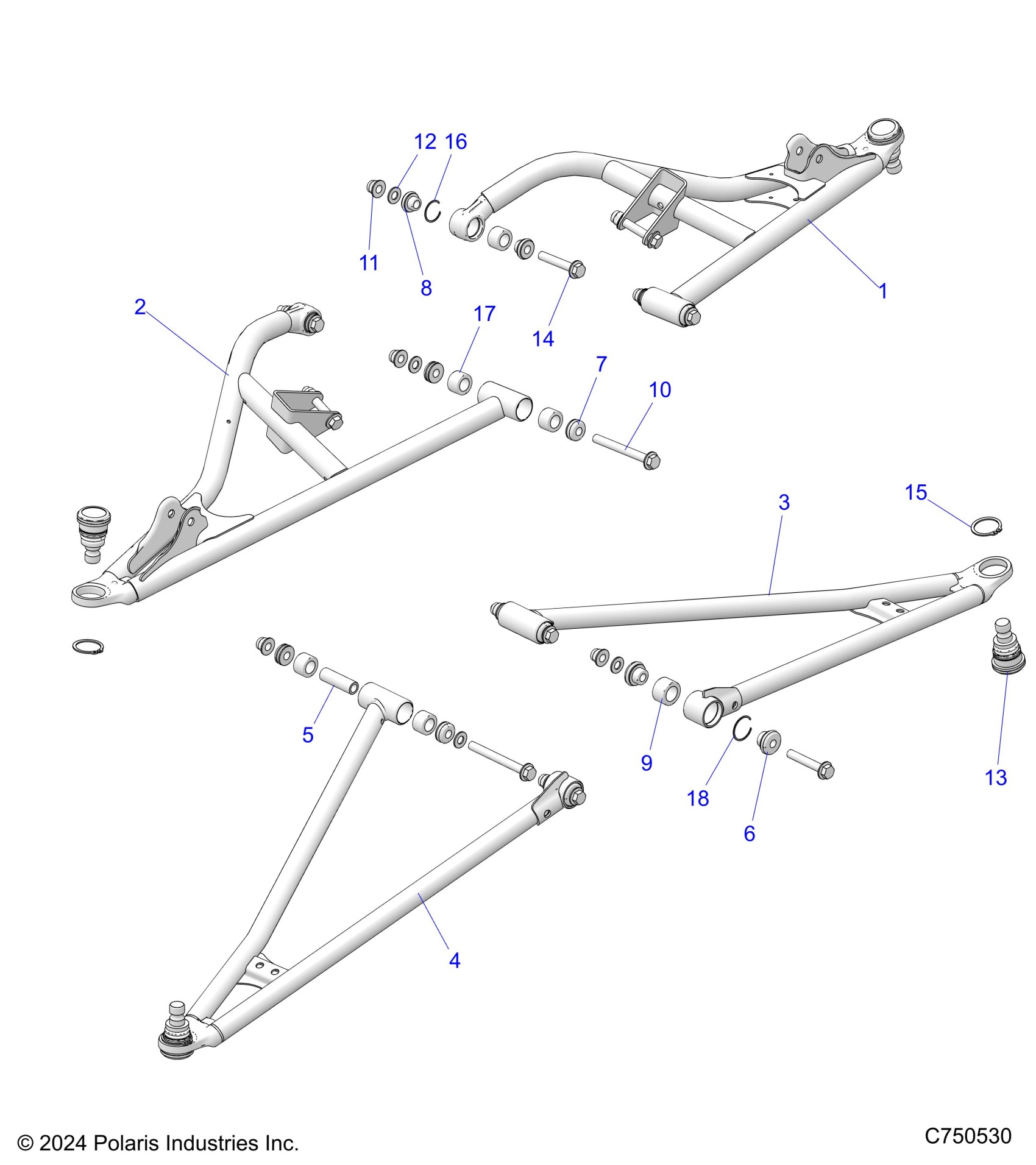

Polaris RZR XP 4 1000 PREMIUM (R02) - Z25NMB99A4/B4 SUSPENSION, FRONT CONTROL ARMS - Z25NMB99A4/B4 (C750530) Diagram

ASM-CTRL ARM,UPR,FR,LH,BLK [INCLS 7,8,13,15,16,17 ]

1544716-458

$131.99

ASM-CTRL ARM,UPR,FR,RH,BLK [INCLS 7,8,13,15,16,17 ]

1544717-458

$131.99

ASM-CTRLARM,LWR,FR LH,BLK [INCLS 5-17,9,13,15,17,18 ]

1544712-458

$131.99

ASM-CTRLARM,LWR,FR RH,BLK [INCLS 5-17,9,13,15,17,18 ]

1544713-458

$131.99

SHAFT-PIVOT,SHORT,M10 [TO 1/06/2025]

5139966

$5.59

SHAFT-PIVOT,SHORT,M10 [FROM 1/6/2025]

5144658

$5.59

ASM-PIVOT CAP,SEALED,M10

1543922

$10.39

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP,SEALED,SLIM,M10

1543735

$13.59

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

BALL-JOINT,HARDENED,HI-MISALGN

7082892

$47.99

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

RING-RTG,DSH-33ST

7710716

$7.19

28MM SPIRAL RING,STEEL

7710845

$3.59

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

30MM SPIRAL RING,STEEL

7710869

$3.99
