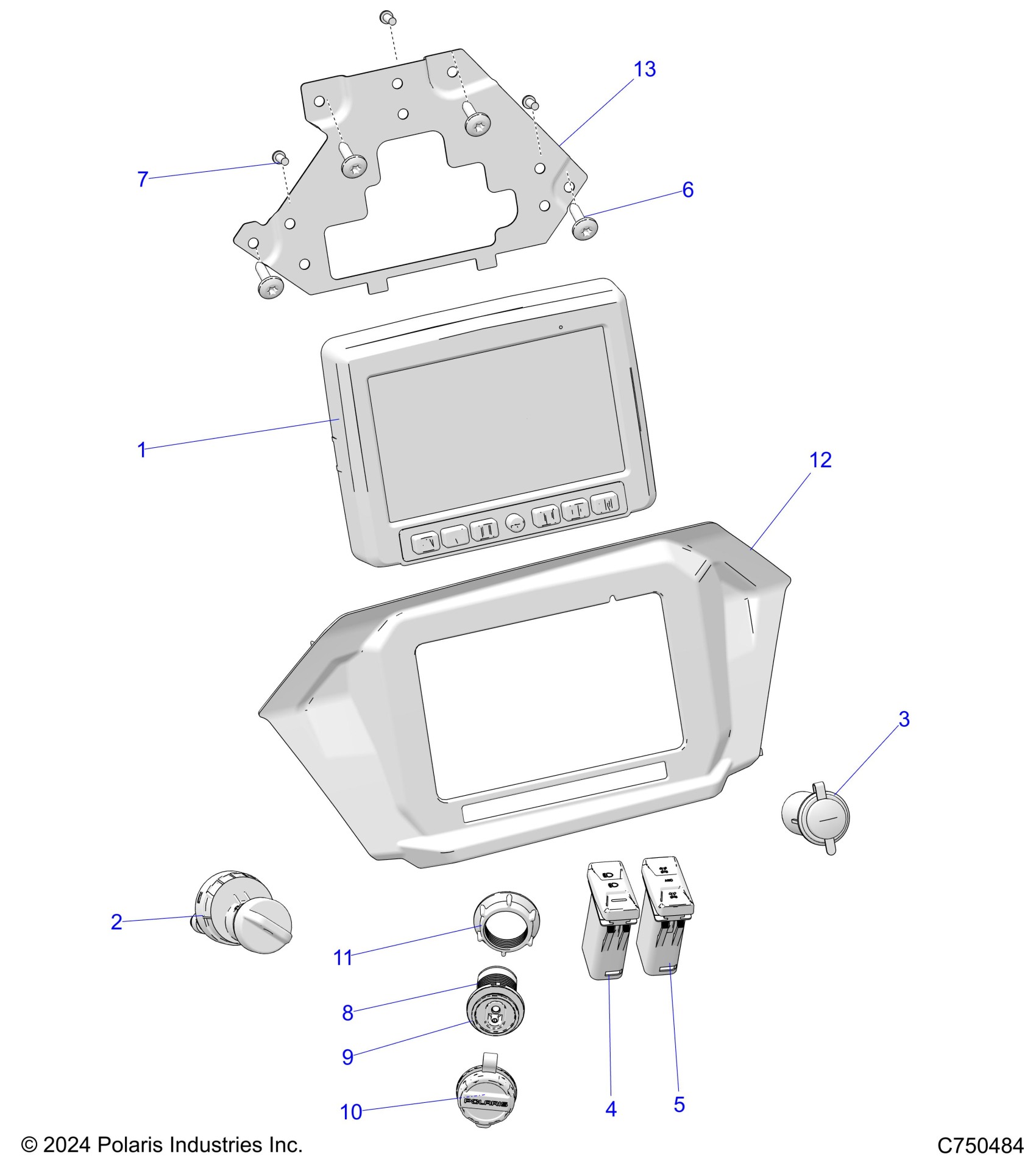

Polaris RZR XP 4 1000 PREMIUM (R02) - Z25NMB99A4/B4 ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z25NMB99A4/B4 (C750484) Diagram

#

Description

Price

1

ASM DISPLAY-DIG,P7,PRG,500K

3286949

$2,099.99

2

SWITCH-KEY,4 POSITION,SEALED

4016135

$56.99

3

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

4

SWITCH-KSERIES,HEADLIGHT

4080801-01

$89.03

5

SWITCH-KSERIES,AWD

4080801-03

$89.03

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

7

SCR-#10X1/2-HI/LO-TRX-Y

7512076

$1.19

8

ASM-CHARGE PORT,BASE [INCL. 9-11]

2415295

$44.51

9

PLUG-HARNESS CHARGE PORT

2415198

$44.51

10

CAP-CHARGE PORT

5417215

$12.94

11

NUT-CHARGE PORT

5456622

$44.51

12

COVER,BEZEL,CNTR,OUTER,7",BLK

5456571-070

$20.22

13

BRKT-GAUGE MNT,7",C4,ECOAT

5272057-329

$40.46
