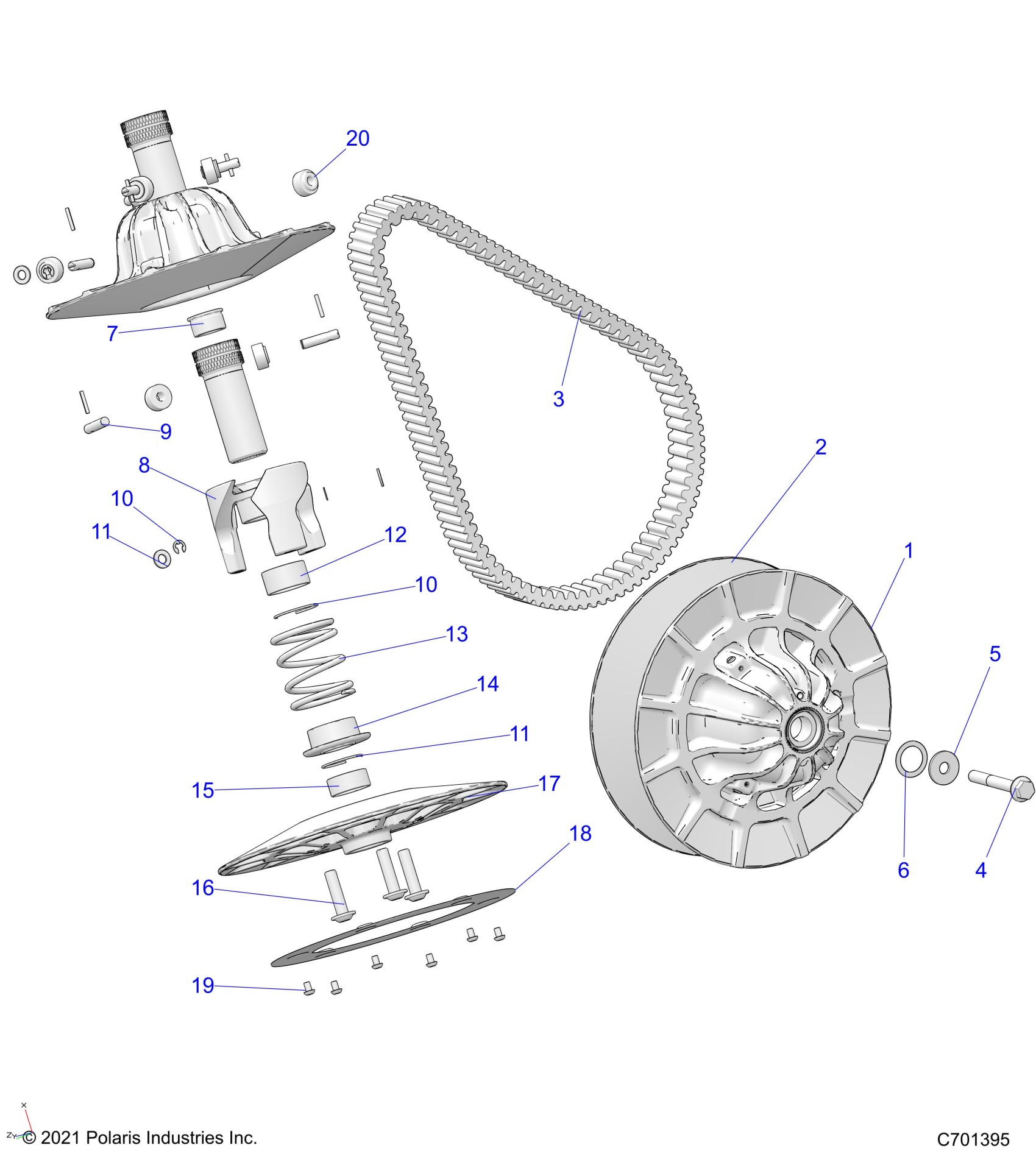

Polaris RZR XP 4 1000 PREMIUM (R02) - Z25NMB99A4/B4 DRIVE TRAIN, SECONDARY CLUTCH - Z25NMB99A4/B4 (C701395) Diagram

#

Description
Price

1

ASM-DRIVEN,STAT,P90X,HD [INCL. 7,9]

1327121

$223.99

2

ASM-DRIVEN,MOVEABLE [INCL. 8,10-20]

1327307

$395.99

3

BELT-DRIVE

3211186

$159.99

4

SCR-HXFL-M8X1.25X50 10.9 ZPB

7521306

$6.39

5

WSHR-8.4X30. 0X2.0 ZPB

7556219

$6.39

6

SHIM-RING,23.25X32.25X0.5

7557060

$2.39

7

BUSHING-P90X,29X22X17

5141303

$6.39

8

ASM-HELIX,MACH [INCL. 8,10,12]

1327306

$183.99

9

PIN-DRIVEN,ROLLER,12MM,CAP

5143130

$8.79

10

RING-SNAP,INT,39X1.5

7710934

$3.19

10

RING-SNAP,INT,39X1.5

7710934

$3.19

11

RING-SNAP,INT,36X1.5

7710935

$3.19

11

RING-SNAP,INT,36X1.5

7710935

$3.19

12

BEARING-MU,35X20

3515175

$9.59

13

SPRING-DRIVEN,160-260

7046030

$51.99

14

CUP-DRIVEN SPRING,P90X

5634403

$12.79

15

BEARING-MU,32X36X20

3515162

$6.39

16

SCR-HHSEMS-M10X1.5X40 10.9 SPC

7521294

$5.59

17

ASM-MOVEABLE SHEAVE

1323812

$127.99

18

PLATE-WINDAGE,DRIVE

5269528

$12.79

19

SCR-TXBH-M5X0.8X8 SPC TRILOBE

7521023

$3.19

20

ROLLER-8X22X12.5,PAI,CAP

5456608

$52.79
