ENGINE, AIR INTAKE SYSTEM - Z23N4V99AL/BL/AR/BR (C701348)

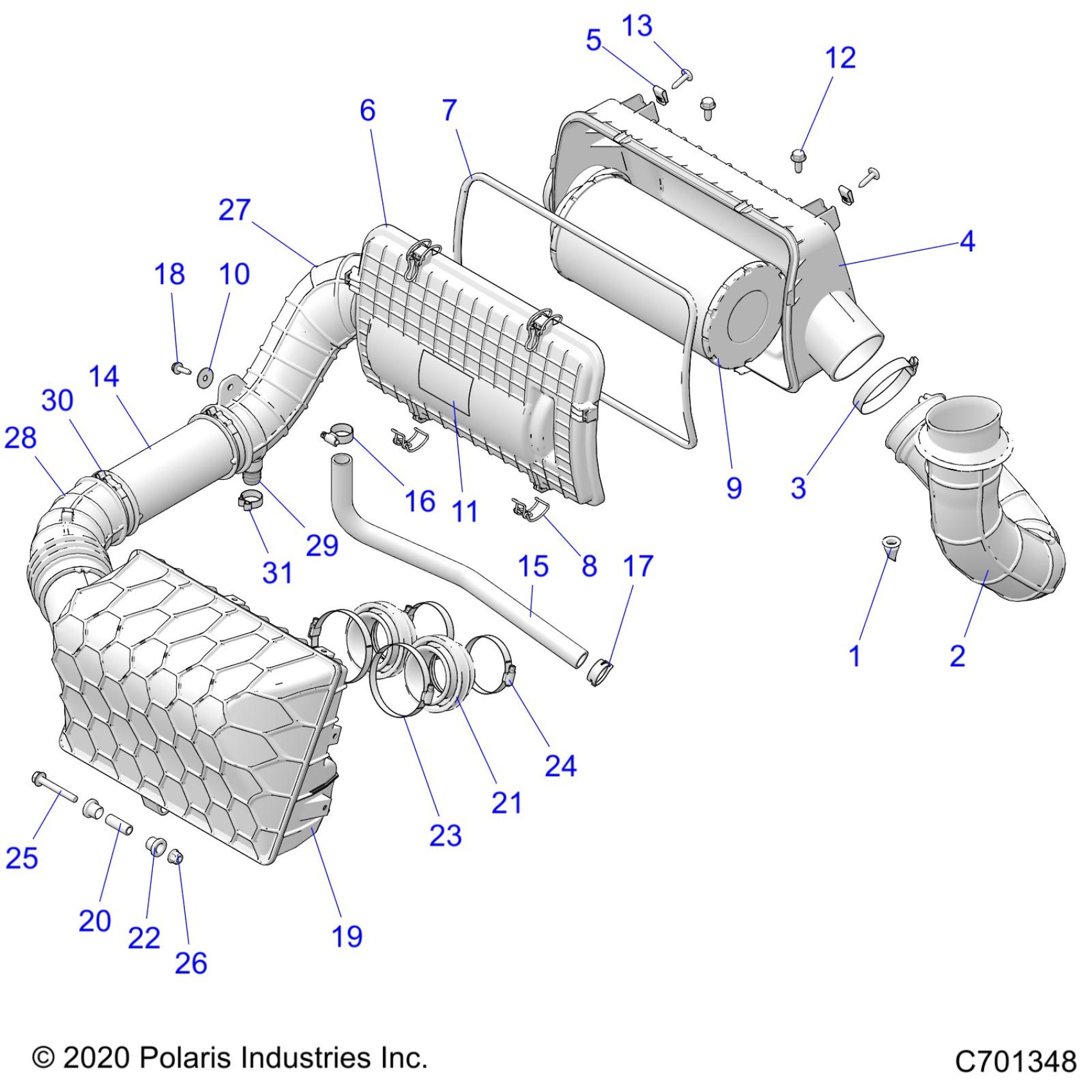

Polaris RZR XP 4 1000 PREMIUM (R01) - Z23N4V99AL/BL/AR/BR ENGINE, AIR INTAKE SYSTEM - Z23N4V99AL/BL/AR/BR (C701348) Diagram
#
Description
Price
1
PLUG-DRAIN
5414472
$5.59
2
HOSE, AIRBOX, IN
5414691
$103.99
3
CLAMP,HOSE,3.75,SS
7080907
$11.19
4
ASM., AIRBOX HOUSING [INCL. 5]
1240747
$87.99
5
NUT-M6-1.0, U-TYPE (2.5-3.8)
7547674
$1.49
6
ASM., AIRBOX COVER [INCL. 7,8]
1240748
$71.99
7
SEAL, AIRBOX
5813929
$27.99
8
CLIP, AIRBOX
7081872
$5.59
9
ASM-FILTER
1241084
$35.99
9
K-FILTER,AIR,ULTRA,PERF,RZN HD Air Filter Kit
2882234
$59.99
10
WASHER-.281X1.00X.051
7556329
$1.49
11
DECAL-CAUT.AIR BOX
7182652
Unavailable
12
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$2.39
13
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
14
ASM., INTAKE DUCT
1240770
$139.99
15
HOSE, VENT
5414671
$35.99
16
CLAMP, HOSE WORM GEAR 1.25
7080614
$7.19
17
SPRINGBAND-CLAMP 27/12,GREEN
7080841
$7.19
18
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
19
INTAKE, ENGINE HOUSING
1240749
$147.99
20
SHAFT-COMPRESSION LMTR,34.4MM
5138987
$14.39
21
BOOT, THROTTLE BODY
5414570
$47.99
22
BUSHING-MOUNT
5414719
$2.39
23
CLAMP-WORM DRIVE,.44WX3.75 DIA(10)
7080812
$19.99
24
CLAMP-WORM GEAR,44-70MM,HOSE
7081623
$3.19
25
SCR-HXFL-M8X1.25X60 8.8 ZOD
7519298
$3.99
26
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
27
HOSE-INTAKE,AIRBOX OUT
5414652
$45.59
28
HOSE-INTAKE,ENG HOUSING
5414670
$27.99
29
FITTING-3/4 DOUBLE BARB
7052580
$5.59
30
CLAMP-HOSE
7081902
$10.63
31
CLAMP-HOSE
7081903
$7.19
