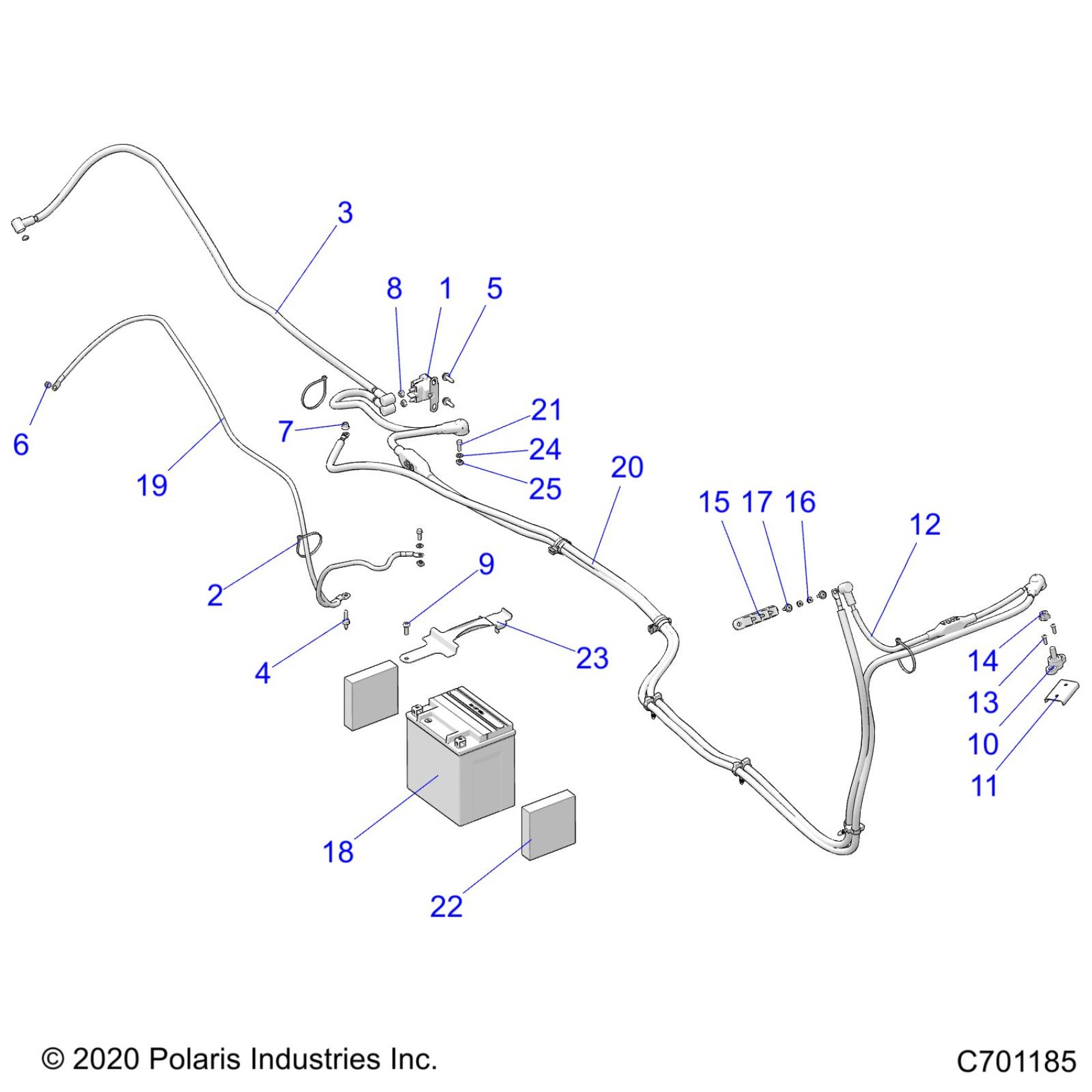

Polaris RZR XP 4 1000 HIGH LIFTER (R02) - Z22N4M99AR ELECTRICAL, BATTERY - Z22N4M99AR (C701185) Diagram

#

Description
Price

1

SOLENOID-STARTER,SEALED

4014655

$49.99

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CABLE-START TO SOLENOID

4015426

$35.99

4

STUD-M6X1.0X19-M6 TAPTITE

7519333

$7.99

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

6

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

7

NUT-M6 FLANGE,NYLOC

7547274

$1.49

8

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

9

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99

10

BLOCK-JUNCTION

4011615

$27.99

11

BRKT-MTG,B+ POST,BLK

5264769-329

$11.99

12

CABLE-JUMPER,ACCY,FUSED [TO 6/13/2022]

4017147

Unavailable

12

CABLE-JUMPER,ACCY,FUSED [FROM 6/13/2022]

4080976

$67.99

13

SCR-#10-24X5/8PN/TR-RDTORX-Y

7517756

$1.49

14

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

15

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

16

NUTS, KEPS, 10-32

7547341

$1.49

17

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

18

BATTERY-30AH,12 VOLT,AGM

4014609

$199.98

19

CABLE, GROUND, ENGINE, BATTERY, CHASSIS

4015052

$43.99

20

CABLE-SET,PRI PWR,FUSED [TO 6/13/2022]

4018034

$187.99

20

CABLE-SET,PRI PWR,FUSED [FROM 6/13/2022}

4080979

Unavailable

21

SCREW-HXFL-M6X1.0X16 8.8 ZY3

7518548

$1.59

22

PAD, BATTERY, FOAM, HC

5814177

$10.39

23

STRAP, BATTER, MAIN, HC, MATTE BLACK

5260220-458

$19.99

24

WASHER-1/4 SPRING LOCK-Y

7552801

$1.59

25

NUT-BATTERY,M6X1.0 ZPC

7547948

$3.19
