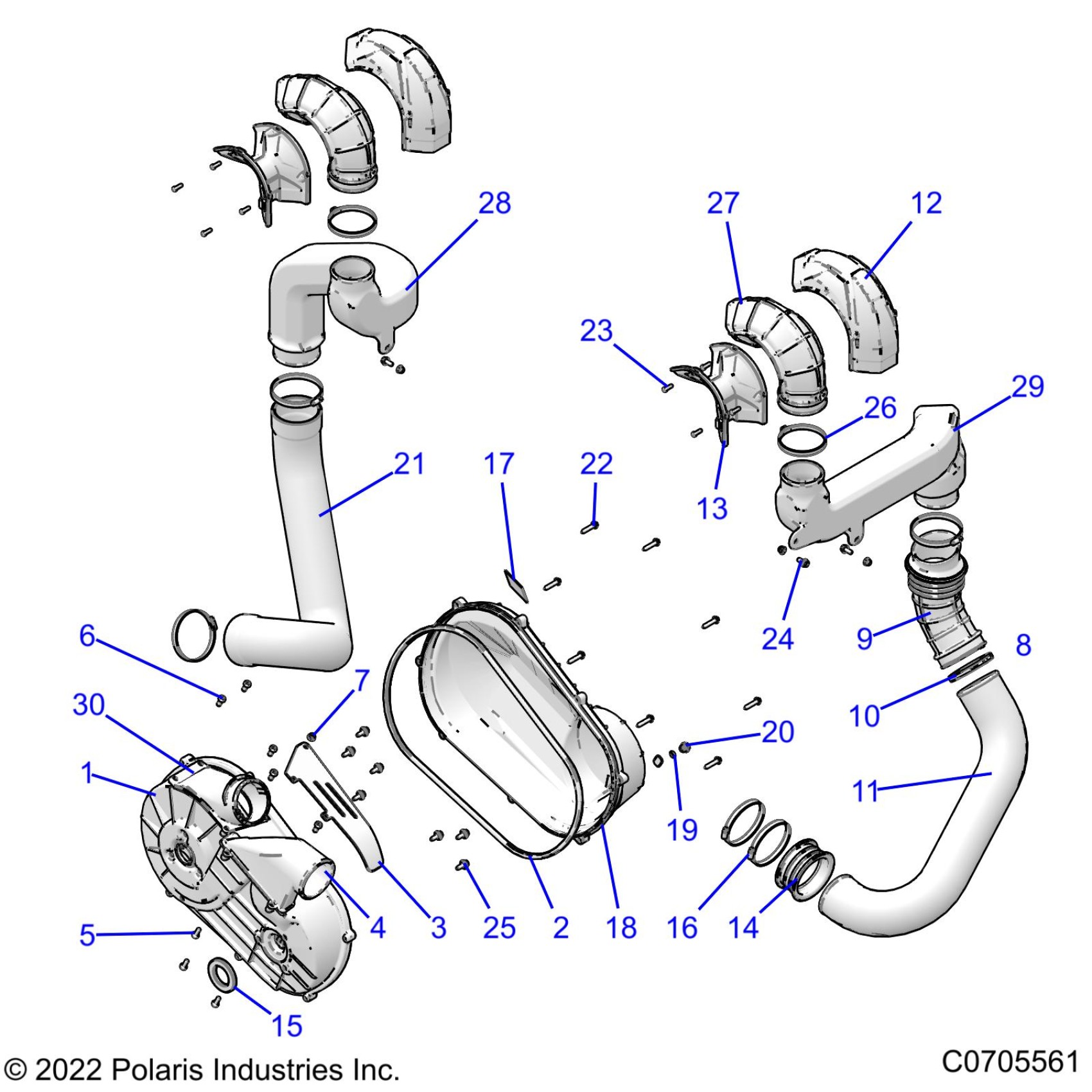

Polaris RZR XP 4 1000 HIGH LIFTER (R02) - Z22N4M99AR DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z22N4M99AR (C0705561) Diagram

ASM., COVER, CLUTCH, INNER [INCL. 2-6, QTY 3 OF 7]

2635158

$159.99

SEAL, COVER, CLUTCH, OUTER

5521831

Unavailable

BRKT-GUARD,CLUTCH COVER

5256223

$35.99

DUCT-CLUTCH,AIR INLET

5439086

$39.99

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.19

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

ASM., INTAKE, CLUTCH DUCT [INCL. 9-11]

1240782

$131.99

HOSE, CLUTCH, AIR IN

5414580

$87.99

CLAMP-HOSE,OETIKER,94.8-98

7081914

$10.39

DUCT, INTAKE, CLUTCH AIR

5450655

$99.99

CVR-PLAST,INTAKHOSE,TOP,GH GRY

5451616-728

$47.99

COVER, PLASTIC, INTAKE HOSE, BOTTOM, BLACK

5451617-070

$39.99

BOOT, INTAKE, CLUTCH

5813639

$10.39

SEAL-COVER,PTO

5813708

$23.99

CLAMP-WORM DRIVE,3.69 DIA

7081626

$7.99

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

ASM., COVER, CLUTCH, OUTER [INCL. 17, 19, 20]

2207124

$179.99

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

HOSE, CLUTCH, AIR OUTLET, HC

5415126

$127.99

SCREW-NXFL-M6X35 ZOD HILO

7519330

$3.99

SCREW-TXPH-#10x1.0 ZPB HI/LO

7520164

$1.59

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

SCR-TFHFL-M6X1.0X20 S/R ZOD

7519278

$4.79

CLAMP, HOSE

7081996

$23.99

HOSE, INLET, HC

5415215

$51.99

DUCT, CLUTCH, EXHAUST, HC

5451475

$67.99

DUCT, CLUTCH, INTAKE, HC

5451474

$67.99

DUCT, CLUTCH, AIR OUTLET

5450846

$39.99
