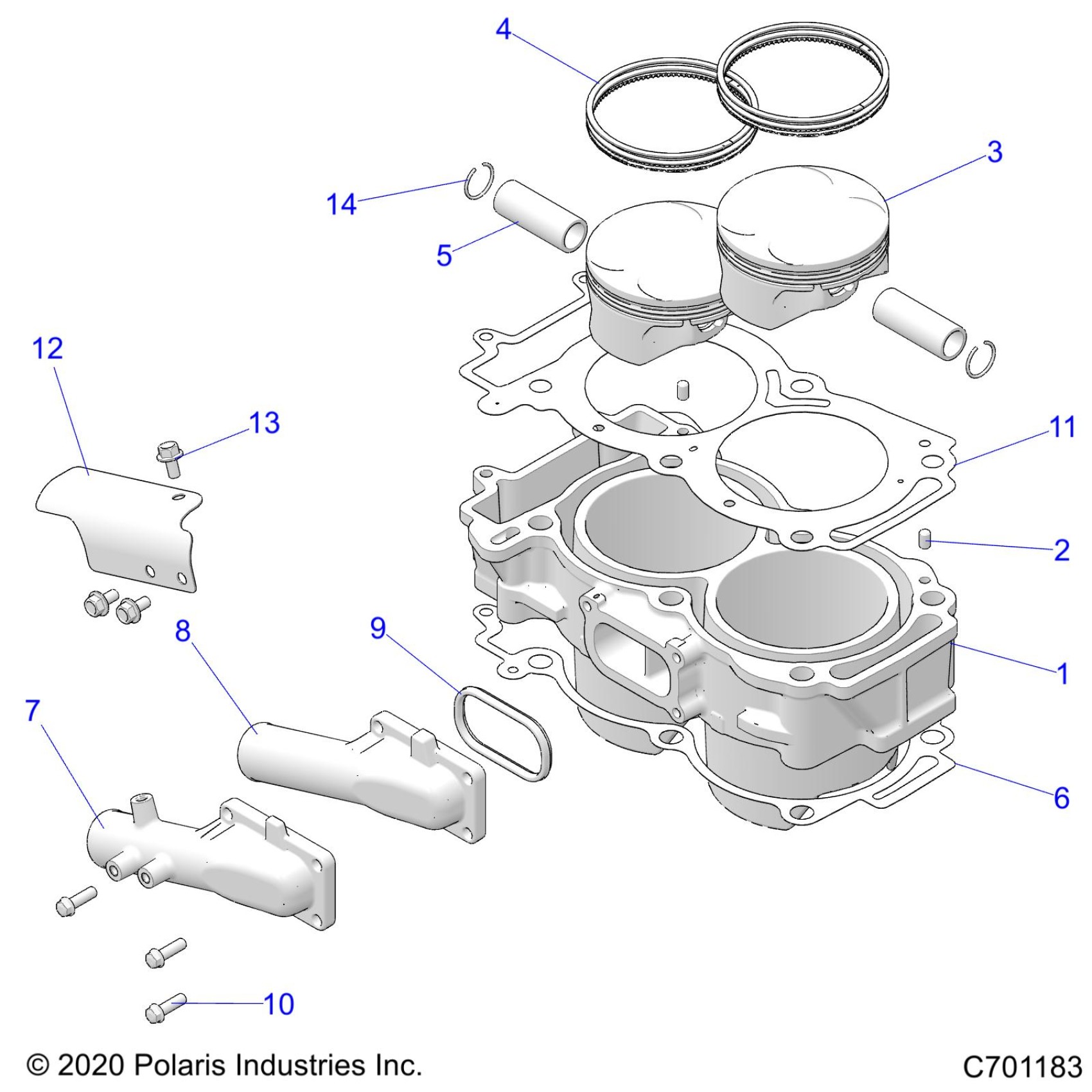

Polaris RZR XP 4 1000 HIGH LIFTER (R02) - Z21N4M99AG ENGINE, CYLINDER AND PISTON - Z21N4M99AG (C701183) Diagram

#

Description

Price

1

ASM-CYLINDER,999 [INCL. 2]

3023156

$479.69

2

PIN-DOWEL,M6X10

5132835

$2.39

3

KIT-PISTON 3022567 [INCL. 4-5,14]

2205244

$189.99

4

KIT-PISTON RINGS

2205245

Unavailable

5

PIN-PISTON

3022358

$23.99

6

GASKET, BASE, 2 CYL

5253037

$32.37

7

COVER-WATER INLET,MACH

5141311

$31.99

8

COVER, WATER INLET, CAST [NOT USED]

-------

Unavailable

9

GASKET-WATER,INLET

5813736

$24.27

10

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

11

GASKET, CYLINDER, HEAD

5813737

Unavailable

12

SHIELD-HEAT BOLTED,COOLANT �

5265306

$10.39

13

SCR-HXFL-M6X1.0X12 8.8 �

7520710

$3.99

14

RING-RTG,ROUND,20.0X1.6

3022413

$3.99
