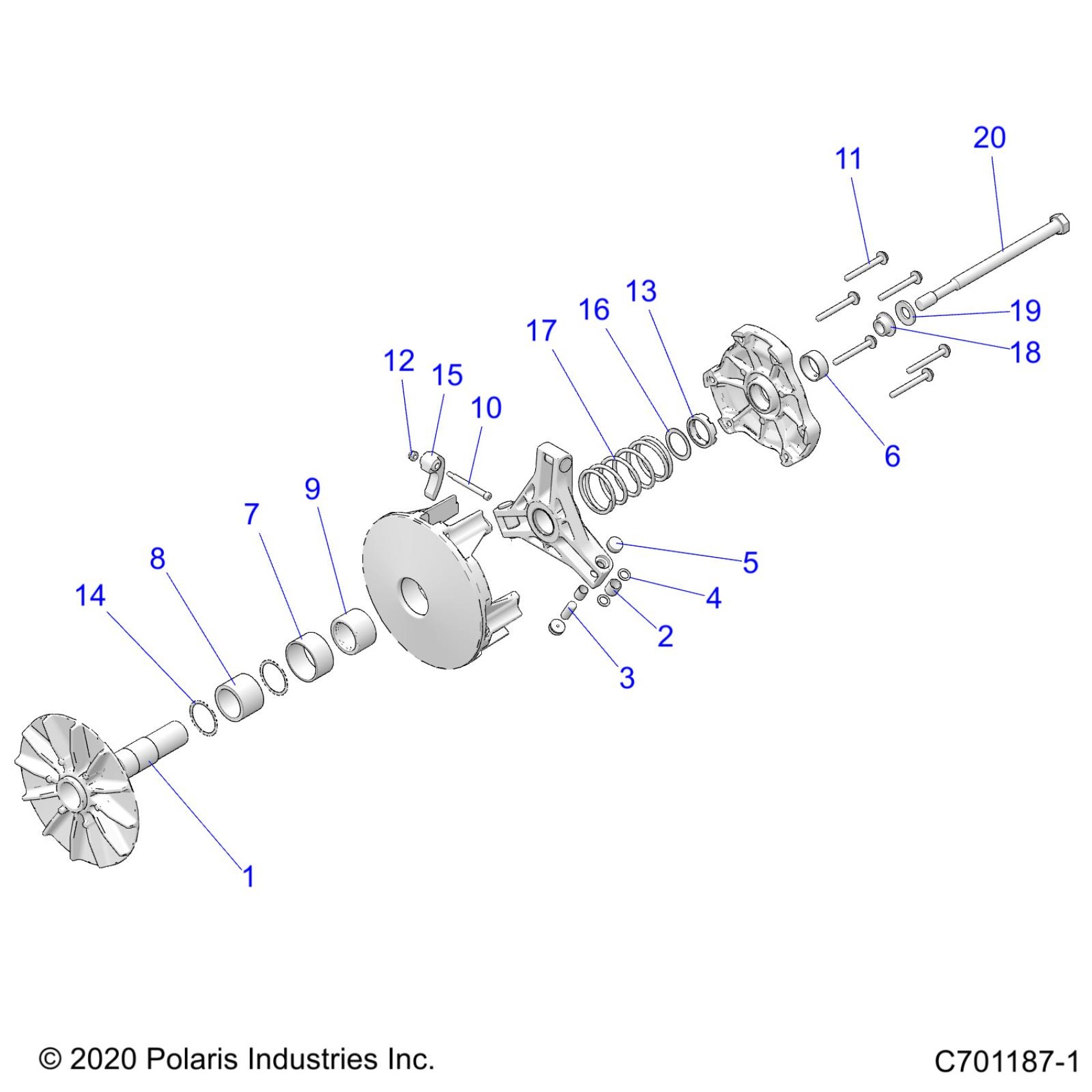

Polaris RZR XP 4 1000 HIGH LIFTER (R02) - Z21N4M99AG DRIVE TRAIN, PRIMARY CLUTCH - Z21N4M99AG (C701187-1) Diagram

#

Description
Price

1

ASM., DRIVE CLUTCH, BASIC, BEARING [INCL. 2-14]

1323317

$613.07

2

ASM-ROLLER AND BUSHING

1321622

$32.37

3

PIN-ROLLER

5020422

$2.39

4

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

5

BUTTON, CLUTCH, RUBBER BACKED

5450940

$7.99

6

BEARING, COVER,(10)

3576510

$9.59

7

BEARING-DU,1.75ID

3514492

$31.99

8

BEARING-NEEDLE

3514609

$35.99

9

SPACER, CLUTCH, TALL, PM

5632894

$43.99

10

SCR-SH-1/4X2 SAE4037 BLKOX&OIL

7512266

$3.19

11

SCR-1/4-20X2 1/4 HX FLNG GR5-Y

7518349

$1.49

12

NUT-10-24-FLEX LOC-Z

7541906

$3.19

13

NUT, JAM

7547498

$23.99

14

WASHER-CLUTCH,VESPEL

7556335

$6.39

15

WEIGHT, SHIFT, 29-70, PM

5633321

$31.99

16

SPACER, CLUTCH, LIMITER

5438963

$3.99

17

SPRING-CLUTCH,58-105

7044465

$19.99

18

WASHER-CLUTCH RET,M14

5132441

$23.99

19

WASHER-BLVL,.567X1.125X.118-Y

7556003

$6.39

20

SCR-M14X1.5X215,HX,10.9,Y35,R

7518412

$34.99
