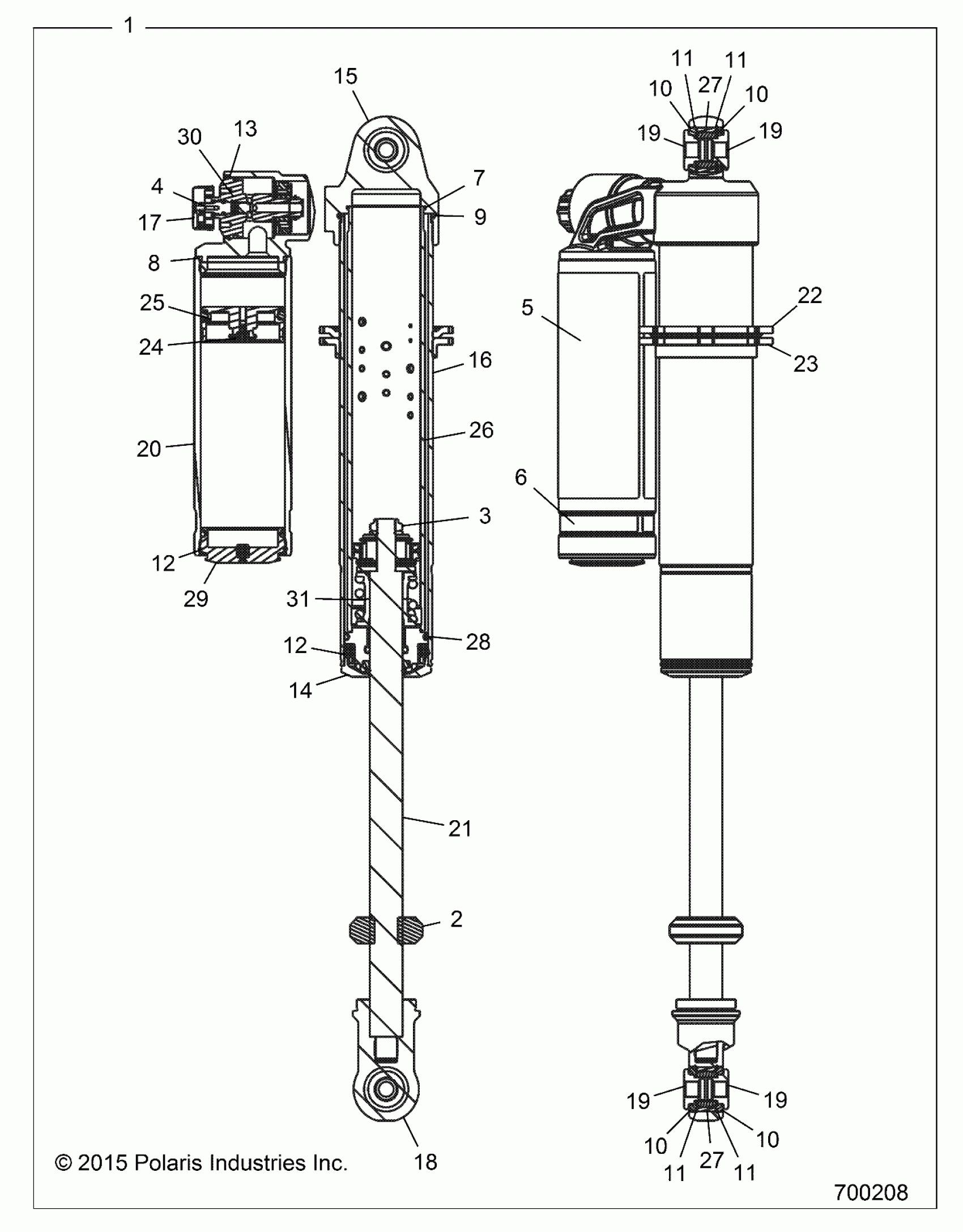

Polaris RZR XP 1000 - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU SUSPENSION, FRONT SHOCK (7044374/5) - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU (700208) Diagram

#

Description
Price

1

Plate: Back-Up [0.875 OD X 0.503 ID X 0.100 TH] [NOT SHOWN]

1500841

$10.39

1

Plate, Top Out [NOT SHOWN]

1500943

$31.99

1

Plate: Top-Out [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 Shaft] [NOT SHOWN]

1500838

$12.79

1

SHOCK, FRONT LH [INCL ALL]

7044374

$718.51

1

SHOCK, FRONT RH [INCL ALL]

7044375

$718.51

1

KIT-SHOCK REBUILD

1501097

Unavailable

2

BUMPER: B/O [� 0.620 SHAFT, .700 TLG] MCU, BLACK

1500866

$31.99

3

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

1500842

Unavailable

4

SCREW, #4, SS PAN

1501011

$13.59

5

Decal: Reservoir [4.50 X 8.04] Internal Bypass

1501045

$11.54

6

Decal: Band [.45 X 7.63] Performance Series

1501046

$7.10

7

SEALS:O-RING [(-033) .070 C.S. X 1.989 ID] STANDARD, N-70, STATIC

1501047

$8.87

8

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

1501048

$8.87

9

SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

1501049

$8.87

10

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

10

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

10

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

10

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC

1501050

$7.59

11

RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL

1501051

$15.10

11

RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL

1501051

$15.10

11

RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL

1501051

$15.10

11

RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL

1501051

$15.10

12

WIRE, RETAINING RING

1500960

$3.73

12

WIRE, RETAINING RING

1500960

$3.73

13

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

14

Bearing Cap: [� 2.250 Bore, .� 0.875 Shaft] No Scraper, Press-in, Clear Ano II

1501053

$31.10

15

Body Cap: (T) Piggyback, High Flow, 135� [� 2.250 Bore, � 2.250 Bore Reservoir]

1501055

$154.99

16

BODY,2.25X12.1TLG

1501056

$144.03

17

KNOB,LOW SPD,BLK

1501057

$10.65

18

Eyelet Parts: [� 1.1866 Bore X 0.900 W, 5/8-18 UNF] .875 Shaft, Special Retainer

1501058

$84.43

19

REDUCER, 0.56 TLG

1501092

$27.99

19

REDUCER, 0.56 TLG

1501092

$27.99

19

REDUCER, 0.56 TLG

1501092

$27.99

19

REDUCER, 0.56 TLG

1501092

$27.99

20

RESERVOIR

1501093

$95.99

21

Shaft: (T) [0.875 OD, 14.500 TLG] Steel, Chrome, Solid, 1.400" Post Length

1501059

$109.99

22

RING, PRELOAD, BU

1500955

$10.27

23

RING, PRELOAD

1500956

$10.27

24

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1500161

Unavailable

25

PISTON ASSEMBLY: FLOATING [�2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

1501060

$79.99

26

Body Assembly: Internal Bypass, 3-Pad, for 932-50-027 & 932-50-028

1501061

$133.99

27

BEARING: SPHERICAL [� 0.625 BORE X � 1.1875 OD] COM 10, BK LINER, CCVI

1501044

$65.46

27

BEARING: SPHERICAL [� 0.625 BORE X � 1.1875 OD] COM 10, BK LINER, CCVI

1501044

$65.46

28

Bearing Assembly:[�2.250 Bore,�0.875 Shaft],Internal Bypass,Cinch Ring, T-Seal

1501062

$88.87

29

RESERVOIR END CAP ASSEMBLY: [� 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

1501063

$124.99

30

Damping Adjust Assembly: LSC Adjuster [� 1.435 Bore] High Flow, Slotted Needle

1501064

$95.99

31

Spring Hardware Assembly: Negative Spring Guide, � 0.875 Shaft [450 lbs/in]

1501065

Unavailable
