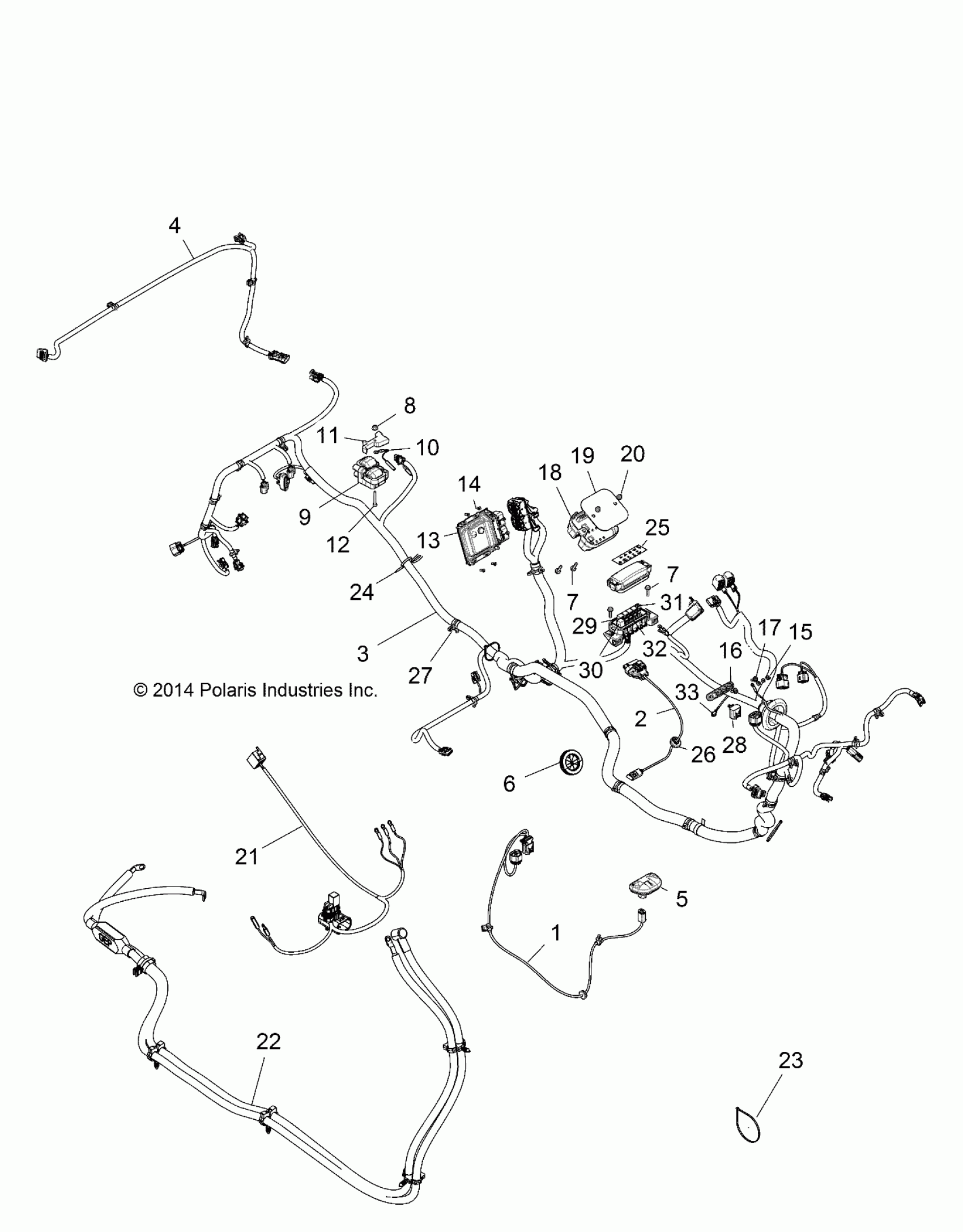

Polaris RZR XP 1000 - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU ELECTRICAL, WIRE HARNESS - Z15VDK99AA/AU (49RGRHARNESS151000AA) Diagram

#

Description
Price

1

HARNESS, GPS RECEIVER

2412817

$75.99

2

HARNESS, USB

2412818

$47.99

3

HARNESS, CHASSIS, EPS [INCL. 24-33][BUILT 3/31/15 AND AFTER]

2413232

$1,064.79

3

HARNESS, CHASSIS, EPS [INCL. 24-33][BUILT 3/30/15 AND BEFORE]

2412849

Unavailable

4

HARNESS, BOX

2412884

$55.99

5

GPS, ANTENNA, RECEIVER, CAN

4014811

$387.19

6

GROMMET, ELECTRICAL, CAB

5414440

$7.19

7

BOLT

7518576

$3.19

7

BOLT

7518576

$3.19

8

NUT-M6 FLANGE,NYLOC

7547274

$1.49

9

COIL-EFI

4010425

Unavailable

10

JUMPER, COIL GROUND

4014422

$27.99

11

SPACER-COIL MOUNT

5436577

$3.99

12

SCREW

7518780

$3.99

13

ECM, NO START, ME17

4014125

$694.99

14

SCREW

7519091

$3.19

15

NUTS, KEPS, 10-32

7547341

$1.49

16

BLOCK, TERMINAL, 3 POST

4011892

$27.99

17

Screw

7518196

$1.49

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

REGULATOR-3PH,50A,SERIES,HISPD

4014856

Unavailable

18

K-REGULATOR ADAPTER [INCLS. REGULATOR, HARNESS, BOLTS, NUTS]

2206367

$101.19

18

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.99

18

HARNESS-REGULATOR ADAPTE

2413573

$87.99

19

PLATE, HEAT SINK, REGULATOR

5254970

Unavailable

20

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

21

HARNESS, DASH LIGHT

2412608

$131.99

22

CABLE, ACCY, BATTERY TO TERMINAL BLOCK

4015217

$167.99

23

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

24

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

25

LABEL, FUSE BOX

7180884

Unavailable

26

CLIP, ROUTING, DIN BOX

7082020

$5.59

27

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

28

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

29

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

30

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

31

FUSE-PARK,20 AMP

2434017

Unavailable

32

FUSE-IGNITION,10 AMP

2434016

$4.79

33

LED, PANEL, MOUNT

2412443

Unavailable
