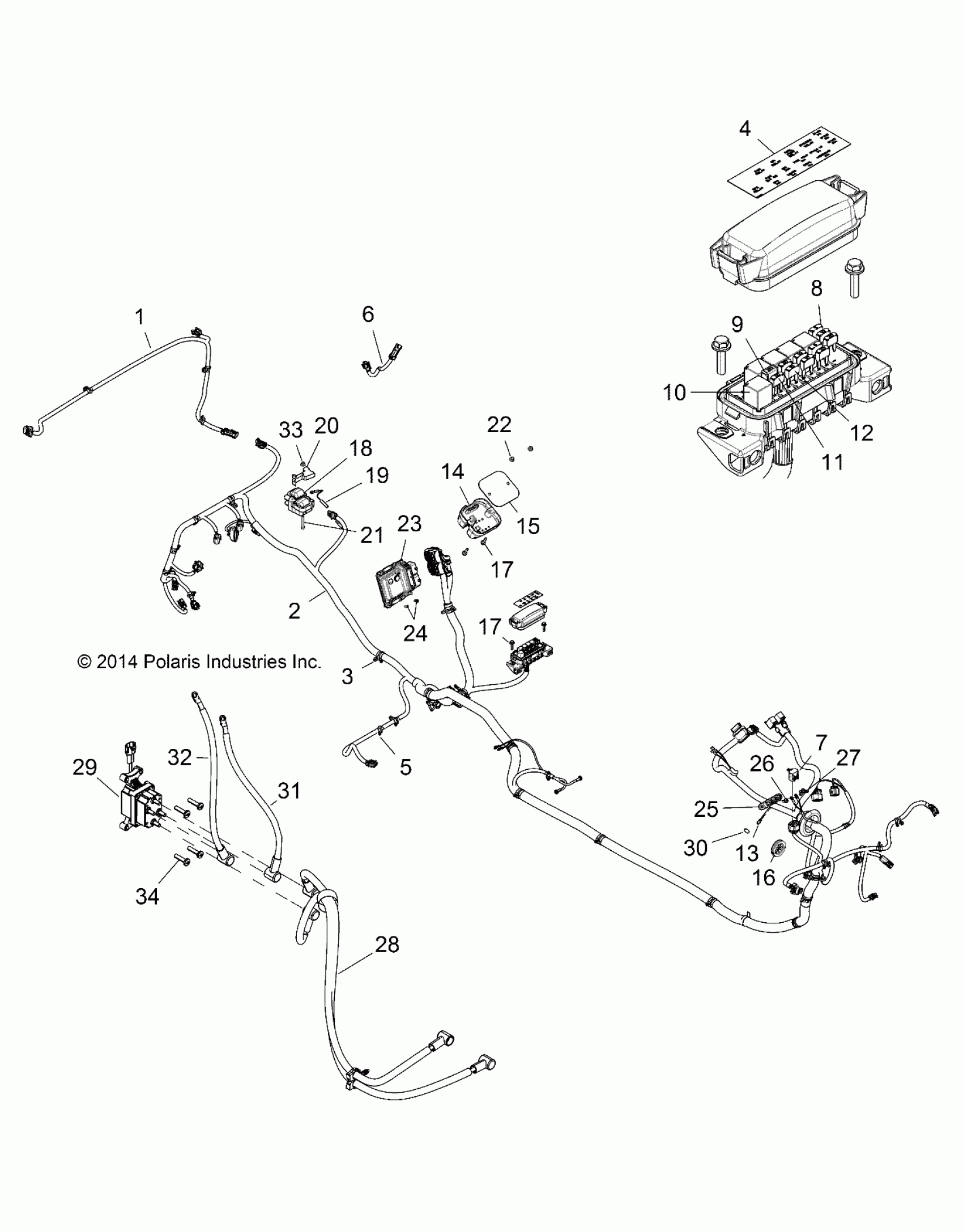

Polaris RZR XP 1000 - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU ELECTRICAL, WIRE HARNESS - Z15VDE99AT/AL/AV/AW/LP/AO/AP/AZ/NV/NW (49RGRHARNESS151000) Diagram

HARNESS, BOX

2412884

$74.99

HARNESS, CHASSIS [AT][AV][AW][LP][AO][AP][AZ][NV][NW][BUILT 3/31/15 AND AFTER]

2413232

$1,299.99

HARNESS, CHASSIS [AT][AV][AW][LP][AO][AP][AZ][BUILT 3/30/15 AND BEFORE]

2412849

$1,299.99

HARNESS, CHASSIS [AL]

2412921

$1,349.99

CABLE-TIE,DIA6-38MM,DUAL-LOOP [AL QTY 9]

7081916

$4.84

LABEL, FUSE BOX

7180884

Unavailable

LABEL, FUSE BOX [AL]

7182155

$48.87

CLIP FIR-TREE,DIA6-33MM [AL QTY 16]

7081496

$4.76

WIRE, THERMISTER LEAD

4014319

$94.99

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

FUSE-25A,MINI BLADE

4011653

$8.89

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

FUSE-PARK,20 AMP [USE W/2412849]

2434017

$8.08

FUSE-IGNITION,10 AMP

2434016

$5.65

LED, PANEL MOUNT

2412443

$52.60

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

REGULATOR-3PH,50A,SERIES,HISPD

4014856

$156.74

K-REGULATOR ADAPTER [INCLS. 2206367 REGULATOR, 4014856 HARNESS, 2X 7519202 BOLTS, 2X 7547339 NUTS]

2206367

$109.24

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.97

HARNESS-REGULATOR ADAPTE

2413573

$114.99

PLATE, HEAT SINK, REGULATOR

5254970

Unavailable

GROMMET

5414440

$7.14

BOLT, FLANGE, BLACK

7518576

$3.17

BOLT, FLANGE, BLACK

7518576

$3.17

COIL-EFI

4010425

$242.84

JUMPER ,COIL GROUND

4014422

$32.37

SPACER-COIL MOUNT

5436577

$3.97

SCREW

7518780

$3.97

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

ECM, NO START

4014125

$749.99

SCREW

7519091

$3.17

BLOCK, TERMINAL, 3 POST

4011892

$32.37

Screw

7518196

$1.19

NUT

7547341

$0.79

CABLE, CONTACTOR TO WINCH [AL]

4015044

$76.89

CONTACTOR, WINCH [AL]

4013465

$104.49

CLIP, ROUTING

7082020

$5.56

CABLE, POWER, WINCH, BLACK [AL]

4013470-375

$36.41

CABLE, POWER, WINCH, RED [AL]

4013471-370

Unavailable

NUT-M6 FLANGE,NYLOC

7547274

$1.19

SCR-#14X1 HI/LO-PH-PN TRX-M [AL]

7518158

$4.76
