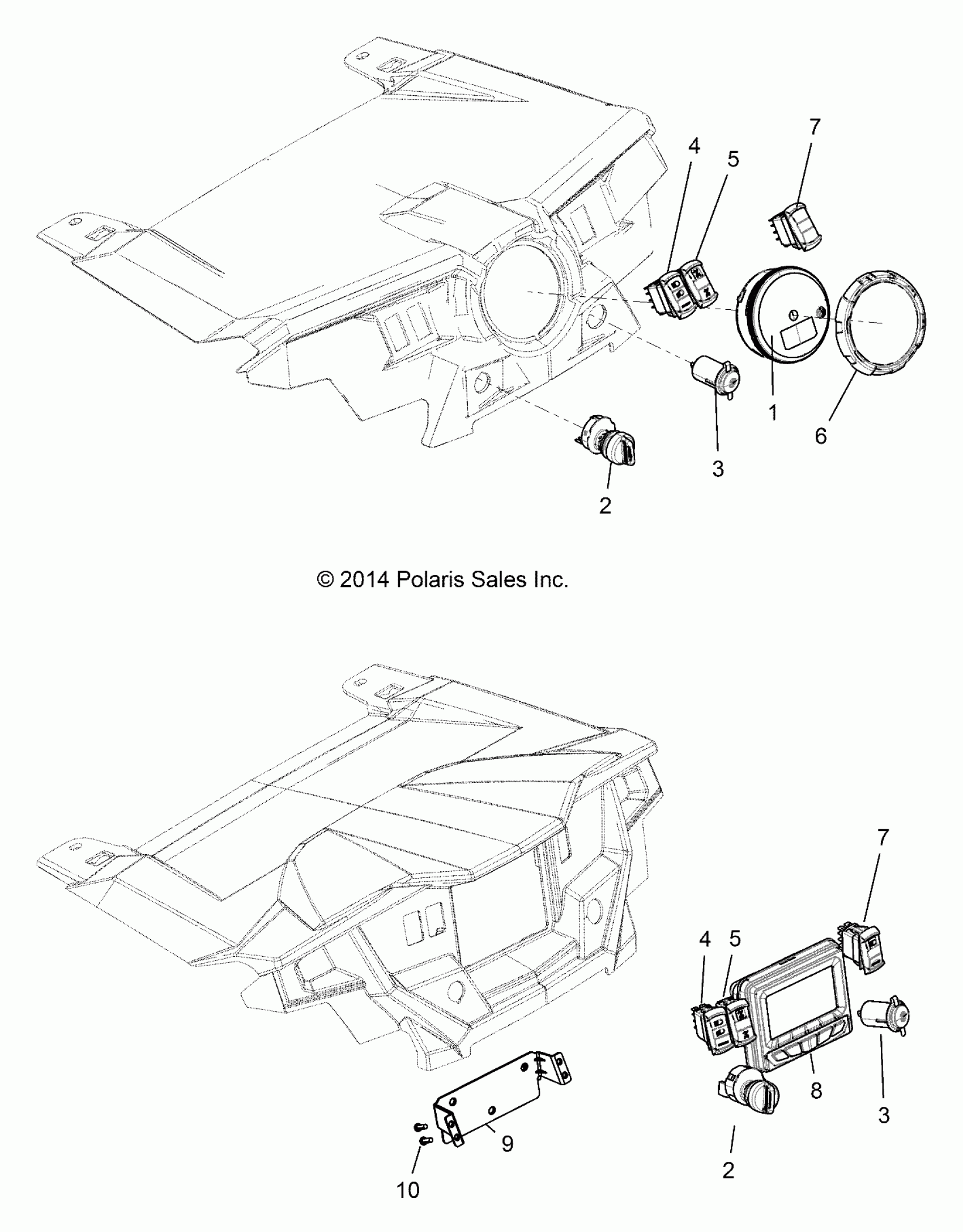

Polaris RZR XP 1000 - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU (49RGRDASH151000) Diagram

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$44.51

ASM., CLUSTER [INCL. RUBBER MOUNT][AL]

3280571

$399.99

ASM., CLUSTER [AT][AV][AW][LP][AO][AP][AZ][NV][NW][BUILT 3/31/15 AND AFTER]

3280607

$399.99

SWITCH, KEY, 3 POSITION [AT][AV][AW][LP][AO][AP][AZ][AU][NV][NW]

4012165

$109.27

SWITCH, KEY, 3 POSITION, SEALED [AL]

4015033

$62.92

SWITCH, KEY, 3 POSITION [AT][AV][AW][LP][AO][AP][AZ][AU][NV][NW]

4012165

$109.27

SWITCH, KEY, 3 POSITION, SEALED [AL]

4015033

$62.92

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

SWITCH, HEADLIGHT

4014069

$89.03

SWITCH, HEADLIGHT

4014069

$89.03

SWITCH, AWD [AT][AV][AW][LP][AO][AP][AZ][AU][NV][NW]

4014673

$67.76

SWITCH, AWD, SEALED [AL]

4015034

$106.49

SWITCH, AWD [AT][AV][AW][LP][AO][AP][AZ][AU][NV][NW]

4014673

$67.76

SWITCH, AWD, SEALED [AL]

4015034

$106.49

BEZEL, INSTRUMENT CLUSTER, INDY RED [AT]

5438945-293

$15.37

BEZEL, INSTRUMENT CLUSTER, WHITE LIGHTNING [AW][LP][AZ][AP][NW]

5438945-599

$15.37

BEZEL, INSTRUMENT CLUSTER, ORANGE MADNESS [AL][EW][AO]

5438945-589

$15.37

BEZEL, INSTRUMENT CLUSTER, VOODOO BLUE [AV][NV]

5438945-619

$32.37

SWITCH, WINCH, SEALED [AL]

4015043

$104.49

SWITCH, LIGHT, ACCY [AA]

4014558

$62.92

SWITCH, WINCH, SEALED [AL]

4015043

$104.49

SWITCH, LIGHT, ACCY [AA]

4014558

$62.92

DISPLAY, DIGITAL, M FUNCTION, PROGRAM [AA][AU]

3280612

$849.99

BRACKET, MOUNT, BLACK [AA][AU]

5451298-070

$28.32

SCREW [AA][AU]

7512076

$1.19
