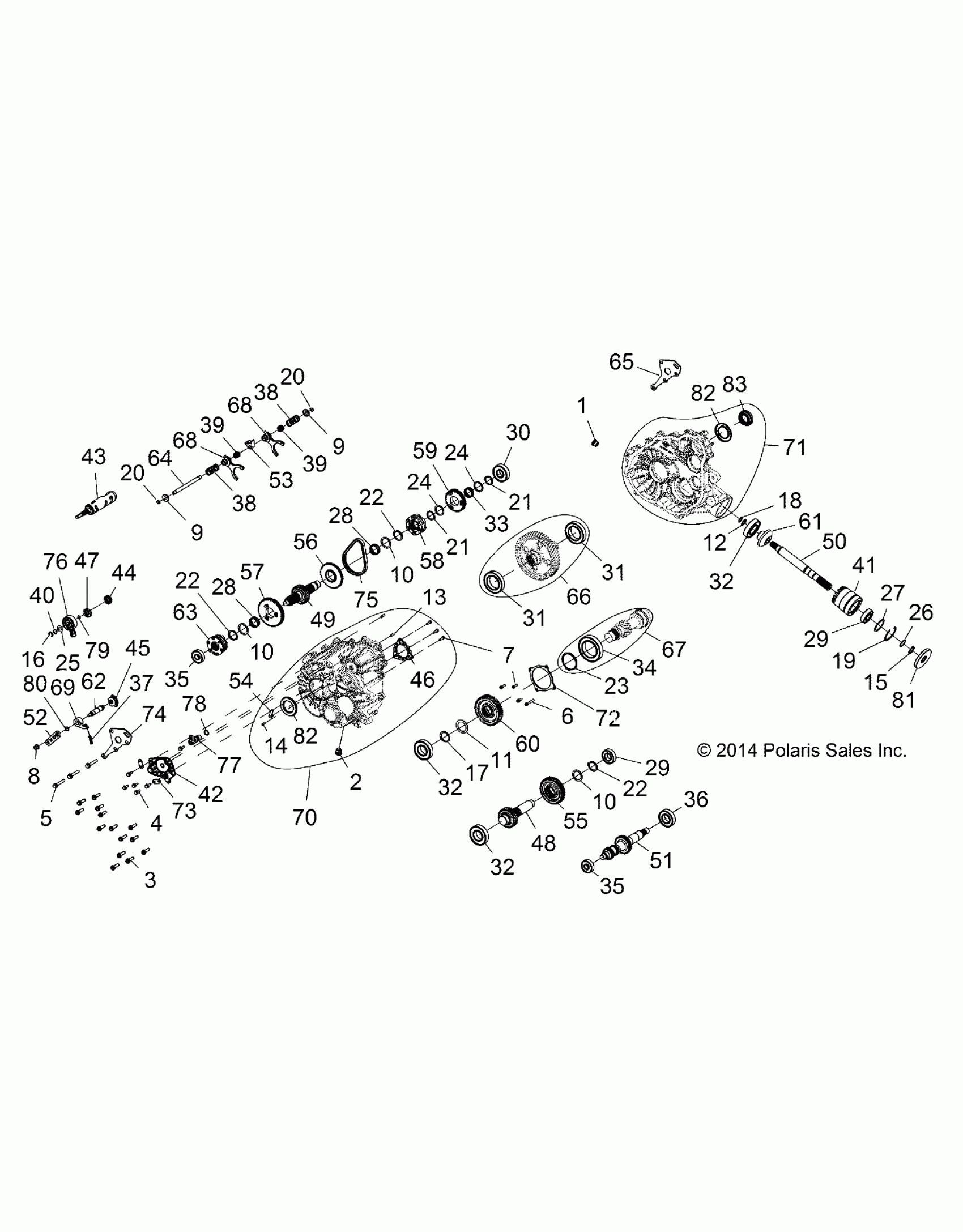

Polaris RZR XP 1000 - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z15VDE99AT/AV/AW/LP/AO/AP/AZ/NV/NW/K99AA/AU (49RGRGEARCASE1333349) Diagram

#

Description
Price

-

ASM., GEARCASE, COMPLETE [INCL. ALL]

1333349

$4,119.99

1

PLUG, M18 X 1.5

3234755

$27.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

SCREW, HEX FLANGE HEAD

3235206

$7.19

5

SCREW, HEX FLANGE

3235207

$10.39

6

SCREW, SOCKET HEAD, CAP

3235208

$11.19

7

SCREW, SOCKET HEAD, CAP

3235332

$3.99

8

NUT, LOCK HEX FLANGE, NYLON

3235210

$7.99

9

WASHER-CUP

3234091

$9.59

9

WASHER-CUP

3234091

$9.59

10

WASHER

3235211

$10.39

10

WASHER

3235211

$10.39

10

WASHER

3235211

$10.39

11

WASHER

3235212

$13.59

12

WASHER

3235213

$15.99

13

PIN, DOWEL 6 X 20

3234330

$7.19

14

PIN, SPRING, SLOTTED

7043746

$7.19

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

16

RING, SNAP

3233834

$10.39

17

RING, RETAINING, SHAFT

3233364

$6.39

18

RING, RETAINING, EXTERNAL

3234318

$3.19

19

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

21

RING, RETAINING

3234205

$11.19

21

RING, RETAINING

3234205

$11.19

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

23

RING, RETAINING, VSH-237

3235216

$10.39

24

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

24

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

25

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

26

SHIM

3234272

$31.99

27

SHIM

3234273

$12.79

28

BEARING, NEEDLE

3233014

$43.99

28

BEARING, NEEDLE

3233014

$43.99

29

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

29

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

30

BEARING

3233020

$47.99

31

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

31

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

32

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

33

BEARING, NEEDLE

3233384

$31.99

34

BEARING, BALL

3235218

$59.99

35

BEARING, BALL

3234652

$15.99

35

BEARING, BALL

3234652

$15.99

36

BEARING, BALL

3235496

$31.99

37

SPRING, COMPRESSION

3233830

$10.39

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

39

SPRING, COMPRESSION

3234089

$23.99

39

SPRING, COMPRESSION

3234089

$23.99

40

SPRING, WASHER

3235327

$9.59

41

TUBE, SNORKEL

3234278

$95.99

42

COVER, SECTOR GEARS

3234188

$107.99

43

DRUM-SHIFT,MACH.(255289)

3235463

$263.99

44

GEAR, SECTOR 16T

3233839

$31.99

45

GEAR-SECTOR,31T

3233832

$31.99

46

PLATE, PARK, 12-FACE

3235456

$35.99

47

DETENT STAR

3235603

$35.99

48

SHAFT, IDLER, 29T

3235223

$107.99

49

SHAFT, REVERSE, 29T

3235224

$143.99

50

SHAFT, FRONT OUTPUT

3235394

$131.99

51

SHAFT, INPUT, SLEEVED

3235492

$283.99

52

BELLCRANK, 92 DEGREE

3235227

$23.99

53

COLLAR-SHIFT

3234073

$31.99

54

TUBE, VENT

3234230

$9.59

55

GEAR-44T,STAGE2

3235229

$87.99

56

SPROCKET, 48T, 6-FACE

3235231

$79.99

57

GEAR, LOW, 67T

3235232

$115.99

58

ENGAGEMENT DOG, 6-FACE

3235233

$119.99

59

GEAR, 53T

3235234

$79.99

60

GEAR, 46T STAGE 3

3235236

$103.99

61

GEAR, 13T SNORKEL

3235237

$123.99

62

SHAFT-SHIFT(352973)

3235238

$37.61

63

SHIFT DOG, PARK

3235457

$135.99

64

RAIL, SHIFT SHAFT

3235542

$27.99

65

BRACKET, REAR MOUNT

3235558

$53.24

66

SUBASM., OUTPUT [INCL. BEARINGS]

3235335

$342.75

67

SUBASM.,SHAFT [INCL. BEARING, RETAINING RING]

3235336

$355.99

68

SUBASM., SHIFT FORK

3235454

$83.99

68

SUBASM., SHIFT FORK

3235454

$83.99

69

SUBASM.,, PAWL, DETENT, ROLLER

3235452

$31.99

70

SUBASM., RH CASE [INCL. ALL HARDWARE]

3235515

$499.83

71

SUBASM., LH CASE [INCL. ALL HARDWARE]

3235514

$499.83

72

COVER-BEARING,CNTR DR.

3235241

$43.99

73

BRACKET, WIRE HARNESS

3235350

$8.79

74

BRACKET, REAR MOUNT

3235559

$39.99

75

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

76

SWITCH, ROTARY , 2 PIN RESISTIVE

7661999

$111.99

77

SENSOR-SPEED

4082135

$103.99

78

O-RING, -016 VITON

3236279

$7.19

79

O-RING

3233836

$6.87

80

O-RING

3233828

$6.79

81

SEAL, TRIPLE LIP

3235658

$55.99

82

SEAL, TRIPLE LIP

3235052

$31.99

82

SEAL, TRIPLE LIP

3235052

$31.99

83

SEAL, TRIPLE LIP

3235495

$39.99
