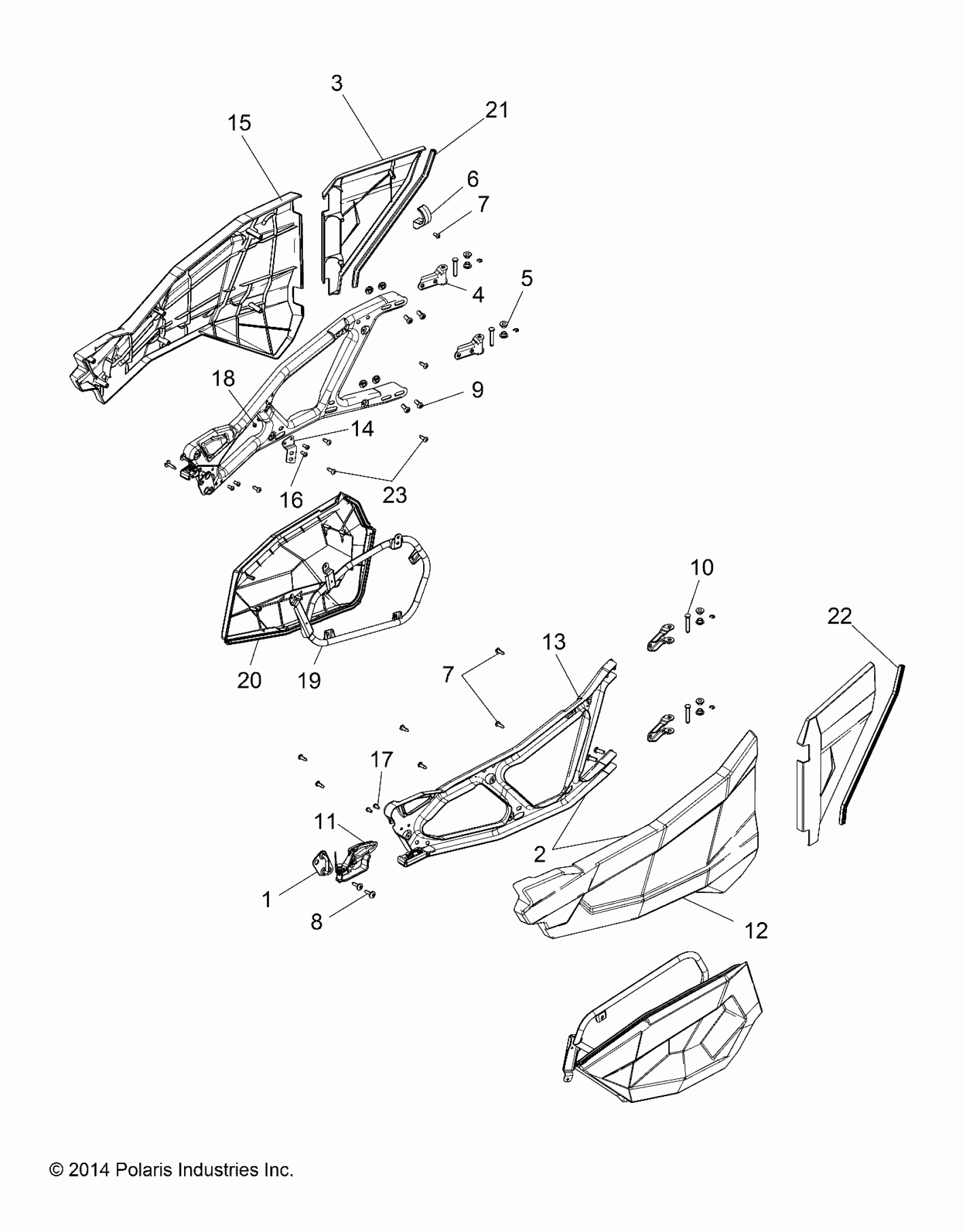

Polaris RZR XP 1000 - Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU BODY, DOORS - Z15VDE99AL/AA (49RGRDOOR151000AL) Diagram

#

Description
Price

1

STRIKER, WELD, LH

1021237

$39.68

1

STRIKER, WELD, RH

1021238

$39.68

2

ASM., DOOR, RH [INCL. 12-18 RH, 7, 16 QTY 6, 17-18 QTY 2]

----

Unavailable

2

ASM., DOOR, LH [INCL. 12-18 LH, 7, 16 QTY 6, 17-18 QTY 2]

----

Unavailable

3

ASM., BOLSTER, LH

2635693

$84.98

3

ASM., BOLSTER, RH

2635694

$84.98

4

BRACKET, DOOR, HINGE

5258008

$28.32

5

BUSHING, DOOR, PIVOT

5450592

$2.38

6

BRKT-J MOUNT,INJ,RZN

5451472

$16.17

7

SCREW

7517484

$4.76

7

SCREW

7517484

$4.76

8

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

9

SCREW

7519997

$3.97

10

PIN, DOOR, HINGE

7662138

$4.76

11

E-CLIP,M6, DIN 6799

7710466

$3.17

12

ASM., LATCH, DOOR, LH

2635305

$90.24

12

ASM., LATCH, DOOR, RH

2635306

$90.24

13

STAMPING, DOOR FRAME, LH

5257929-458

$157.84

13

STAMPING, DOOR FRAME, RH

5257930-458

$157.84

14

MOUNT, DOOR

5258254

$39.99

15

DOOR, SKIN, LH

5450636

$151.99

15

DOOR, SKIN, RH

5450638

$151.99

16

SCREW

7519045

$3.17

17

SCREW

7519063

$3.99

18

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

19

MOUNT, DOOR, LOWER, LH

1019994

$135.54

19

MOUNT, DOOR, LOWER, RH

1019999

$132.99

20

PANEL, DOOR, PLASTIC, LOWER, LH

5450616

$139.99

20

PANEL, DOOR, PLASTIC, LOWER, RH

5450617

$139.99

21

SEAL, WEATHER STRIP, LOWER, DOOR

5522024-180

$24.27

22

SEAL, WEATHER STRIP, LOWER, DOOR

5522024-837

$44.51

23

SCREW

7519045

$3.17
