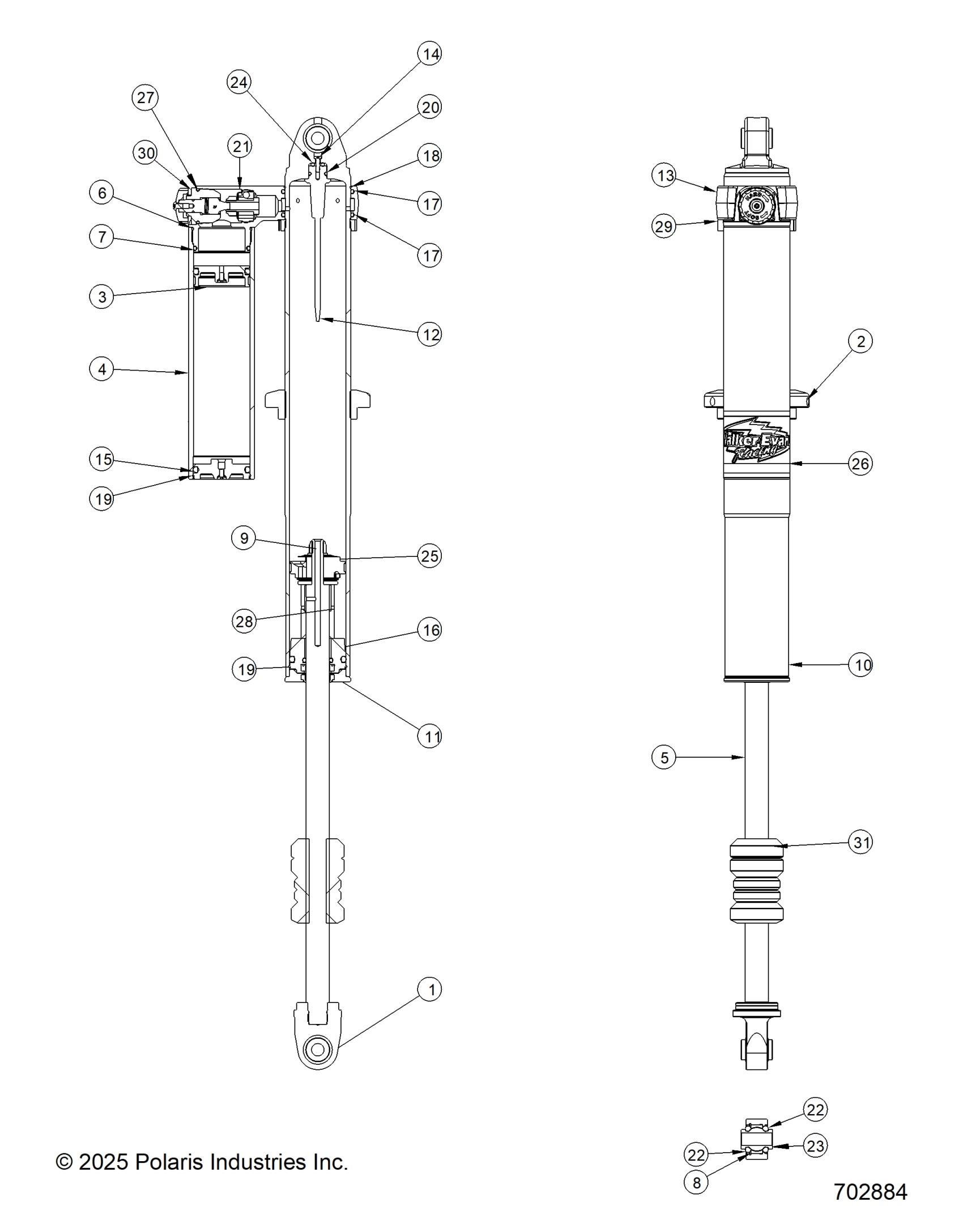

Polaris RZR XP 1000 ULTIMATE (R02) - Z25NEF99A4/A5/A5/B5 SUSPENSION, REAR SHOCK INTERNALS - Z25NEF99A4/A5/A5/B5 (702884) Diagram

#

Description
Price

-

SHOCK-REAR [INCLUDES 1-32]

7045778

$819.27

1

SHAFT LOOP, 1.0935 BORE, BRNG STEP,

-------

Unavailable

2

2.5IN SPRING NUT (CLEAR)

1800836

$96.79

3

RES, PISTON 2.5IN ASM

1800752

$164.59

4

2.5in 9.5L PB RES CAN WR (ANODIZE HARD CLEAR)

1800854

$283.99

5

SHAFT, NEEDLE .875 X 18.295L

-------

Unavailable

6

O-RING 2-033

1800613

$10.39

7

O-RING 2-225

1800500

$1.99

8

RING- RETAIN (SNAP)

1800482

$10.39

9

NUT 7/16 NYLOCK (1425112)

1800638

$4.79

10

O-RING 2-327 (VITON)

1800965

$7.91

11

NEEDLE, 1 PC PRESS IN

1800840

$51.99

12

#8-32 X .500 LOW HEAD SCREW

1800843

$4.79

13

2.5 BRIDGE, WER ADJUSTER

-------

Unavailable

14

2.5 END CAP WITH BUILT IN CHARGE PORT

1800960

$75.99

15

ASM. SEAL HEAD 2.5 X 0.875 PI

1800856

$107.99

16

O-RING 2-230

1800497

$5.59

17

2.48 X 0.0625 WIRE RING

1800846

$7.19

17

2.48 X 0.0625 WIRE RING

1800846

$7.19

18

ID RETAINING RING, 2.5"

1800847

$23.99

19

O-RING 2-112

1800095

$1.49

19

O-RING 2-112

1800095

$1.49

20

VALVE, CHECK ASSEMBLY

1800848

$61.59

21

O-RING 2-312 1000312

1800810

$3.63

22

BEARING HCOM9T-12MM

1800880

$47.99

22

BEARING HCOM9T-12MM

1800880

$47.99

23

O-RING -202

1800887

$1.59

24

O-RING -202

1800887

$1.59

25

ASM-PSTN,2.5,7045778

-------

Unavailable

26

STICKER

-------

Unavailable

27

O-RING 2-122

1800503

$1.59

28

SPACER, 2.037L

1800657

$27.99

29

2.5IN CROSSOVER RING/ JAM NUT

1800842

$39.59

30

ASM. SS RETENTION NUT (GOLD)

1800857

$111.99

31

CABLE-STARTER

-------

Unavailable
