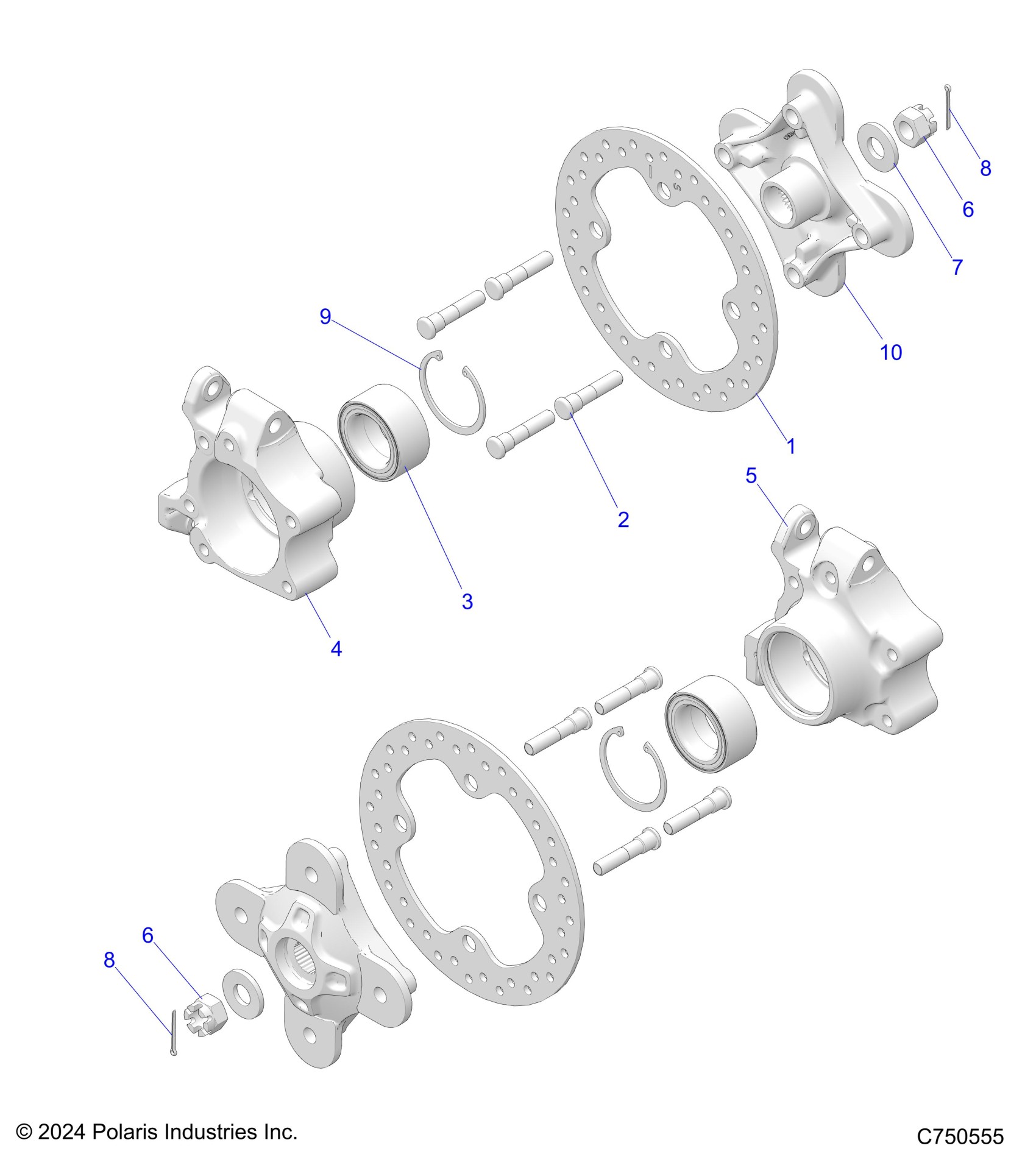

Polaris RZR XP 1000 ULTIMATE (R02) - Z25NEF99A4/A5/A5/B5 SUSPENSION, REAR CARRIER AND HUB - Z25NEF99A4/B4/A5/B5 (C750555) Diagram

#

Description

Price

1

DISC, BRAKE

5257196

$63.99

2

STUD-WHEEL,M12-1.5

7519792

$5.59

3

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

3

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

4

ASM-BEARING CARRIER,LH

1523833

$227.99

5

ASM-BEARING CARRIER,RH

1523834

$227.99

6

NUT-CASTLE-M20X1.5 ZFS

7547949

$6.39

6

NUT-CASTLE-M20X1.5 ZFS

7547949

$6.39

7

WSHR-LOAD,21X45,5-5.6

7557146

$5.59

8

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

8

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

9

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

10

ASM-HUB,DISC,STUD

1523828

$95.99
