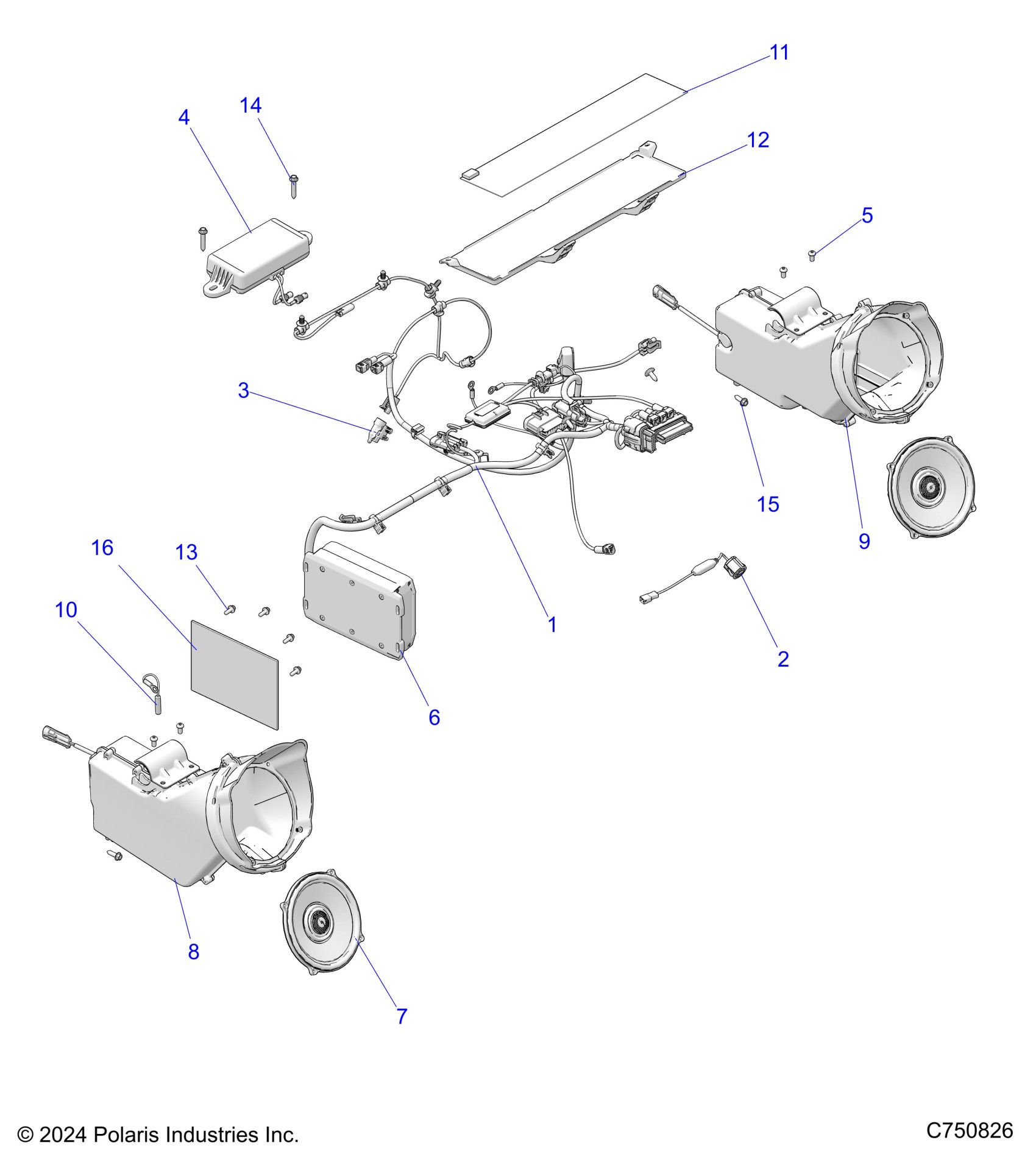

Polaris RZR XP 1000 ULTIMATE (R02) - Z25NEF99A4/A5/A5/B5 ELECTRICAL, AUDIO, RIDE COMMAND - Z25NEF99A4/B4/A5/B5 (C750827) Diagram

#

Description

Price

1

HARN-RIDE COMMAND,CAPPED

2417960

$609.99

2

CAM-IR ILLUMINATED,AMB SENSE

4081064

$232.74

3

SENSOR-GAUGE,AIR TEMP,PNL MNT

4018205

$60.70

4

ANTENNA,GPS,V2V

4019300

$119.99

5

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

6

ASM-AMP,4 CHANNEL [ORDER REF #16 5815485 WITH 2414533]

2414533

$369.99

7

ASM-COAXIAL

2414537

$184.99

8

ASM-ENCL,SPKR,FRT,LH

2415281

$369.99

9

ASM-ENCL,SPKR,FRT,RH

2415282

$369.99

10

JUMPER,AMP GROUND

4018709

$16.14

11

ANTENNA,AM-FM

4019301

$189.99

12

BRKT-MOUNT,ANTENNA

5458790

$28.32

13

SCR-HXFL-M5X0.8X14 18-8

7516603

$10.32

14

SCREW-NXFL-M6X35 ZOD HILO

7519330

$3.97

15

SCR-HXFL-M6X20 ZOD HI LO

7520055

$5.56
