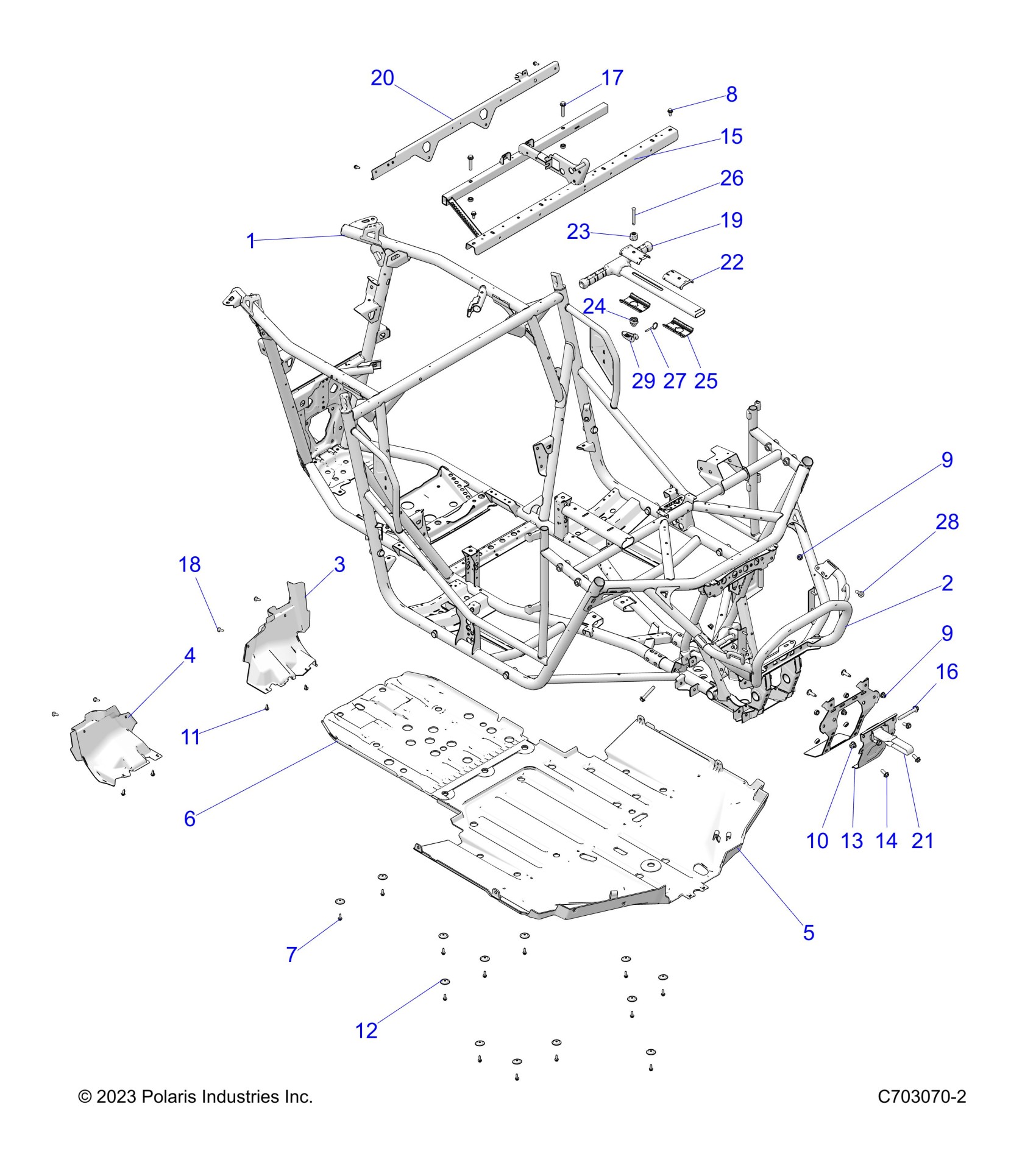

Polaris RZR XP 1000 ULTIMATE (R02) - Z25NEF99A4/A5/A5/B5 CHASSIS, MAIN FRAME AND SKID PLATES - Z25NEF99A4/B4/A5/B5 (C703070-2) Diagram

WELD-MAIN FRAME,BLK

1025390-458

$3,137.19

WELD-BULL BUMPER,LIFTED LIME [A4/B4]

1025765-801

$239.99

WELD-BULL BUMPER,ORANGEBURST [A5/B5]

1025765-647

$247.99

COVER-SCM,LH,BLK

5457593-070

$35.99

COVER-TANK,RH,BLK

5457594-070

$31.99

SKID PLATE-FRONT,BLK [TO 6/3/2024]

5459854-070

Unavailable

SKID PLATE-FRONT,BLK [FROM 6/3/2024]

5466370-070

$279.99

PLATE-SKID,REAR,BLK

5458920-070

$159.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

WASHER-SKID PLATE

7556065

$4.79

WELD-FRONT PLATE,BLK [TO 08/09/2024]

1026392-458

$83.99

WELD-FRONT PLATE,BLK [FROM 8/9/2024]

1029073-458

$83.99

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.79

WELD-SEAT BASE,FRT,BLK

1026956-329

$195.99

SCR-HXFL-M12X1.75X9010.9 ZFB [FROM 9/23/2024]

7521334-90

$2.39

SCR-SHXFL-M12X1.75X90 10.9 ZPC [TO 9/23/2024]

7518705

$8.79

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

ASM-GRAB BAR

2637771

$83.99

BRKT-CLOSE OFF SUPPORT,ECOAT

5272355-329

$91.99

ASM-TOW STRAP

2691649

$19.99

BUSHING-GRAB BAR,UPPER

5457427

$4.79

NUT-GRAB BAR

5457511

$7.19

CAP,GRAB BAR LEVER

5457512

$4.79

BUSHING-GRAB BAR,LOWER

5457891

$4.79

ROD-GRAB BAR THREADED

7521309

$7.19

PIN-GRAB BAR

7663047

$7.99

SCR-M10X1.5X65 8.8 HX/FL ZOD

7518960

$3.19

LEVER,GRAB BAR

5459039

$3.19
