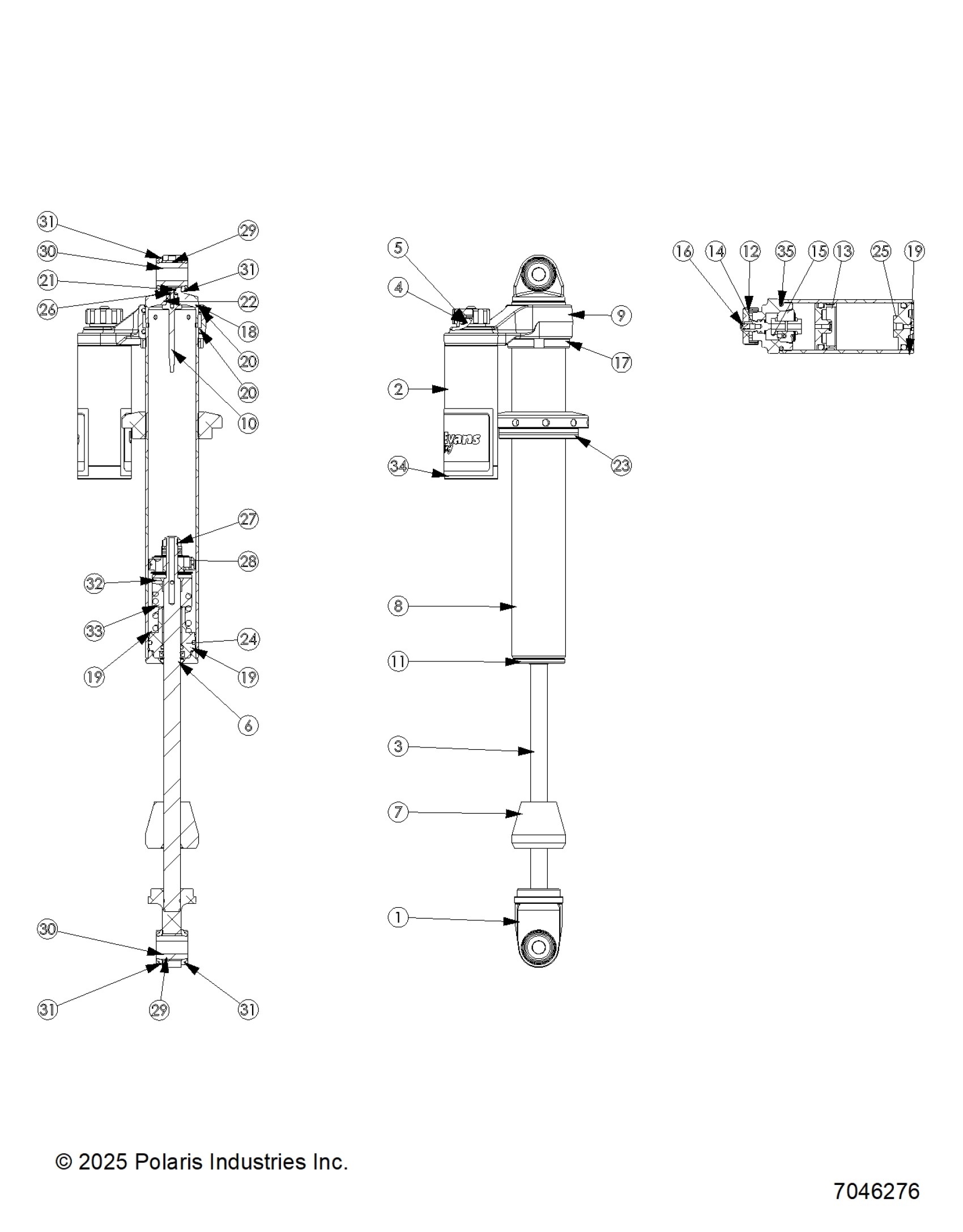

Polaris RZR XP 1000 ULTIMATE (R01) - Z26NET99A4/B4/A6/B6 SUSPENSION, FRONT SHOCK INTERNALS - Z26NET99A4/B4/A6/B6 (7046276) Diagram

#

Description
Price

-

SHOCK-FRONT,2P,LH [INCLUDES 1-35]

7046276

$799.99

-

SHOCK-FRONT,2P,RH [INCLUDES 1-35]

7046277

$799.99

1

SHAFTLOOP .625THD 2.18"L 1" BORE

1801269

Unavailable

2

RES BODY, 2.0", 5.0L, WIRE RING

----

Unavailable

3

NEEDLE SHAFT, .625 X 13.500L

----

Unavailable

4

BALL, DETENT 3/16"

1800127

$6.46

5

SPRING-COMP .025X.3, 40.5#

1800128

$11.32

6

WIPER, 5/8" D/TYPE- BLK

1800034

$36.41

7

Bump Stop, MCU, 2.00Dia x 1.75L (ISC 140174-N)

1800859

$82.29

8

SHOCK BODY - 2.0 X 15.025L IE

----

Unavailable

9

BRIDGE, WIDE 2.0 WER ADJUSTER (CLEAR)

1800921

$164.99

10

NEEDLE,1PC, PRESS IN

----

Unavailable

11

CAP, WIPER 2.0 PRESS IN (CLEAR ANODIZE)

1800794

$54.99

12

KNOB,CLICKER BLK (1000604)

1800418

$63.24

13

IFP PISTON ASM 1.750, W-BLEED (HARD CLEAR)

----

Unavailable

14

ASM-CLICKER STUD 404613

1800758

$29.99

15

ASM. CLICKER PISTON

----

Unavailable

16

SCREW, 10X5/8 BTN SS (500603)

1800357

$2.19

17

JAMB NUT, 2.0IN ACME (CLEAR)

1800868

$52.37

18

RING-RETAINING 1520119

1800862

$6.35

19

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$8.08

19

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$8.08

19

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$8.08

20

O-RING, 2-226 1600018

1800863

$4.76

20

O-RING, 2-226 1600018

1800863

$4.76

21

#8-32 X .500 LOW HEAD SCREW

1800843

$4.76

22

O-RING, 2-108 1600026

1800864

$4.76

23

SPRING NUT-2" CLEAR 1620014-AC

1800865

$49.99

24

SEAL HEAD ASM. 2.0 X .625, HNBR

----

Unavailable

25

2.0 END CAP ASM,WR,PORT

1801044

$89.99

26

5MM ID X 2MM THK. O-RING

1800891

$1.60

27

NUT-FLEXTOP,THIN,7/16-20

----

Unavailable

28

PISTON ASSEMBLY

----

Unavailable

29

SHAFT BUSHING, .875

1800643

$44.99

29

SHAFT BUSHING, .875

1800643

$44.99

30

AXEL .875 X 1.181 X 10MM

----

Unavailable

30

AXEL .875 X 1.181 X 10MM

----

Unavailable

31

PIVOT SEAL

1801040

Unavailable

31

PIVOT SEAL

1801040

Unavailable

31

PIVOT SEAL

1801040

Unavailable

31

PIVOT SEAL

1801040

Unavailable

32

SHAFT SPACER, .6251D X I .970L

----

Unavailable

33

SHIM, 5/8 X .015 X 1.450

----

Unavailable

34

STICKER

----

Unavailable

35

O-RING BODY LOOP

1800030

$1.37
