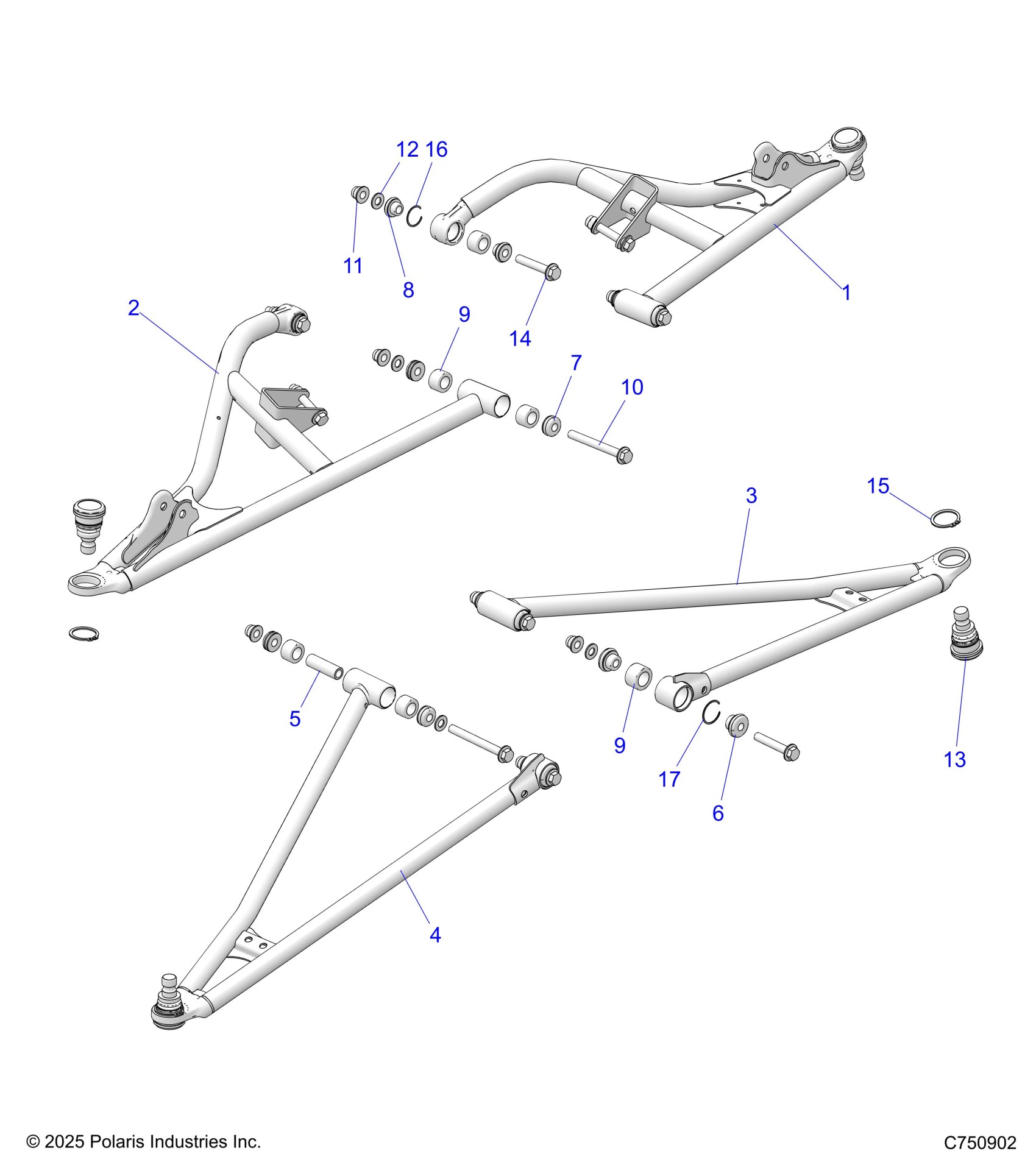

Polaris RZR XP 1000 ULTIMATE (R01) - Z26NET99A4/B4/A6/B6 SUSPENSION, FRONT CONTROL ARMS - Z26NET99A4/B4/A6/B6 (C750902) Diagram

ASM-CTRL ARM,UPR,FR,LH,BLK

1545228-458

Unavailable

ASM-CTRL ARM,UPR,FR,RH,BLK

1545229-458

Unavailable

ASM-CTRL ARM,LWR,FR,LH,BLK

1545232-458

Unavailable

ASM-CTRL ARM,LWR,FR,RH,BLK

1545233-458

Unavailable

SHAFT-PIVOT,SHORT,M12

5144660

$8.79

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

ASM-PIVOT CAP,SEALED,M12,MINI

1543998

$12.79

ASM-PIVOT CAP,SEALED,SLIM,M10

1543735

$13.59

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

BALL-JOINT,HARDENED,HI-MISALGN

7082892

$47.99

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

RING-RTG,DSH-33ST

7710716

$7.19

28MM SPIRAL RING,STEEL

7710845

$3.59

30MM SPIRAL RING,STEEL

7710869

$3.99
