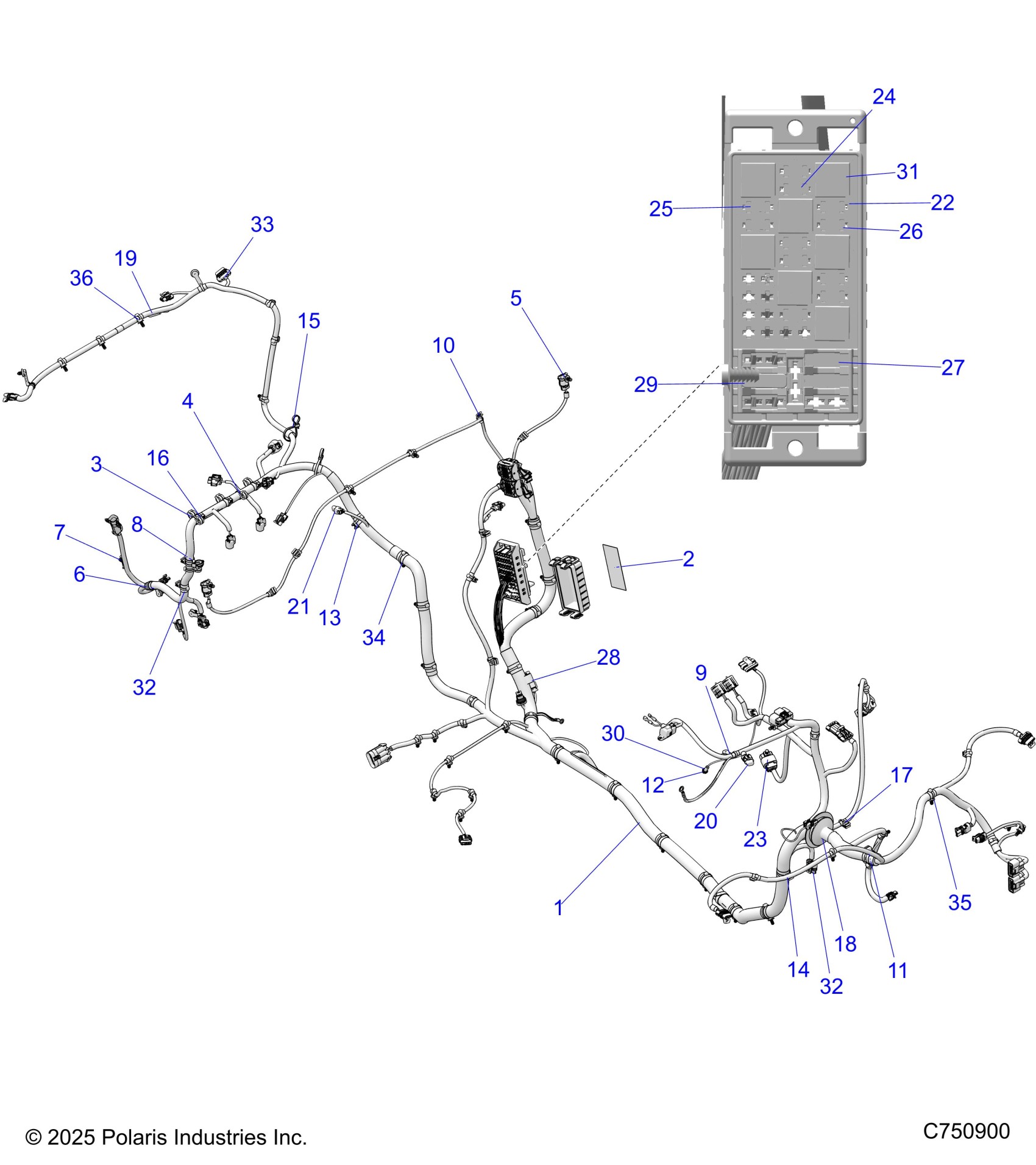

Polaris RZR XP 1000 ULTIMATE (R01) - Z26NET99A4/B4/A6/B6 ELECTRICAL, WIRE HARNESS - Z26NET99A4/B4/A6/B6 (C750900) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,MULTI-T,2P [INCL. ALL][FROM 1.1.2026]

2418675

Unavailable

2

COVER-PDM,ENCORE

4082775

Unavailable

3

CLIP-XMAS,OMEGA, CABLE/11-15MM

7082750

$3.19

4

CLIP-OMEGA,CABLE,4-10MM DIA

7082744

$2.39

5

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

6

CLIP OFFSET 12.5MM FIRTREE(BK)

7082458

$4.39

7

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

8

CLIP-OMEGA,CABLE/10-14MM DIA

7082407

$3.99

9

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.99

10

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

11

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

12

CLIP - ROUTING, DIN BOX

7082020

$5.59

13

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

14

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

15

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

16

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

17

CLIP, EDGE, HARNESS

7081890

$10.39

18

GROMMET - 65 MM, BLK

5813954

$7.19

19

CAP - VINYL, 125X375, BLACK

5438230

$5.59

20

COVER-TYCO, TP

4018140

$7.99

21

CAP EVAP CONNECTOR

4018066

$3.99

22

FUSE-15AMP,MINI BLADE

4010859

$7.19

23

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

24

FUSE-5A,MINI BLADE

4011652

Unavailable

25

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

26

FUSE-IGNITION,10 AMP

2434016

$4.79

27

FUSE, ATC 40 AMP

4012421

$31.99

28

DIODE-2 AMP

2415626

$14.39

29

BREAKER-CIRCUIT,T2,20A,ATO

4080192

$7.99

30

LED - PANEL MNT, 12V, BLUE

2413217

$51.99

31

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

32

CLIP-FIR,HOLE6.35MM

7082134

$3.99

32

CLIP-FIR,HOLE6.35MM

7082134

$3.99

33

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

34

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

35

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.99

36

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79
